| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T108MHZQESWITCH TOGGLE SPDT 2A 120V |
4,643 |
|
Datasheet |
T | Tray | Active | Panel Mount | SPDT | 2A (AC/DC) | 120 V | 28 V | On-Mom | Standard Round | 5.44mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2021BB1W01-AT402SSWITCH TOGGLE DPST 6A 125V |
1,565 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2012B2B1A01-AT4181BUSHING MOUNT MINIATURE TOGGLE |
1,382 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2012B2B1A01/U-AT4181BUSHING MOUNT MINIATURE TOGGLE |
3,762 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|

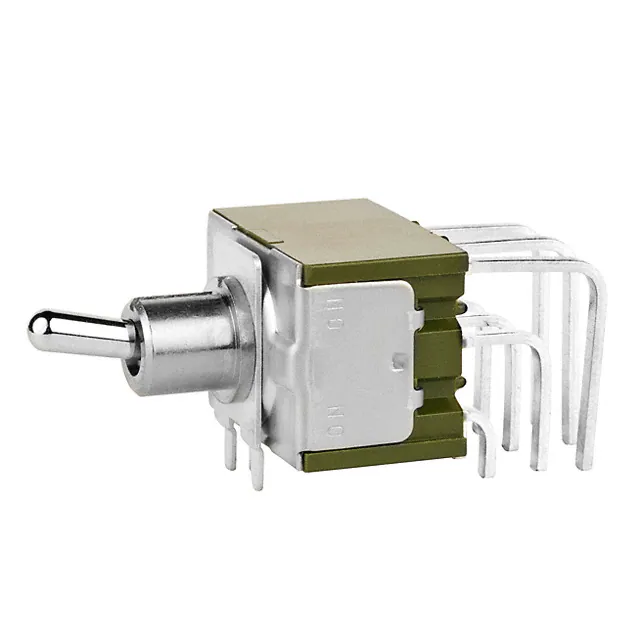

M2032S2A2W40SWITCH TOGGLE 3PDT 6A 125V |
3,316 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle, Vertical | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2028SS1W03-BASWITCH TOGGLE DPDT 6A 125V |
3,417 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
|
M2028SS1W03-CASWITCH TOGGLE DPDT 6A 125V |
2,998 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
7201P4D9V6BESWITCH TOGGLE DPDT 0.4VA 20V |
1,528 |
|
Datasheet |
7000 | Tray | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flat Anti-Rotation | 8.13mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

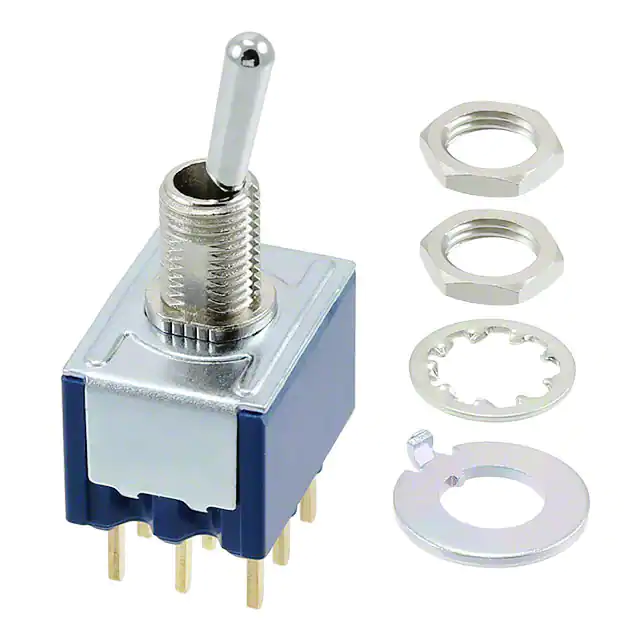

8A3012C-ZSWITCH TOGGLE 3PDT 25MA 20V |
2,766 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | 3PDT | 25mA (DC) | - | 20 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -30°C ~ 85°C |
|
|
D22028HSWITCH TOGGLE DPDT 0.4VA 48V |
3,389 |
|
Datasheet |
D2 | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 48 V | 48 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -10°C ~ 70°C |
|
|
34A3P12B4M6RTSWITCH TOGGLE 3PDT 0.4VA 20V |
1,694 |
|
Datasheet |
34A | Bulk | Active | Through Hole, Right Angle | 3PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
M2042SS1W45SWITCH TOGGLE 4PDT 6A 125V |
1,303 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2015BB1W03-AT402SSWITCH TOGGLE SPDT 6A 125V |
4,432 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 11.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2013BB1G03-AT402SSWITCH TOGGLE SPDT 0.4VA 28V |
1,255 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
M2026SS1W01SWITCH TOGGLE SP3T 6A 125V |
3,978 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2023LL1A01SWITCH TOGGLE DPDT 6A 125V |
3,125 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2023ES1W01/3SWITCH TOGGLE DPDT 6A 125V |
1,664 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Actuator | -30°C ~ 85°C |
|

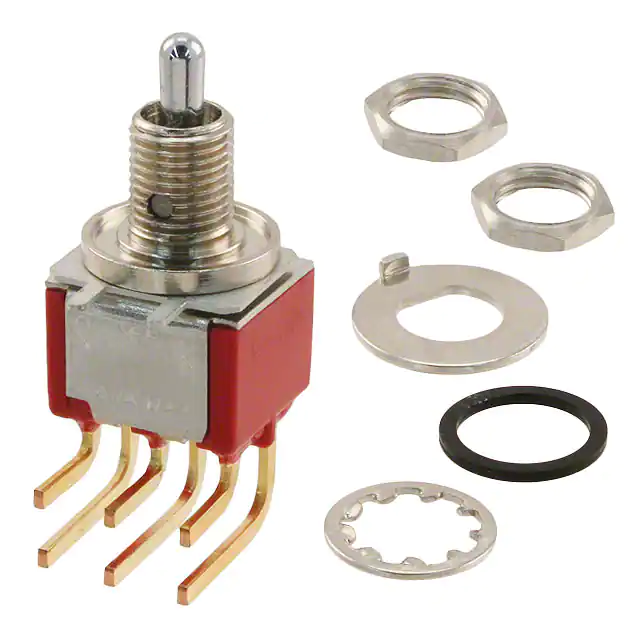

7203MPCWABESWITCH TOGGLE DPDT 0.4VA 20V |
1,313 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Anti-Rotation | 5.08mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
DK285-73XNZ2SWITCH TOGGLE DPST 16A 125V |
3,266 |
|
Datasheet |
DK | Bulk | Active | Panel Mount | DPST | 16A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Wire Leads | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
M2027SS1W01-BCBUSHING MOUNT MINIATURE TOGGLE |
100 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-Mom | Standard Round with Cap | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | - | Circular - 6.50mm Dia | Red Cap | -30°C ~ 85°C |
