| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2013ES1G40SWITCH TOGGLE SPDT 0.4VA 28V |
1,788 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ADP25B1M1GTSWITCH TOGGLE DPDT 5A 125V |
3,889 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | On-Mom | Standard Round | 21.32mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
7101L41YZQE3SWITCH TOGGLE SPDT 5A 120V |
1,878 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 13.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Red Actuator | -30°C ~ 85°C |
|
|
34BW3P12B4M7QTSWITCH TOGGLE 3PDT 5A 125V |
4,916 |
|
Datasheet |
34B | Bulk | Active | Through Hole, Right Angle, Vertical | 3PDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 7.60mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012LL3A01SWITCH TOGGLE SPDT 6A 125V |
1,965 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

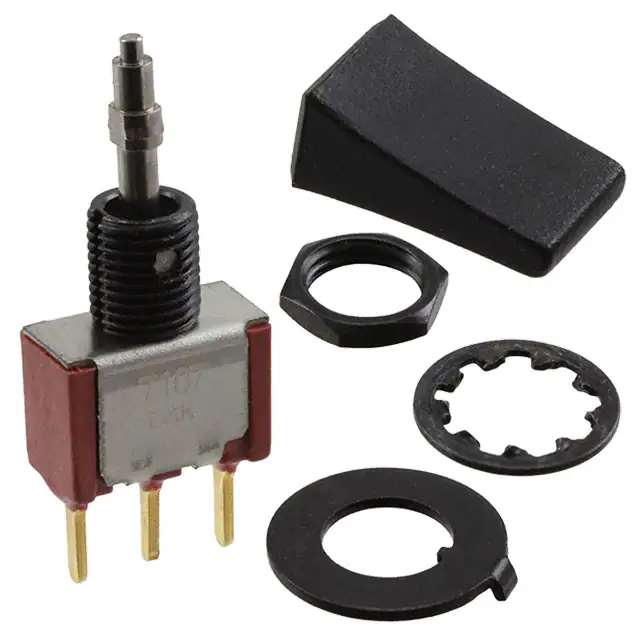

7107L41DCBE22SWITCH TOGGLE SPDT 0.4VA 20V |
4,498 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Flat Anti-Rotation | 13.49mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Black Actuator | -30°C ~ 85°C |
|

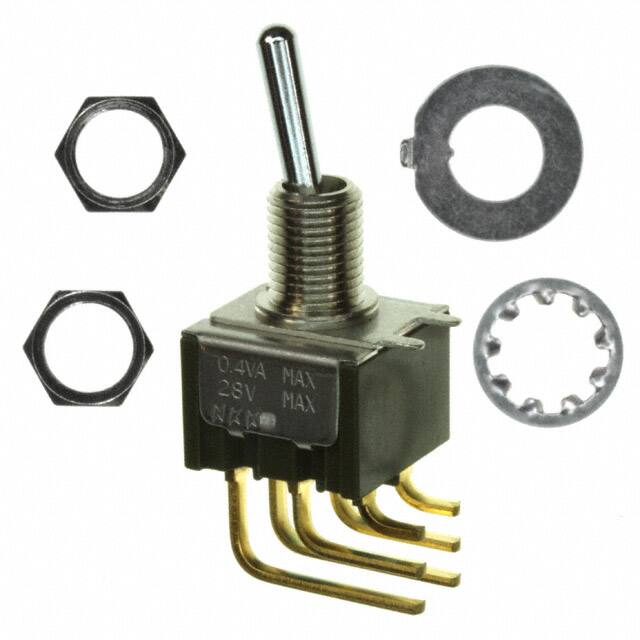

M2022SS1G45SWITCH TOGGLE DPDT 0.4VA 28V |
4,216 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
D22022HSWITCH TOGGLE DPDT 0.4VA 48V |
3,912 |
|
Datasheet |
D2 | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 48 V | 48 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -10°C ~ 70°C |
|
|
M2012BB1W03-AT402SSWITCH TOGGLE SPDT 6A 125V |
3,813 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
7205L2HCBESWITCH TOGGLE DPDT 0.4VA 20V |
2,332 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 13.97mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2023SS4W07SWITCH TOGGLE DPDT 6A 125V |
3,218 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Wire Wrap | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

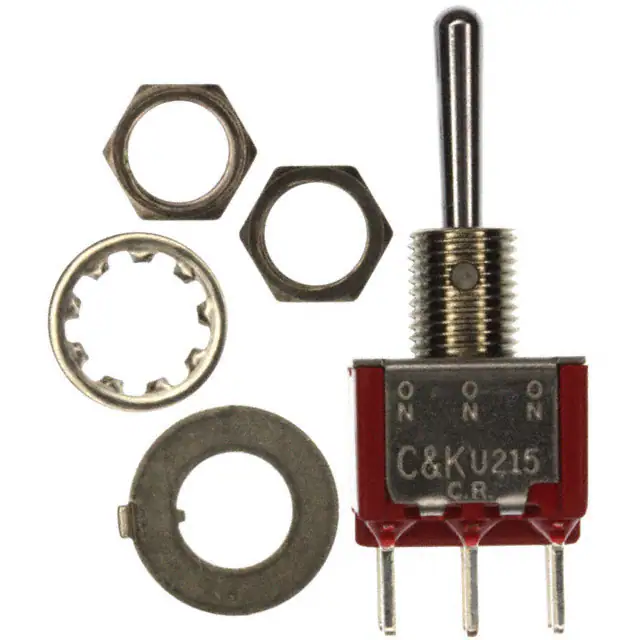

U215SPDCQESWITCH TOGGLE SP3T 5A 120V |
4,168 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | Mom-On-Mom | Anti-Rotation | 12.45mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2024SS1W13BRACKET PC MOUNT MINIATURE TOGGL |
2,136 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | - | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
P2011ZSWITCH TOGGLE SPST 10A 125V |
4,097 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | SPST | 10A (AC) | 125 V | - | On-Off | Standard Round with Cap | 13.00mm | Non-Illuminated | - | - | - | Quick Connect - 0.187" (4.7mm) | M6 x 0.75 | Circular - 6.35mm Dia | White Cap | -10°C ~ 85°C |
|

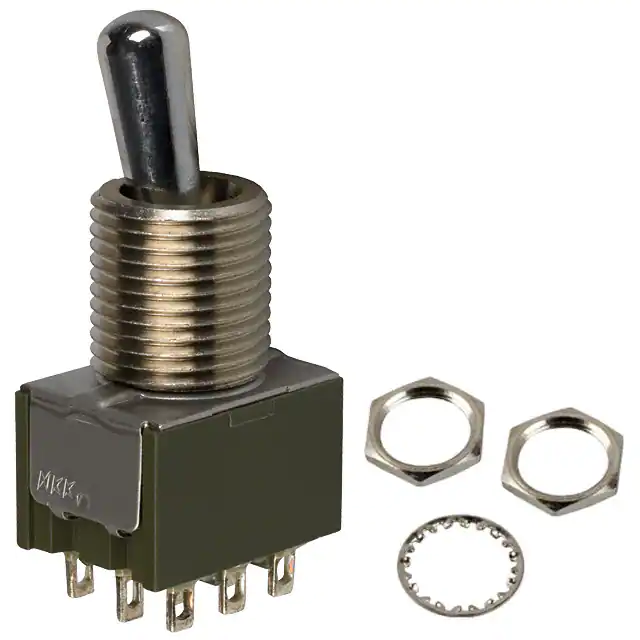

M2032BB1W01SWITCH TOGGLE 3PDT 6A 125V |
1,465 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

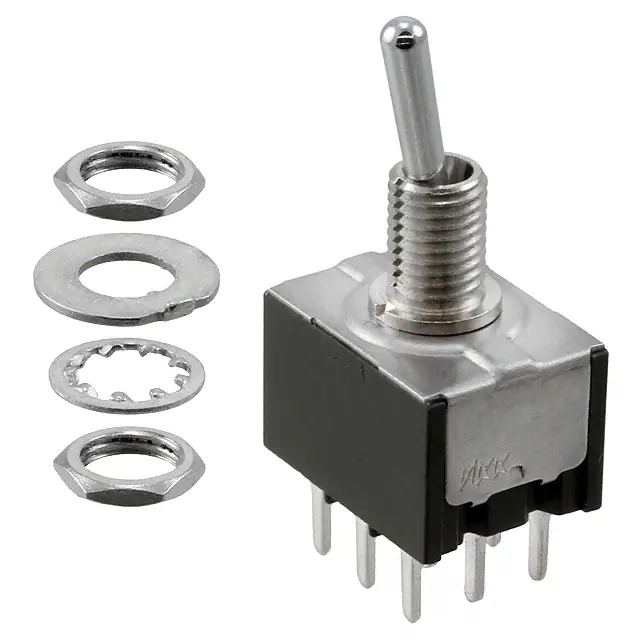

M2032SS4W03SWITCH TOGGLE 3PDT 6A 125V |
4,129 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
D22012LBSWITCH TOGGLE SPDT 0.4VA 48V |
1,831 |
|
Datasheet |
D2 | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 48 V | 48 V | On-On | Locking Lever | 19.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -10°C ~ 70°C |
|

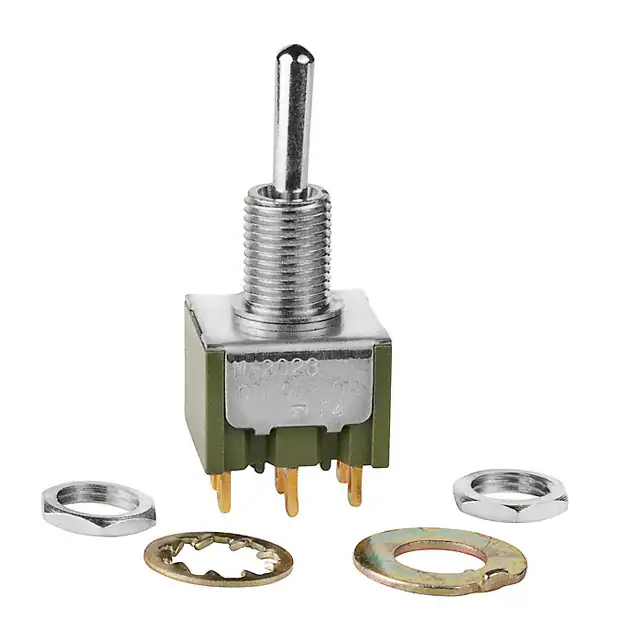

M2023SS1G01SWITCH TOGGLE DPDT 0.4VA 28V |
4,658 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2033SS1W01SWITCH TOGGLE 3PDT 6A 125V |
3,025 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

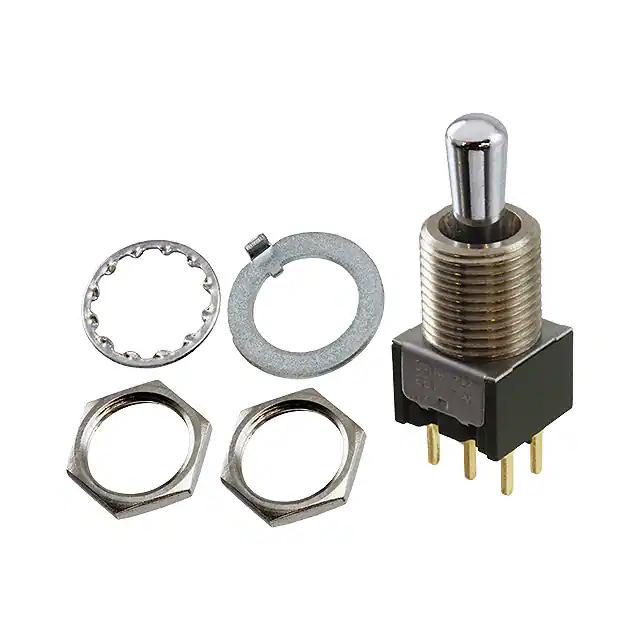

M2024BB1G03SWITCH TOGGLE SP3T 0.4VA 28V |
1,702 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | On-On-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
