| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

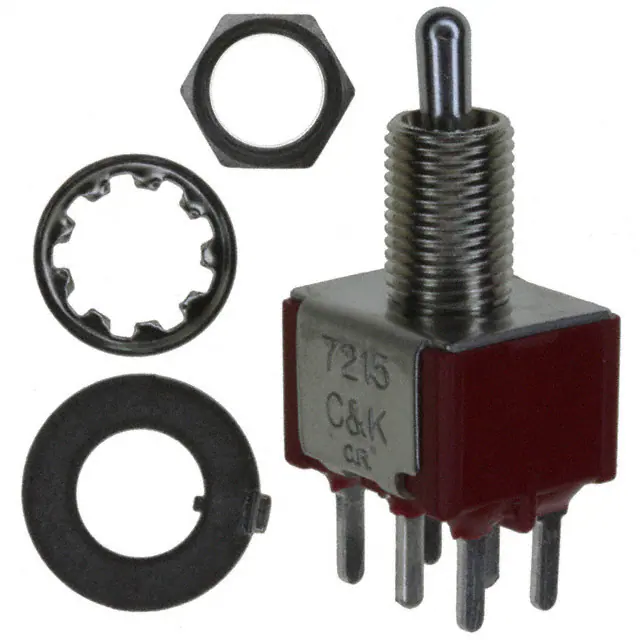

7215MYCQESWITCH TOGGLE SP3T 5A 120V |
4,096 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | Mom-On-Mom | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2024S3A1W06SWITCH TOGGLE SP3T 6A 125V |
1,499 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-On | Standard Round | 8.28mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2012LL3W01-ASWITCH TOGGLE SPDT 6A 125V |
1,654 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
M2026ES1W01SWITCH TOGGLE SP3T 6A 125V |
2,891 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-On-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2032S3S1W01SWITCH TOGGLE 3PDT 6A 125V |
4,730 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012SA2G40-BASWITCH TOGGLE SPDT 0.4VA 28V |
1,153 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round with Cap | 12.28mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|

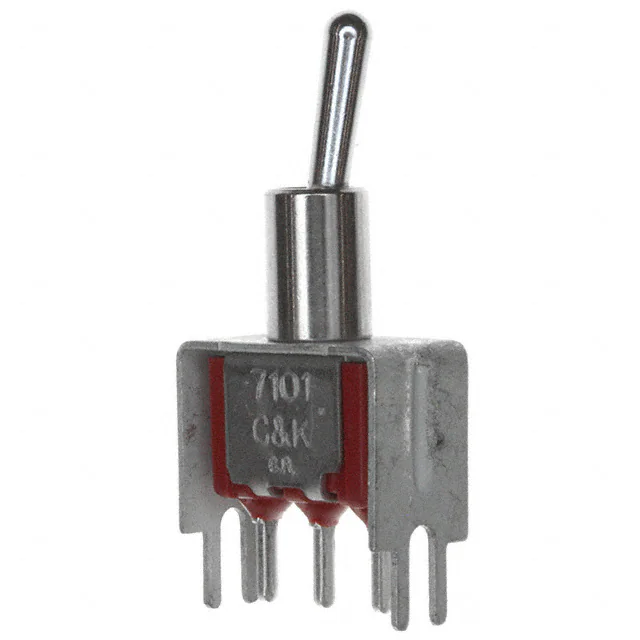

7101SY9V3QESWITCH TOGGLE SPDT 5A 120V |
2,648 |
|
Datasheet |
7000 | Tray | Active | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
A29KWSWITCH TOGGLE DPDT 0.4VA 28V |
3,997 |
|
Datasheet |
A | Tube | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Lever for Cap | 5.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
M2026BB1W01SWITCH TOGGLE SP3T 6A 125V |
1,562 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-On-Mom | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

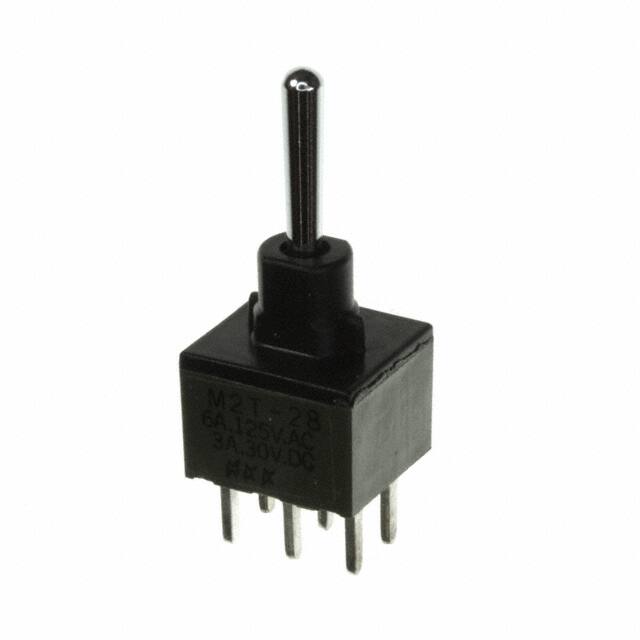

M2T28SA5W03SWITCH TOGGLE DPDT 6A 125V |
2,488 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T25SA5W03SWITCH TOGGLE DPDT 0.4VA 28V |
3,451 |
|
Datasheet |
M2 | Tray | Obsolete | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2024ES1G01SWITCH TOGGLE SP3T 0.4VA 28V |
1,326 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | On-On-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

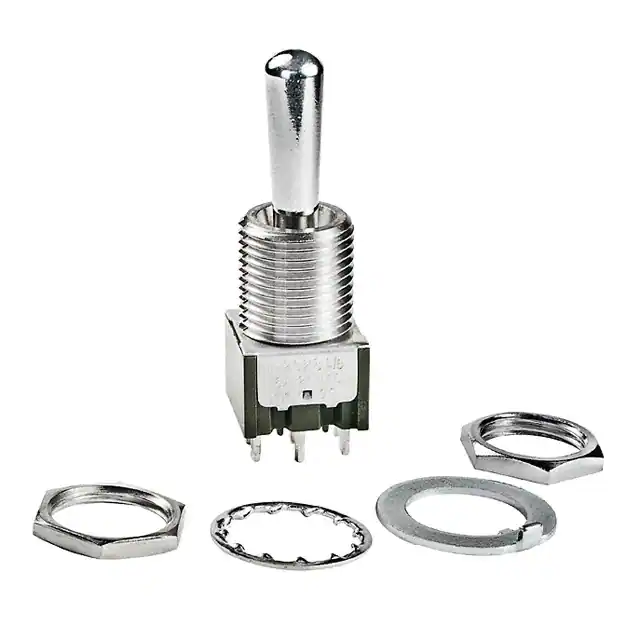

M2028B2B1W01SWITCH TOGGLE DPDT 6A 125V |
4,789 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMDP15B2M6RTSWITCH TOGGLE DPDT 0.4VA 20V |
4,594 |
|
Datasheet |
34C | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 7.88mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101L2PD9V4GESWITCH TOGGLE SPDT 5A 120V |
3,603 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Anti-Rotation | 15.75mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022SS1G01SWITCH TOGGLE DPDT 0.4VA 28V |
2,096 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A24ABSWITCH TOGGLE SP3T 0.4VA 28V |
3,235 |
|
Datasheet |
A | Bulk | Active | Through Hole | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | On-On-On | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2011LL1W01-ASWITCH TOGGLE SPST 6A 125V |
4,365 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
|
5646ADB16SWITCH TOGGLE DPDT 6A 125V |
3,122 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 5.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
M2022S2A2G30SWITCH TOGGLE DPDT 0.4VA 28V |
2,810 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
