| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7201P3YAV2BESSWITCH TOGGLE DPDT 0.4VA 20V |
2,796 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Satin Chrome Actuator | -30°C ~ 85°C |
|
7215SHCQESWITCH TOGGLE SP3T 5A 120V |
3,294 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | Mom-On-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2042ES1W01SWITCH TOGGLE 4PDT 6A 125V |
3,006 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022SS1W07SWITCH TOGGLE DPDT 6A 125V |
1,644 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2035SS1W01SWITCH TOGGLE 3PDT 6A 125V |
2,200 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
8E2061-ZSWITCH TOGGLE DPDT 6A 125V |
3,148 |
|
Datasheet |
8E | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Mom | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -30°C ~ 85°C |
|
M2013LL1G01-CSWITCH TOGGLE SPDT 0.4VA 28V |
2,505 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Red Cap | -30°C ~ 85°C |
|
|
A24EVSWITCH TOGGLE SP3T 0.4VA 28V |
1,071 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | On-On-On | Flatted | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2033LL1W01SWITCH TOGGLE 3PDT 6A 125V |
1,753 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2018BB1W01-RESWITCH TOGGLE SPDT 6A 125V |
4,554 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round with Cap | 12.30mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Yellow Cap | -30°C ~ 85°C |
|
|
M2018BB1G01MINIATURE TOGGLE/MULTI-FUNCTION |
2,228 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103MD9V4BESWITCH TOGGLE SPDT 0.4VA 20V |
3,036 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2024SA2G40SWITCH TOGGLE SP3T 0.4VA 28V |
2,384 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle, Vertical | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | On-On-On | Standard Round | 12.28mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
ET125A-ZSWITCH TOGGLE SPST 25A 125V |
1,345 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | SPST | 25A (AC) | 125 V | - | On-Off | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
2MT1-5SWITCH TOGGLE DPDT 5A 28V |
3,670 |
|
Datasheet |
MT | Bulk | Obsolete | Panel Mount | DPDT | 5A (DC) | - | 28 V | On-Off-Mom | Standard Round | 16.87mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder, Quick Connect - 0.110" (2.8mm) | 15/32-32 | Circular - 12.45mm Dia | - | -40°C ~ 85°C |
|
E108SYZQESWITCH TOGGLE SPDT 7.5A 125V |
4,770 |
|
Datasheet |
E | Bulk | Active | Panel Mount | SPDT | 7.5A (AC/DC) | 125 V | 28 V | On-Mom | Standard Round | 10.16mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2028LL1W03SWITCH TOGGLE DPDT 6A 125V |
3,256 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2023SS4W03SWITCH TOGGLE DPDT 6A 125V |
4,510 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

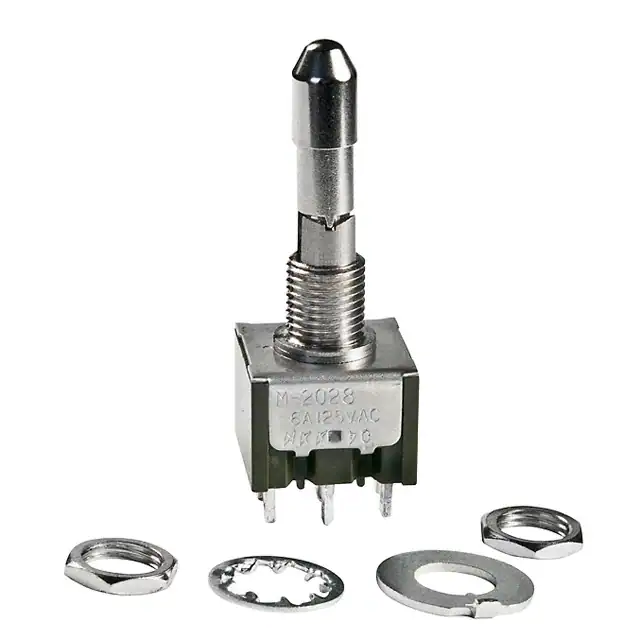

M2028LL1W01SWITCH TOGGLE DPDT 6A 125V |
1,651 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2021LL3G01SWITCH TOGGLE DPST 0.4VA 28V |
1,422 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Locking Lever | 16.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
