| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7101MYAV2QESWITCH TOGGLE SPDT 5A 120V |
2,024 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET205P12-ZSWITCH TOGGLE DPDT 5A 125V |
4,918 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPDT | 5A (AC) | 125 V | - | On-Off-On | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
M2019SD3W01-BBSWITCH TOGGLE SPDT 6A 125V |
4,721 |
|
Datasheet |
M | Box | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | White Cap | -30°C ~ 85°C |
|
|
M2019SD3W01-BABUSHING MOUNT MINIATURE TOGGLE |
4,480 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round with Cap | 10.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | - | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
8F2041-ZSWITCH TOGGLE DPDT 6A 125V |
3,118 |
|
Datasheet |
8F | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | Splash Proof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
M2013LL1G01SWITCH TOGGLE SPDT 0.4VA 28V |
2,246 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
SF36S011100SWITCH TOGGLE SPDT 5A 125V |
4,371 |
|
Datasheet |
SF | Bulk | Active | Panel Mount | SPDT | 5A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Insulated Lever | -20°C ~ 85°C |
|

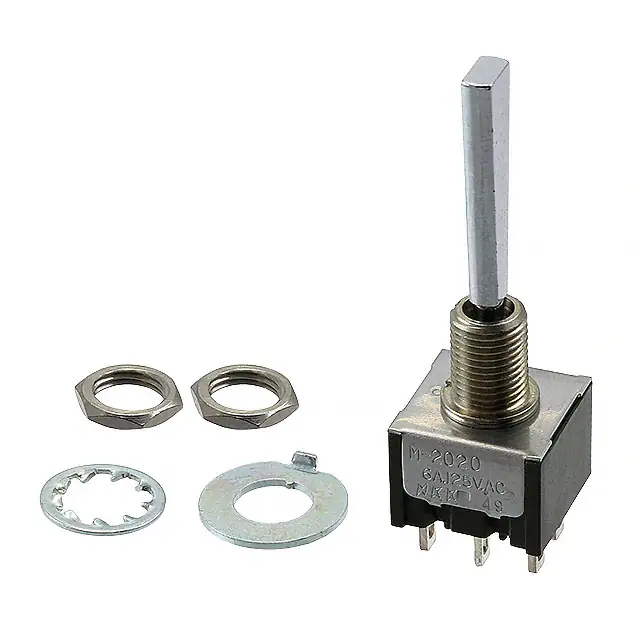

M2024E4S1W01SWITCH TOGGLE SP3T 6A 125V |
3,140 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-On | Flatted | 21.30mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2027ES1W01SWITCH TOGGLE SP3T 6A 125V |
4,348 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2025B2B3W01SWITCH TOGGLE DPDT 6A 125V |
1,126 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
G3T23ABSWITCH TOGGLE DPDT 0.4VA 28V |
3,515 |
|
Datasheet |
G3T | Bulk | Active | Surface Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 3.81mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
A28AP-GASWITCH TOGGLE DPDT 0.4VA 28V |
1,196 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Black Cap | -30°C ~ 85°C |
|
|
A28AP-GBSWITCH TOGGLE DPDT 0.4VA 28V |
2,437 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | White Cap | -30°C ~ 85°C |
|
A28AHSWITCH TOGGLE DPDT 0.4VA 28V |
3,596 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
34ADP15B7M7QTSWITCH TOGGLE DPDT 5A 125V |
1,671 |
|
Datasheet |
34A | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 21.32mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
M2018ES1G01/5SWITCH TOGGLE SPDT 0.4VA 28V |
4,569 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Dull Finish Actuator | -30°C ~ 85°C |
|
M2019SS2G13SWITCH TOGGLE SPDT 0.4VA 28V |
4,832 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101MY9AV2BESWITCH TOGGLE SPDT 0.4VA 20V |
3,350 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A28AVSWITCH TOGGLE DPDT 0.4VA 28V |
1,453 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
M2012B2B1A01SWITCH TOGGLE SPDT 6A 125V |
3,236 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
