| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
34ADP3LM1QTSWITCH TOGGLE DPDT 5A 125V |
3,908 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Locking Lever | 16.26mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
M2029B2B1W03SWITCH TOGGLE DPDT 6A 125V |
2,730 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2013SS1W30-BASWITCH TOGGLE SPDT 6A 125V |
3,046 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
|
M2013SS1W30-BBANGLE PC MOUNT MINIATURE TOGGLE |
3,294 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Right Angle | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round with Cap | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
M2013SS2G45SWITCH TOGGLE SPDT 0.4VA 28V |
1,639 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B12JJPDSWITCH TOGGLE SPDT 0.4VA 28V |
4,929 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.30mm | Illuminated | LED, Amber | 2 VDC | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
|
|
34ADP21B1M1QTSWITCH TOGGLE DPDT 5A 125V |
3,456 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | On-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
M2025ES1W03SWITCH TOGGLE DPDT 6A 125V |
3,005 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B28EBSWITCH TOGGLE DPDT 0.4VA 28V |
1,494 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Flatted | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B25KV-ACSWITCH TOGGLE DPDT 0.4VA 28V |
4,101 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Red Actuator | -30°C ~ 85°C |
|
|
B25KH-ACSWITCH TOGGLE DPDT 0.4VA 28V |
3,025 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Red Actuator | -30°C ~ 85°C |
|
5232ZABSWITCH TOGGLE SPDT 6A 125V |
1,821 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.062" (1.5mm) | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
M2018SS4G01SWITCH TOGGLE SPDT 0.4VA 28V |
3,031 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
D22019HSWITCH TOGGLE SPDT 0.4VA 48V |
4,692 |
|
Datasheet |
D2 | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 48 V | 48 V | On-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -10°C ~ 70°C |
|
|
A23HVSWITCH TOGGLE DPDT 0.4VA 28V |
1,367 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Flatted | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
A23EHSWITCH TOGGLE DPDT 0.4VA 28V |
3,762 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Flatted | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
M2018SS2G30SWITCH TOGGLE SPDT 0.4VA 28V |
4,889 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

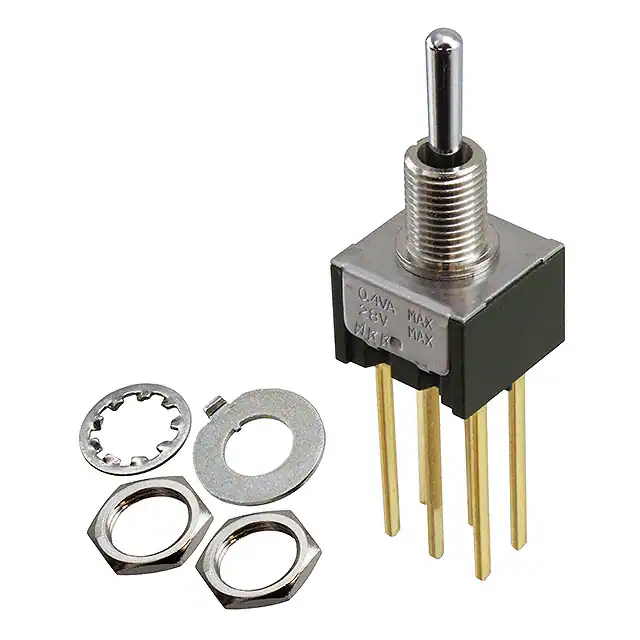

M2028SS1G06SWITCH TOGGLE DPDT 0.4VA 28V |
1,687 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
G28APSWITCH TOGGLE DPDT 0.4VA 28V |
1,460 |
|
Datasheet |
G | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
|
G3T23APSWITCH TOGGLE DPDT 0.4VA 28V |
1,708 |
|
Datasheet |
G3T | Bulk | Active | Surface Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 3.81mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
