| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2028BB1W03-RASWITCH TOGGLE DPDT 6A 125V |
2,181 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round with Cap | 12.30mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | Black Cap | -30°C ~ 85°C |
|
|
M2011BB1A01-AT402SBUSHING MOUNT MINIATURE TOGGLE |
1,802 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|

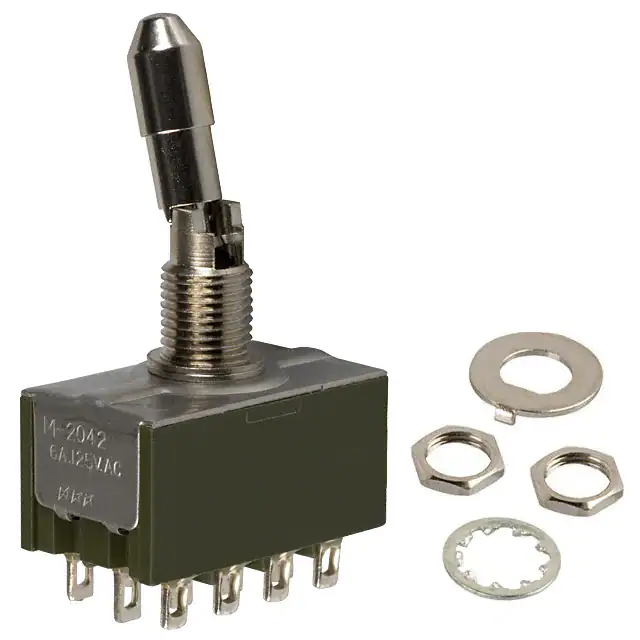

M2042LL1W01SWITCH TOGGLE 4PDT 6A 125V |
1,077 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2023BB1W01-RA-AT402SSWITCH TOGGLE DPDT 6A 125V |
2,949 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round with Cap | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2028SS2G13-BCSWITCH TOGGLE DPDT 0.4VA 28V |
4,316 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Red Cap | -30°C ~ 85°C |
|

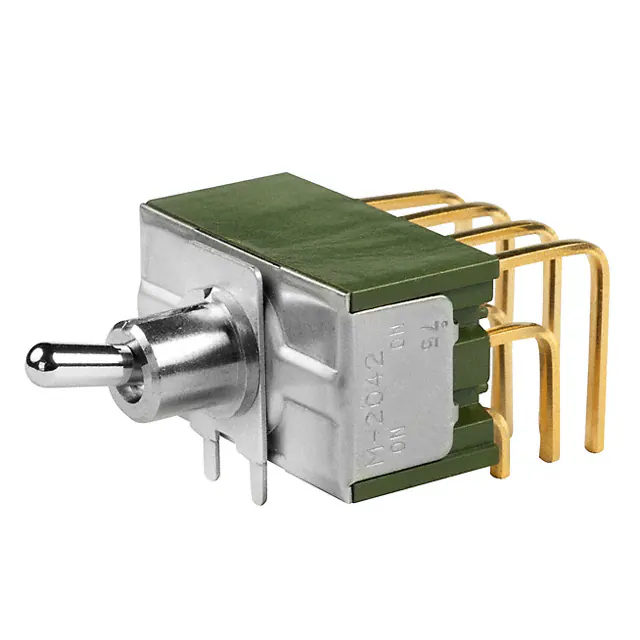

M2042S2A2G40SWITCH TOGGLE 4PDT 0.4VA 28V |
2,633 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle, Vertical | 4PDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022LL3W03-ASWITCH TOGGLE DPDT 6A 125V |
1,056 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
|
M2013SS2G23SWITCH TOGGLE SPDT 0.4VA 28V |
1,470 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
S335/USWITCH TOGGLE DPDT 15A 125V |
3,319 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
M2112TCW01/USWITCH TOGGLE SPDT 6A 125V |
4,299 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-On | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
7108K12ZGESWITCH TOGGLE SPDT 5A 120V |
4,295 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Locking Lever | 18.59mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
GT21MV3BESWITCH TOGGLE DPDT 0.4VA 20V |
3,697 |
|
Datasheet |
GT | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 3.81mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2042B2B1W03SWITCH TOGGLE 4PDT 6A 125V |
2,497 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET215P10-ZSWITCH TOGGLE DPDT 15A 125V |
3,719 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
|
M2015B2B1W01-AT401ASWITCH TOGGLE SPDT 6A 125V |
3,527 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2015B2B1W03-AT401ABUSHING MOUNT MINIATURE TOGGLE |
2,533 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2015BB1G06-AT402SSWITCH TOGGLE SPDT 0.4VA 28V |
1,546 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Wire Wrap | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2023BB1W03-AT402SSWITCH TOGGLE DPDT 6A 125V |
4,148 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
7201MD9V6GESWITCH TOGGLE DPDT 5A 120V |
4,606 |
|
Datasheet |
7000 | Tray | Active | Through Hole | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

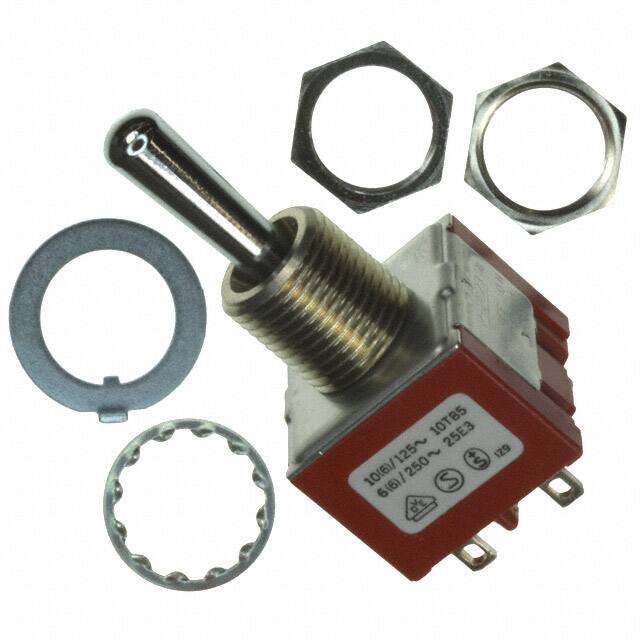

P2023BSWITCH TOGGLE DPDT 10A 125V |
1,533 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | DPDT | 10A (AC) | 125 V | - | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 85°C |
