| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2045B2B1W01SWITCH TOGGLE 4PDT 6A 125V |
1,282 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
P2021SWITCH TOGGLE DPST 10A 125V |
3,029 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | DPST | 10A (AC) | 125 V | - | On-Off | Standard Round with Cap | 13.00mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.35mm Dia | White Cap | -10°C ~ 85°C |
|
|
D22022LBSWITCH TOGGLE DPDT 0.4VA 48V |
2,301 |
|
Datasheet |
D2 | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 48 V | 48 V | On-On | Locking Lever | 19.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -10°C ~ 70°C |
|
|
M2015LL4W01SWITCH TOGGLE SPDT 6A 125V |
1,415 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Locking Lever | 16.51mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
M2022SA1G30SWITCH TOGGLE DPDT 0.4VA 28V |
4,615 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 12.28mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2032K1S1W01-ASWITCH TOGGLE 3PDT 6A 125V |
2,778 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
|
M2012B2B1G06SWITCH TOGGLE SPDT 0.4VA 28V |
3,272 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Wire Wrap | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022S2D3G01SWITCH TOGGLE DPDT 0.4VA 28V |
3,531 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2018BB1W03-AT402SSWITCH TOGGLE SPDT 6A 125V |
3,174 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 11.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
S302F-AT401SSWITCH TOGGLE SPDT 15A 125V |
2,626 |
|
Datasheet |
S | Bulk | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|

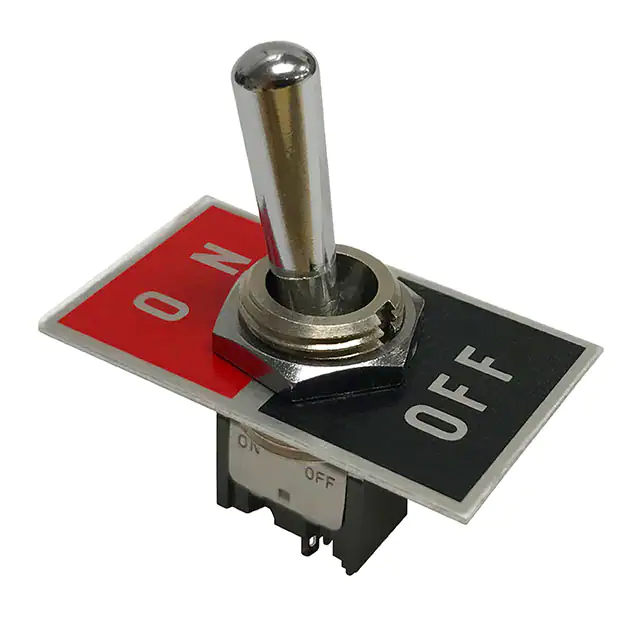

M2011VA002SWITCH TOGGLE SPST 6A 125V |
3,808 |
|
Datasheet |
M | Box | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2018WBW01SWITCH TOGGLE SPDT 6A 125V |
2,607 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 20.00mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Waterproof Boot | -30°C ~ 85°C |
|
|
55636AKVDE+U272SWITCH TOGGLE SPDT 6A 125V |
4,158 |
|
Datasheet |
55000 | Bulk | Active | Panel Mount | SPDT | 6A (AC) | 125 V | - | On-On | Standard Round with Cap | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | - |
|

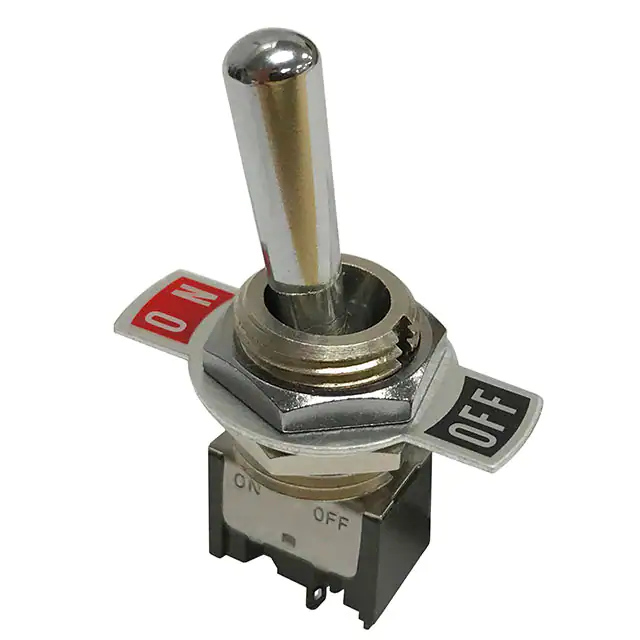

M2011VA001SWITCH TOGGLE SPST 6A 125V |
1,961 |
|
Datasheet |
M | Box | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

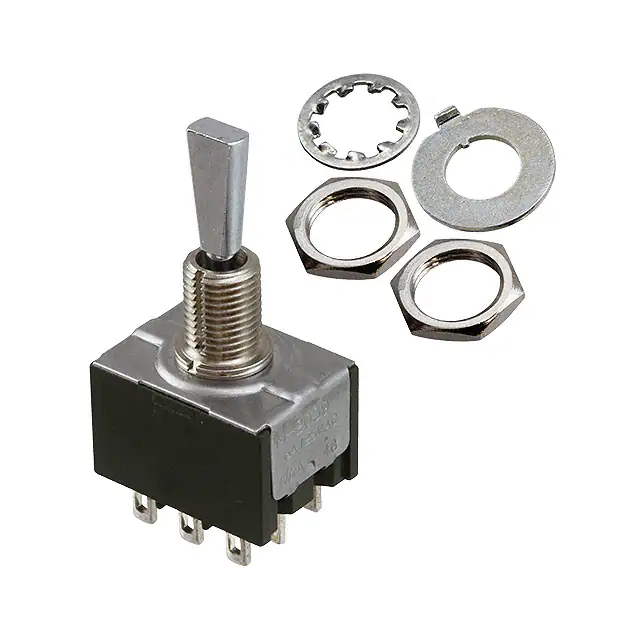

M2039ES1W01SWITCH TOGGLE 3PDT 6A 125V |
3,866 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34A4P11B3M2RTSWITCH TOGGLE 4PDT 0.4VA 20V |
3,969 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | 4PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 12.19mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|

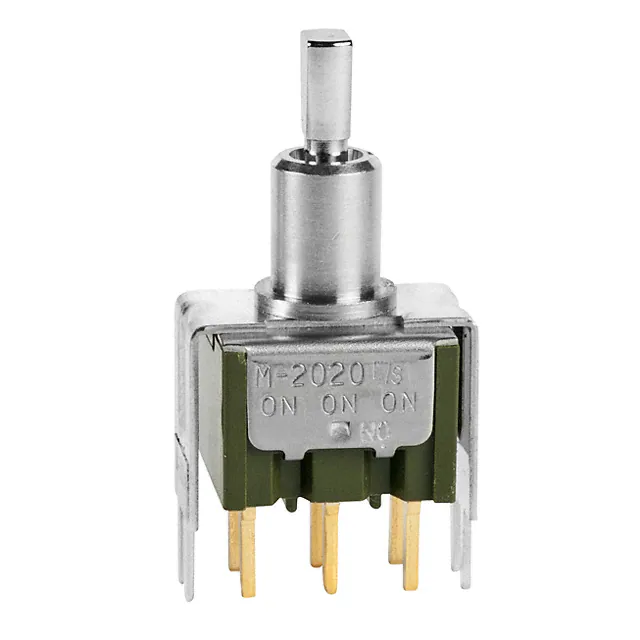

M2024E2S2G13SWITCH TOGGLE SP3T 0.4VA 28V |
2,371 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | On-On-On | Flatted | 6.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
7203SD9ABESWITCH TOGGLE DPDT 0.4VA 20V |
4,315 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 12.45mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201SYW4QESWITCH TOGGLE DPDT 5A 120V |
2,222 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

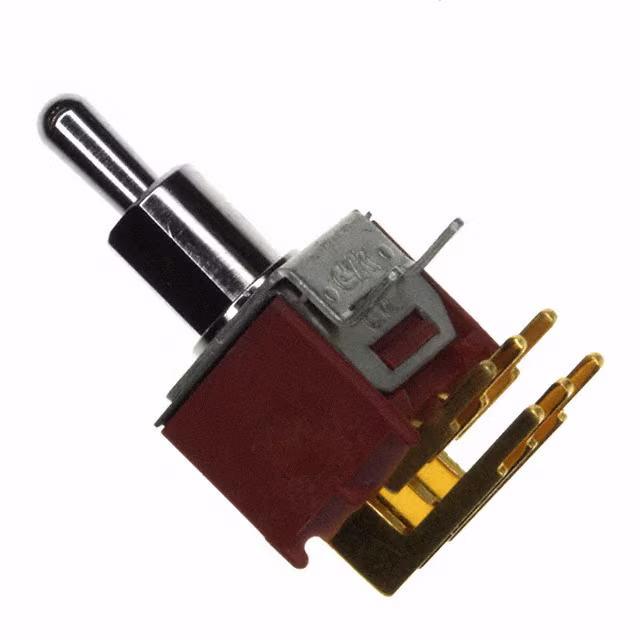

T203MH9ABESWITCH TOGGLE DPDT 0.4VA 20V |
1,739 |
|
Datasheet |
T | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
