| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

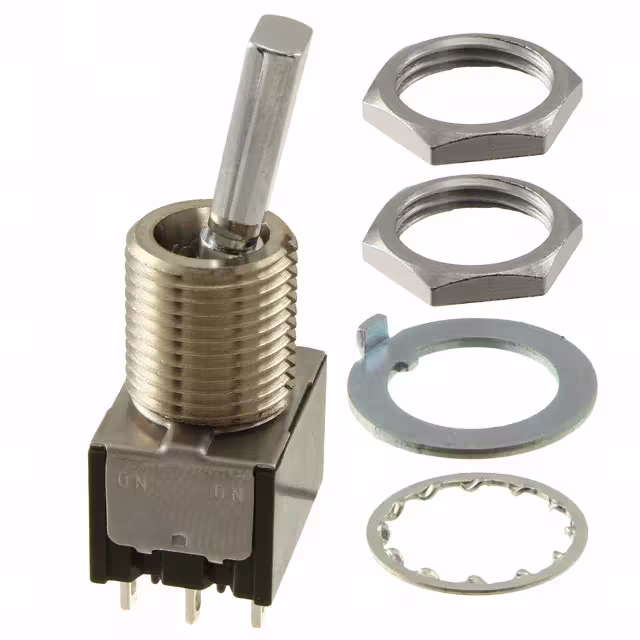

M2032RB1W01SWITCH TOGGLE 3PDT 6A 125V |
4,541 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 15.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2026B2B1G01-AT401SBUSHING MOUNT MINIATURE TOGGLE |
2,144 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | Mom-On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2026B2B1G01-AT401HBUSHING MOUNT MINIATURE TOGGLE |
4,097 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | Mom-On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|

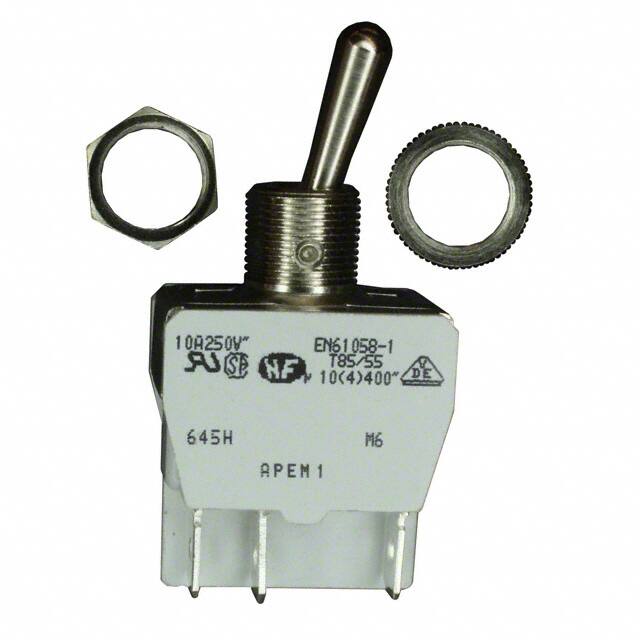

645HSWITCH TOGGLE DPDT 10A 250V |
1,361 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 250 V | - | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
|
S42F-AT401ASWITCH TOGGLE 4PDT 20A 125V |
3,810 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S42F-AT401HSWITCH TOGGLE 4PDT 20A 125V |
3,545 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
PT208SSQSWITCH TOGGLE DPDT 10A 277V |
1,295 |
|
Datasheet |
PT | Bulk | Active | Panel Mount | DPDT | 10A (AC/DC) | 277 V | 28 V | On-Mom | Standard Round | 17.20mm | Non-Illuminated | - | - | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 85°C |
|
|
TL22DDAW015D-AT401PFULLY ILLUMINATED TOGGLE |
4,089 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 12 V | On-On | Flatted | 17.50mm | Illuminated | LED, Amber | 2.1 VDC | IP65 - Dust Tight, Water Resistant | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 55°C |
|
|
TL22DCAW015C-AT401PFULLY ILLUMINATED TOGGLE |
4,077 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 12 V | On-On | Flatted | 17.50mm | Illuminated | LED, Red | 2.1 VDC | IP65 - Dust Tight, Water Resistant | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 55°C |
|
|
S333F-AT402CSWITCH TOGGLE DPDT 20A 125V |
2,840 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S333F/U-AT402CSWITCH TOGGLE DPDT 20A 125V |
1,316 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S333F-AT402HSWITCH TOGGLE DPDT 20A 125V |
1,060 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S333F-AT402ASWITCH TOGGLE DPDT 20A 125V |
4,351 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S333F/U-AT402HSWITCH TOGGLE DPDT 20A 125V |
1,578 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S33F/CUL-AT401ASWITCH TOGGLE 3PDT 20A 125V |
1,835 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S33F-AT401HSWITCH TOGGLE 3PDT 20A 125V |
3,442 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S33F-AT401ASWITCH TOGGLE 3PDT 20A 125V |
2,708 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S33F/CUL-AT401HSWITCH TOGGLE 3PDT 20A 125V |
2,212 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
M2035B2B1W01-AT401ABUSHING MOUNT MINIATURE TOGGLE |
2,215 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
7403SD9WBESWITCH TOGGLE 4PDT 0.4VA 20V |
1,936 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 4PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 12.45mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
