| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT101SZQSWITCH TOGGLE SPDT 15A 277V |
2,036 |
|
Datasheet |
PT | Tray | Active | Panel Mount | SPDT | 15A (AC/DC) | 277 V | 28 V | On-On | Standard Round | 17.20mm | Non-Illuminated | - | - | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Solder Lug | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 85°C |
|
ET330A-ZSWITCH TOGGLE 3PST 30A 125V |
3,437 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | 3PST | 30A (AC) | 125 V | - | On-Off | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
M2122LCFW01SWITCH TOGGLE DPDT 6A 125V |
3,691 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-On | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
M2033BB1W01-AT402SSWITCH TOGGLE 3PDT 6A 125V |
2,245 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2033B2B1W01-AT401ABUSHING MOUNT MINIATURE TOGGLE |
2,585 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2112TFW01/USWITCH TOGGLE SPDT 6A 125V |
3,153 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-On | Standard Round | 14.70mm | Illuminated | LED, Green | 2.2 VDC | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2113TCW01/CULMINIATURE TOGGLE/ILLUMINATED/SOL |
1,603 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -10°C ~ 55°C |
|

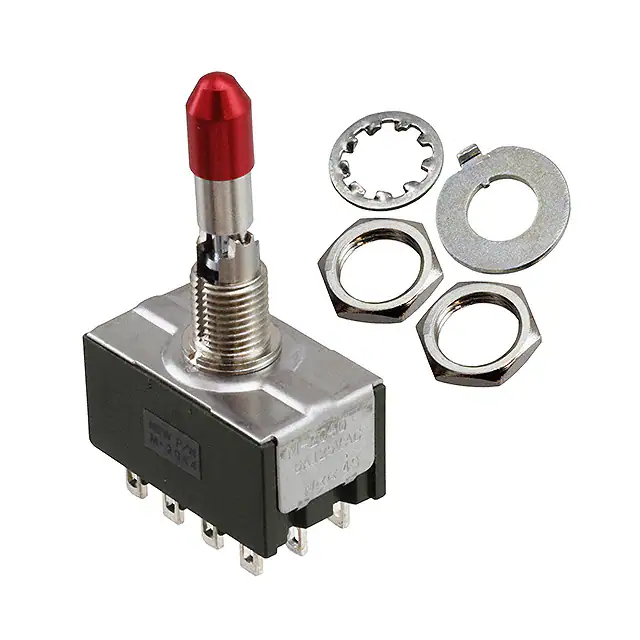

M2044LL1W01-CSWITCH TOGGLE DP3T 6A 125V |
1,775 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
ET415P12-ZSWITCH TOGGLE 4PDT 15A 125V |
3,789 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
|
M2013B2B1A06-AT401ABUSHING MOUNT MINIATURE TOGGLE |
2,451 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Wire Wrap | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
S33/USWITCH TOGGLE 3PDT 20A 125V |
4,030 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S33/CULSWITCH TOGGLE 3PDT 20A 125V |
1,694 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
M2022B2B1G01-AT401SSWITCH TOGGLE DPDT 0.4VA 28V |
3,377 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2022B2B1G01-AT401HSWITCH TOGGLE DPDT 0.4VA 28V |
2,806 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
M2123LCFW01SWITCH TOGGLE DPDT 6A 125V |
2,899 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
M2042LL1A01SWITCH TOGGLE 4PDT 6A 125V |
3,471 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E201SD1AV2GESWITCH TOGGLE DPDT 7.5A 125V |
1,076 |
|
Datasheet |
E | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 7.5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

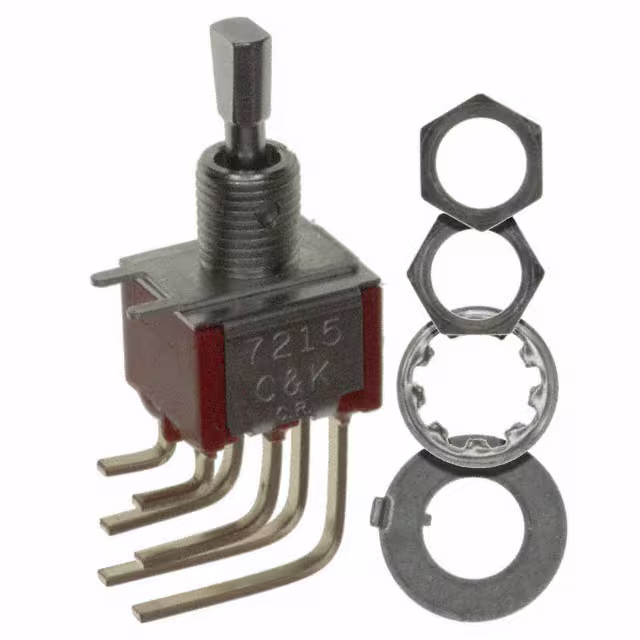

7215P4DAV2BESWITCH TOGGLE SP3T 0.4VA 20V |
3,098 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | SP3T | 0.4VA (AC/DC) | 20 V | 20 V | Mom-On-Mom | Flat Anti-Rotation | 8.13mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2033B2B1W01-AT401SBUSHING MOUNT MINIATURE TOGGLE |
2,551 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2033B2B1W01-AT401HBUSHING MOUNT MINIATURE TOGGLE |
4,001 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
