| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2026B2B1W01-VB-AT401SSWITCH TOGGLE SP3T 6A 125V |
1,681 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-On-Mom | Standard Round with Cap | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2026B2B1W01-VB-AT401HSWITCH TOGGLE SP3T 6A 125V |
3,792 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-On-Mom | Standard Round with Cap | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|

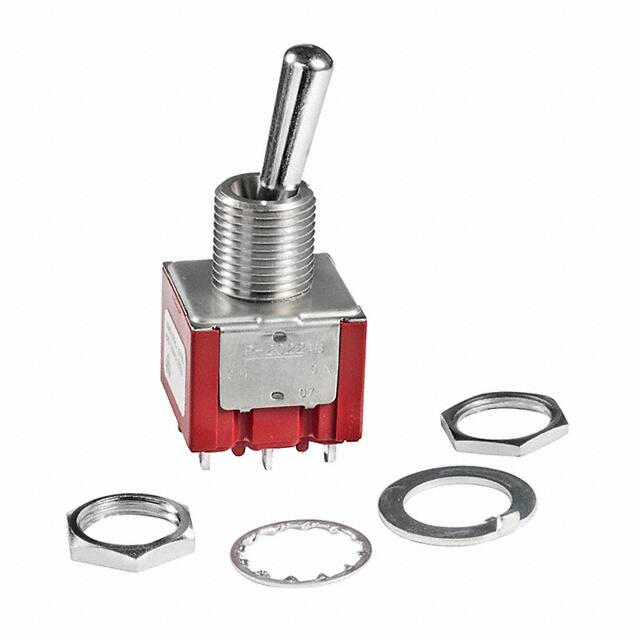

P2022BPSWITCH TOGGLE DPDT 10A 125V |
1,888 |
|
Datasheet |
P | Box | Obsolete | Panel Mount | DPDT | 10A (AC) | 125 V | - | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 85°C |
|
M2046SS1W01SWITCH TOGGLE DP3T 6A 125V |
4,917 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DP3T | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
7401SPHCQESWITCH TOGGLE 4PDT 5A 120V |
3,309 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | 4PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2038SS1W01-BASWITCH TOGGLE 3PDT 6A 125V |
3,110 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
ET330D12-ZSWITCH TOGGLE 3PDT 30A 125V |
3,125 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | 3PDT | 30A (AC) | 125 V | - | On-On | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|

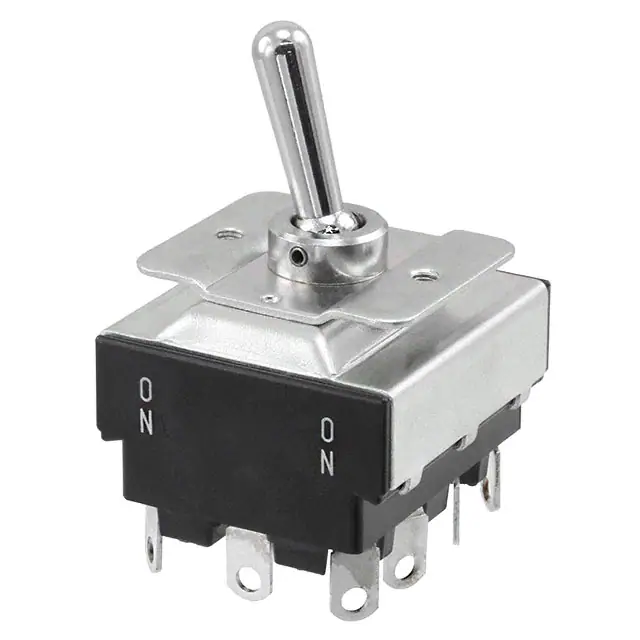

ET420N13-ZSWITCH TOGGLE 4PDT 20A 125V |
3,461 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | 4PDT | 20A (AC) | 125 V | - | On-On | Standard Round | 20.30mm | Non-Illuminated | - | - | - | Solder Lug | Unthreaded | Circular - 12.50mm Dia | - | - |
|
|
34BW3P12B4M6QTSWITCH TOGGLE 3PDT 5A 125V |
4,213 |
|
Datasheet |
34B | Bulk | Active | Through Hole, Right Angle | 3PDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 7.60mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7211L40H3CQESWITCH TOGGLE SP3T 5A 120V |
1,722 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Lever for Cap | - | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
9201P3H3CQESWITCH TOGGLE DPDT 6A 120V |
3,192 |
|
Datasheet |
9000 | Tray | Active | Panel Mount | DPDT | 6A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2028B2B1W01-AT401SBUSHING MOUNT MINIATURE TOGGLE |
1,972 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2028B2B1W01-AT401HBUSHING MOUNT MINIATURE TOGGLE |
1,887 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|

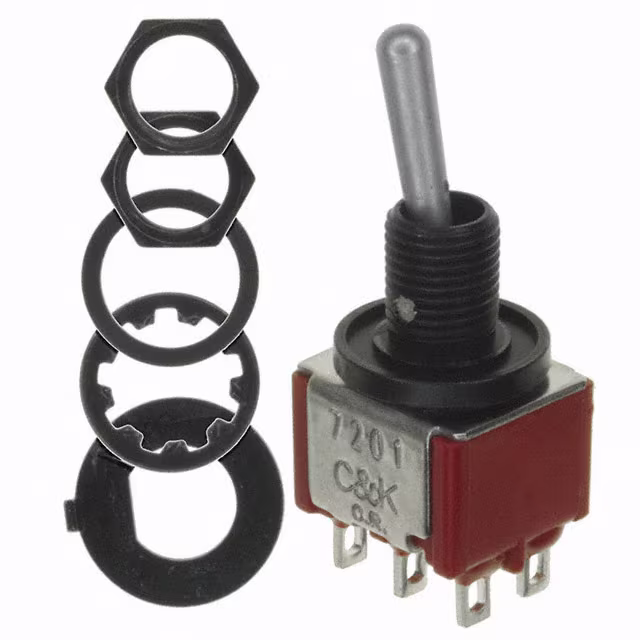

7201SPCWZQES2SWITCH TOGGLE DPDT 5A 120V |
2,865 |
|
Datasheet |
7000 | Tray | Obsolete | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Satin Chrome Actuator | -30°C ~ 85°C |
|
T211SY9CQESWITCH TOGGLE SP3T 2A 120V |
3,962 |
|
Datasheet |
T | Bulk | Obsolete | Through Hole | SP3T | 2A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2112LEW02SWITCH TOGGLE SPDT 6A 125V |
1,311 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-On | Standard Round | 14.70mm | Illuminated | LED, Yellow | 2.1 VDC | - | Quick Connect - 0.062" (1.5mm) | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
M2042BB1W01SWITCH TOGGLE 4PDT 6A 125V |
4,918 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2025LL3G01-ASWITCH TOGGLE DPDT 0.4VA 28V |
4,089 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Locking Lever | 16.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
|
5662MABSWITCH TOGGLE 4PDT 6A 125V |
3,658 |
|
Datasheet |
5000M | Bulk | Active | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
M2112TCW01/CULSWITCH TOGGLE SPDT 6A 125V |
2,534 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-On | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -10°C ~ 55°C |
