| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2024LL4W01-CSWITCH TOGGLE SP3T 6A 125V |
1,058 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
S338F-AT401HSWITCH TOGGLE DPDT 15A 125V |
3,424 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S338F-AT401ASWITCH TOGGLE DPDT 15A 125V |
4,946 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
M2024BB1UW01SWITCH TOGGLE SP3T 6A 125V |
2,259 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Gold Actuator, Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2023SS2G30-BASWITCH TOGGLE DPDT 0.4VA 28V |
4,715 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
|
M2026B2B1W01-VB-AT4181SWITCH TOGGLE SP3T 6A 125V |
1,457 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-On-Mom | Standard Round with Cap | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2024BB1G03-AT402SSWITCH TOGGLE SP3T 0.4VA 28V |
3,449 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | On-On-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
ET220S12-ZSWITCH TOGGLE DPDT 20A 125V |
3,602 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPDT | 20A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | - |
|

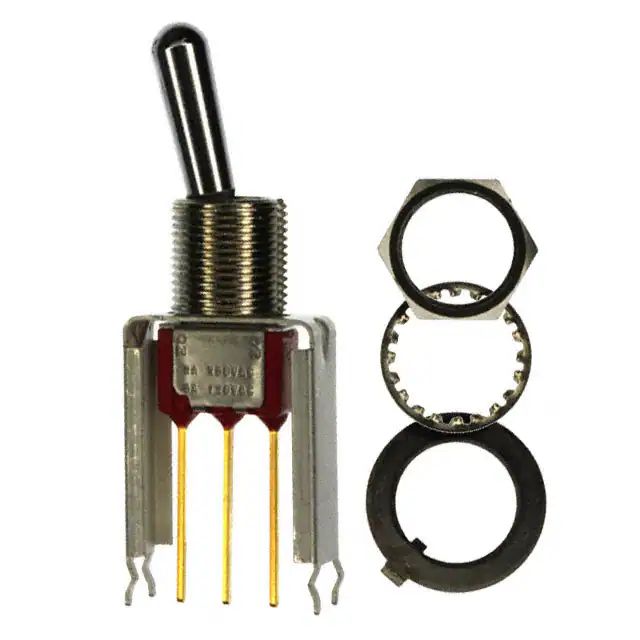

7108TCWV81GESWITCH TOGGLE SPDT 5A 120V |
1,571 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

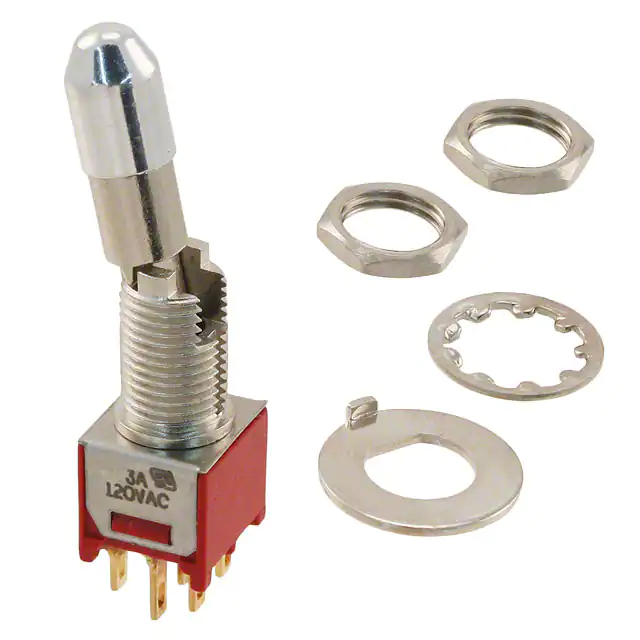

T201KZGESWITCH TOGGLE DPDT 3A 120V |
1,776 |
|
Datasheet |
T | Bulk | Obsolete | Panel Mount | DPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 16.26mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

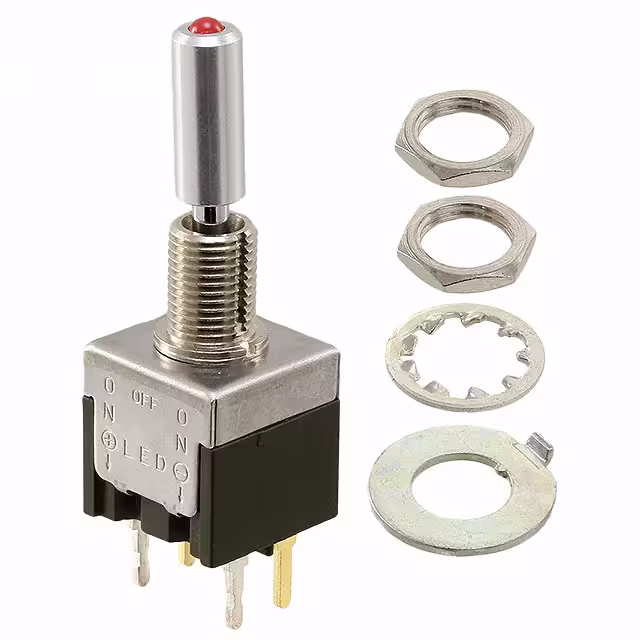

M2113LCG03SWITCH TOGGLE SPDT 0.4VA 28V |
2,558 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
2NT91-6SWITCH TOGGLE DPST-NO 10A 125V |
3,874 |
|
Datasheet |
NT | Bulk | Obsolete | Panel Mount | DPST-NO | 10A (AC) | 125 V | - | Off-Mom | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
|
32NT91-4SWITCH TOGGLE DPST-NC 10A 125V |
4,653 |
|
Datasheet |
NT | Bulk | Obsolete | Panel Mount | DPST-NC | 10A (AC) | 125 V | - | On-Mom | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
|
S338F-AT402ASWITCH TOGGLE DPDT 15A 125V |
4,023 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S338F-AT402CSWITCH TOGGLE DPDT 15A 125V |
3,493 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S338F-AT402HSWITCH TOGGLE DPDT 15A 125V |
4,396 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
PT105SZQSWITCH TOGGLE SPDT 10A 277V |
2,476 |
|
Datasheet |
PT | Bulk | Active | Panel Mount | SPDT | 10A (AC/DC) | 277 V | 28 V | Mom-Off-Mom | Standard Round | 17.20mm | Non-Illuminated | - | - | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Solder Lug | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 85°C |
|
|
S335F-AT401HSWITCH TOGGLE DPDT 15A 125V |
2,504 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S335F-AT401ASWITCH TOGGLE DPDT 15A 125V |
2,329 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
M2026B2B1W01-VB-AT401ASWITCH TOGGLE SP3T 6A 125V |
3,137 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-On-Mom | Standard Round with Cap | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
