| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7301MDAV2BESWITCH TOGGLE 3PDT 0.4VA 20V |
2,674 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | 3PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2024LL4W01SWITCH TOGGLE SP3T 6A 125V |
1,419 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2012B2B1G03-AT401ASWITCH TOGGLE SPDT 0.4VA 28V |
2,073 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2025B2B1W01-AT401ABUSHING MOUNT MINIATURE TOGGLE |
4,531 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
2NT1-51SWITCH TOGGLE DPDT 10A 125V |
4,959 |
|
Datasheet |
NT | Bulk | Obsolete | Panel Mount | DPDT | 10A (AC) | 125 V | - | On-Mom | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
|
M2028BB1W03-AT402SSWITCH TOGGLE DPDT 0.4VA 28V |
1,111 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2022B2B1W06-AT401HBUSHING MOUNT MINIATURE TOGGLE |
2,132 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Wire Wrap | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2022B2B1W06-AT401SBUSHING MOUNT MINIATURE TOGGLE |
1,185 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Wire Wrap | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
S335T/USWITCH TOGGLE DPDT 15A 125V |
2,336 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
M2024BB1W02-AT402SSWITCH TOGGLE MINI BUSHING MNT |
3,631 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.062" (1.5mm) | M12 x 1 | Circular - 12.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2023BB1G01-AT402SSWITCH TOGGLE DPDT 0.4VA 28V |
3,349 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2012B2B1G06-AT401ABUSHING MOUNT MINIATURE TOGGLE |
2,614 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Wire Wrap | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2026BB1W01-AT402SSWITCH TOGGLE SP3T 6A 125V |
4,735 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-On-Mom | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2029B2B1W03-AT4181BUSHING MOUNT MINIATURE TOGGLE |
3,361 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
E105MD9V9BESWITCH TOGGLE SPDT 0.4VA 20V |
4,629 |
|
Datasheet |
E | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 6.86mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

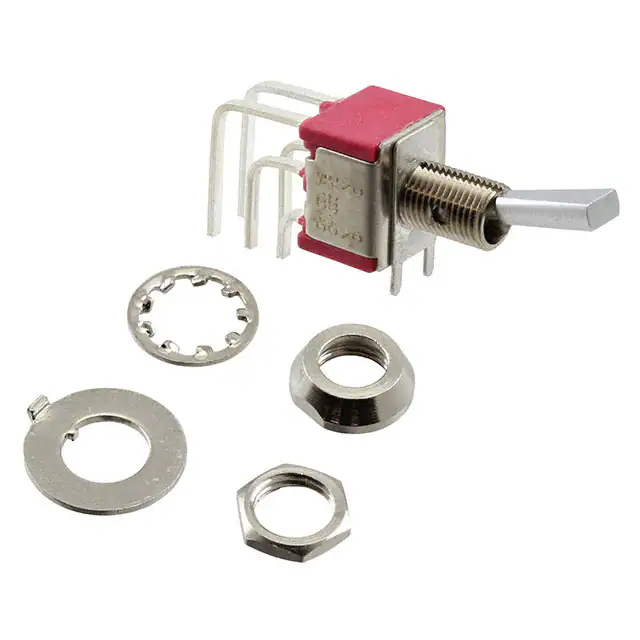

7201P3YAV2QESWITCH TOGGLE DPDT 5A 120V |
1,671 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2043BB1W01SWITCH TOGGLE 4PDT 6A 125V |
4,177 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2029B2B1W01-AT401ABUSHING MOUNT MINIATURE TOGGLE |
4,329 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2029B2B1W03-AT401ABUSHING MOUNT MINIATURE TOGGLE |
1,517 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
M2043B2B1W01SWITCH TOGGLE 4PDT 6A 125V |
2,529 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
