| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
200RDP3T1B1M7RSWITCH TOGGLE DPDT 0.4VA 48V |
1,915 |
|
Datasheet |
200R | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 48 V | 48 V | On-Off-On | Standard Round | 6.00mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|

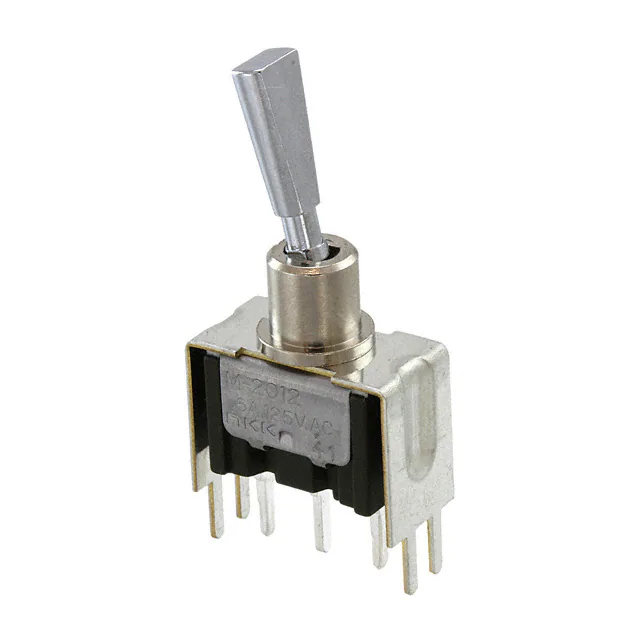

M2012EA2W13SWITCH TOGGLE SPDT 6A 125V |
1,097 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 13.21mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP3T1B6VS2RESWITCH TOGGLE DPDT 0.4VA 20V |
2,062 |
|
Datasheet |
200 | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

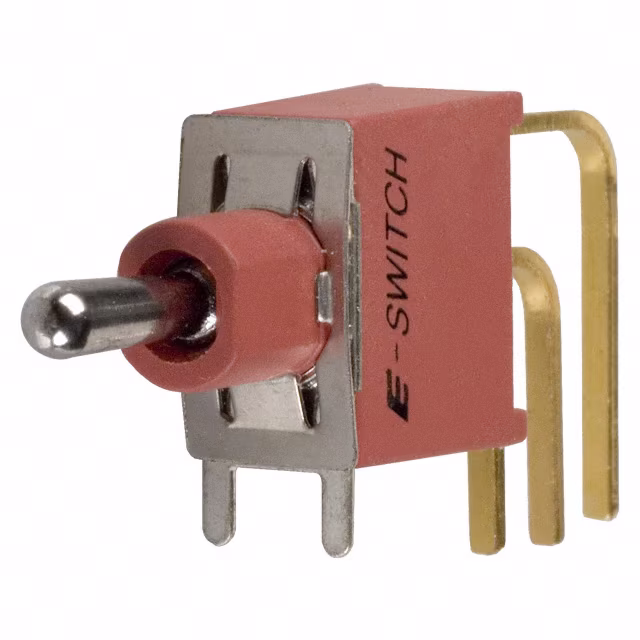

100AWSP5T2B4M7RESWITCH TOGGLE SPDT 0.4VA 20V |
3,565 |
|
Datasheet |
100A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 7.62mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100AWDP3T2B4M7RESWITCH TOGGLE DPDT 0.4VA 20V |
2,641 |
|
Datasheet |
100A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1K1B25M2RESWITCH TOGGLE SPDT 0.4VA 20V |
1,510 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Locking Lever | 14.40mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP6T3B2VS3QESWITCH TOGGLE DP3T 5A 120V |
2,625 |
|
Datasheet |
100 | Bulk | Active | Through Hole | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 13.97mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
1003P1K2B25M1QEHSWITCH TOGGLE 3PDT 5A 120V |
3,597 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 14.73mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A101P3YZQSWITCH TOGGLE SPDT 5A 120V |
1,109 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flatted | 12.29mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -20°C ~ 85°C |
|
|
2M1-SP3-T1-B2-M2QESWITCH TOGGLE SPDT 5A 125V |
1,757 |
|
Datasheet |
2M | Bulk | Active | Through Hole | SPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 10.39mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET01M3D1SAKESWITCH TOGGLE SPDT 0.4VA 20V |
4,458 |
|
Datasheet |
ET | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 6.10mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | Gull Wing | Unthreaded | - | Black Antistatic Actuator | -30°C ~ 85°C |
|
M2012E4S1W03/UCSWITCH TOGGLE SPDT 6A 125V |
4,019 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 21.30mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012SS1W01-CCSWITCH TOGGLE SPDT 6A 125V |
1,721 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Red Cap | -30°C ~ 85°C |
|
|
M2012SS1W01-BGSWITCH TOGGLE SPDT 6A 125V |
3,548 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Blue Cap | -30°C ~ 85°C |
|
|
M2012SS1W01-CASWITCH TOGGLE SPDT 6A 125V |
3,579 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
M2012SS1W01-BBSWITCH TOGGLE SPDT 6A 125V |
2,251 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | White Cap | -30°C ~ 85°C |
|
GT12MSAKETRSWITCH TOGGLE SPST 0.4VA 20V |
3,517 |
|
Datasheet |
GT | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | SPST | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard Round | 3.81mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012SS1W01-BASWITCH TOGGLE SPDT 6A 125V |
1,832 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
M2012SS1W01/328-BASWITCH TOGGLE SPDT 6A 125V |
1,610 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap, Low Temperature Lubricant | -30°C ~ 85°C |
|
|
ST2W062D00SWITCH TOGGLE 20A 125V |
1,554 |
|
Datasheet |
ST2 | Bulk | Active | Panel Mount | - | 20A (AC) | 125 V | - | - | Standard Round | - | Non-Illuminated | - | - | - | Wire Leads | M12 x 1 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
