| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2011KS1W01SWITCH TOGGLE SPST 6A 125V |
4,431 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Lever for Cap | - | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012SS4W03SWITCH TOGGLE SPDT 6A 125V |
4,411 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMDP12B3M6QESWITCH TOGGLE DPDT 3A 125V |
3,763 |
|
Datasheet |
34C | Bulk | Obsolete | Panel Mount, Right Angle | DPDT | 3A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP6T7B13M3RESWITCH TOGGLE DP3T 0.4VA 20V |
4,582 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SP3T | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Standard Round | 12.98mm | Non-Illuminated | - | - | - | Quick Connect - 0.062" (1.5mm) | 15/32-32 | Circular - 11.91mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
2S1-MSP2-T2-B2-M2RESWITCH TOGGLE SPDT 0.4VA 20V |
2,621 |
|
Datasheet |
2S | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 5.99mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
200AWMSP4T2A1M7QESWITCH TOGGLE SPDT 3A 120V |
2,358 |
|
Datasheet |
200A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 3A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 6.10mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1K1B25M1QEHSWITCH TOGGLE DPDT 5A 120V |
2,931 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 14.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP11B1M1RTSWITCH TOGGLE SPDT 0.4VA 20V |
2,579 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
1003P3T1B1M2REHSWITCH TOGGLE 3PDT 0.4VA 20V |
3,105 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 3PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1003P2T1B1M2REHSWITCH TOGGLE 3PDT 0.4VA 20V |
2,788 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 3PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200AWMDP1T2A1M6RESWITCH TOGGLE DPDT 0.4VA 20V |
3,627 |
|
Datasheet |
200A | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 6.10mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2023S2A1G30SWITCH TOGGLE DPDT 0.4VA 28V |
4,770 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2023S2A2G30SWITCH TOGGLE DPDT 0.4VA 28V |
3,971 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP6T6B11M1RESWITCH TOGGLE DP3T 0.4VA 20V |
4,546 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SP3T | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Flat Anti-Rotation | 12.29mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
A15JBSWITCH TOGGLE SPDT 0.4VA 28V |
1,817 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

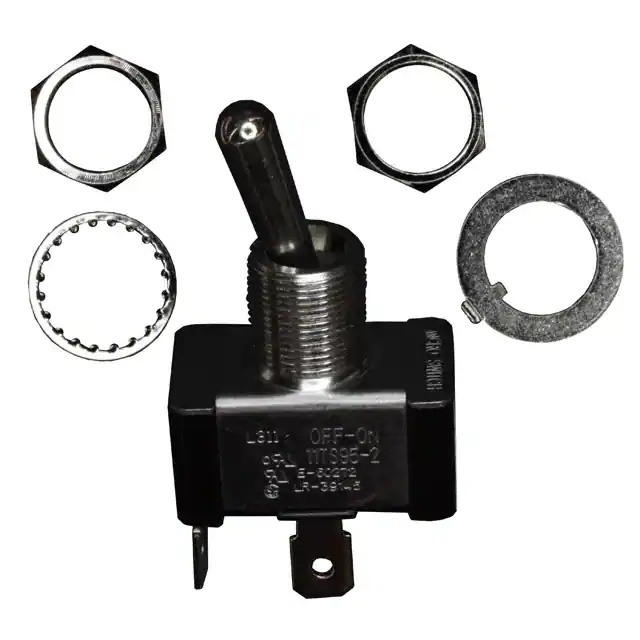

11TS95-2SWITCH TOGGLE SPST 20A 125V |
2,448 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SPST | 20A (AC) | 125 V | - | On-Off | Standard Round | 16.51mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.40mm Dia | - | -54°C ~ 71°C |
|
|
M2028ES1W03SWITCH TOGGLE DPDT 6A 125V |
1,790 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2SS-MSP1-T2-B4-M2PESWITCH TOGGLE SPDT 3A 125V |
4,604 |
|
Datasheet |
2S | Bulk | Active | Through Hole | SPDT | 3A (AC) | 125 V | 28 V | On-On | Standard Round | 3.55mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
2M1-SP1-T8-B0-M2GESWITCH TOGGLE SPDT 5A 125V |
4,650 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Anti-Rotation | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP6T2B4M6RESWITCH TOGGLE SP3T 0.4VA 20V |
4,442 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle | SP3T | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
