| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
34DWMSP15B4M7RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,439 |
|
Datasheet |
34D | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022LL1W06SWITCH TOGGLE DPDT 6A 125V |
4,156 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ZL31S0001SWITCH TOGGLE SPST 0.4VA 20V |
1,462 |
|
Datasheet |
ZL | Bulk | Active | Panel Mount | SPST | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard Round | 5.50mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.90mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5632CDBTOGGLE SWITCH 5000 MINIATURE |
1,845 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
ATE1GGPC1SWITCH TOGGLE SPDT 0.4VA 20V |
3,836 |
|
Datasheet |
ATE | Bulk | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 6.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
2M1-SP3-T2-B9-M1GESWITCH TOGGLE SPDT 5A 125V |
4,647 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 5.41mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B12KH-BHSWITCH TOGGLE SPDT 0.4VA 28V |
2,729 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Gray Actuator | -30°C ~ 85°C |
|
|
B12KH-AASWITCH TOGGLE SPDT 0.4VA 28V |
2,705 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Black Actuator | -30°C ~ 85°C |
|
|
1003P1T2B4M6RESWITCH TOGGLE 3PDT 0.4VA 20V |
4,335 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle | 3PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1003P1T1B9M5RESWITCH TOGGLE 3PDT 0.4VA 20V |
4,564 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 3PDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2M1-SP3-T1-B9-M1QESWITCH TOGGLE SPDT 5A 125V |
4,814 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 10.40mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
8GA1012-ZSWITCH TOGGLE SPDT 6A 125V |
1,379 |
|
Datasheet |
8GA | Bulk | Active | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -30°C ~ 85°C |
|

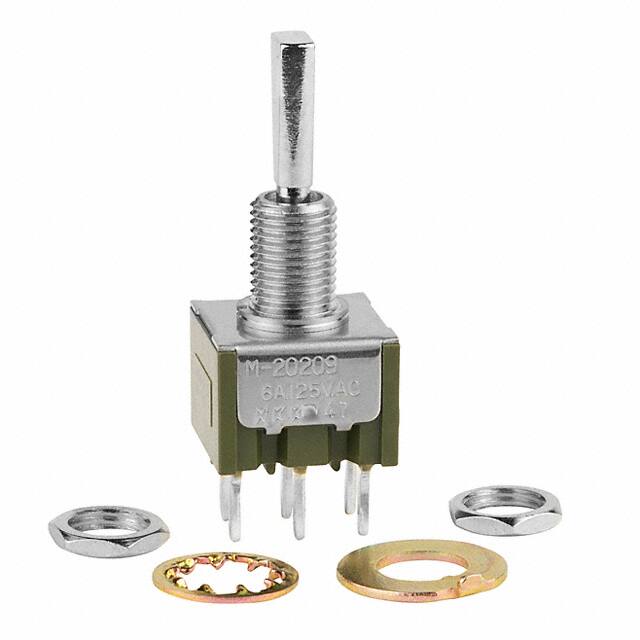

M2027ES1W03SWITCH TOGGLE SP3T 6A 125V |
3,455 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2032SA1W03SWITCH TOGGLE 3PDT 6A 125V |
4,138 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 12.28mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7102CSWITCH TOGGLE SPDT 6A 125V |
1,323 |
|
Datasheet |
7100 | Bulk | Active | Panel Mount | SPDT | 6A (AC) | 125 V | - | On-Off-On | Standard Round | 14.27mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | - | - | -10°C ~ 65°C |
|
|
M2012SA2W30-BASWITCH TOGGLE SPDT 6A 125V |
1,204 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 12.28mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
M2015SS1W01SWITCH TOGGLE SPDT 6A 125V |
1,049 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

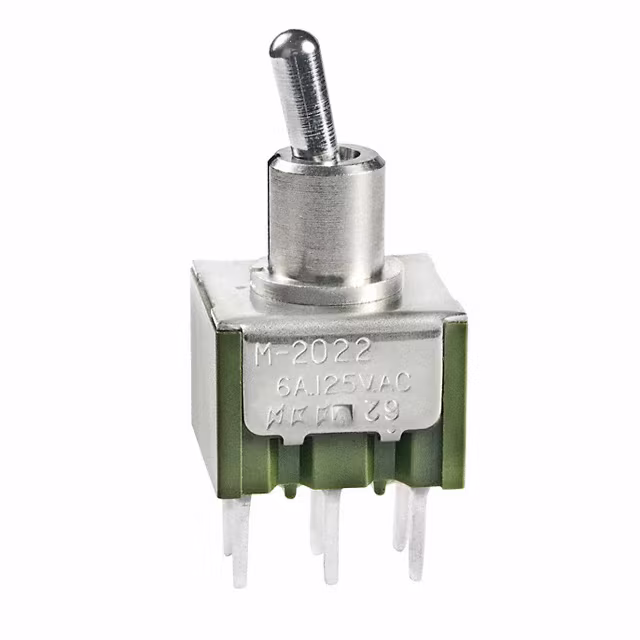

M2022S2A2W03SWITCH TOGGLE DPDT 6A 125V |
4,635 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP37T7M2RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,027 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 12.37mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | - | -30°C ~ 85°C |
|
|
MN12S2A1W03BUSHING MOUNT MINIATURE TOGGLE |
4,231 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
