| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
34CMSP11B1M2RTSWITCH TOGGLE SPDT 0.4VA 20V |
1,618 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMSP14B2V2QTSWITCH TOGGLE SPDT 3A 125V |
4,534 |
|
Datasheet |
34C | Bulk | Active | Through Hole | SPDT | 3A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2024SS1W01/3SWITCH TOGGLE SP3T 6A 125V |
4,820 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
4-1825138-0SWITCH TOGGLE DPDT 5A 120V |
1,497 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2S1-MSP3-T2-B1-M2RESWITCH TOGGLE SPDT 0.4VA 20V |
4,026 |
|
Datasheet |
2S | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 5.99mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 10-48 | Circular - 4.95mm Dia | - | -30°C ~ 85°C |
|
|
2S1-MSP3-T2-B1-M2KESWITCH TOGGLE SPDT 0.4VA 20V |
2,639 |
|
Datasheet |
2S | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 5.99mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 10-48 | Circular - 4.95mm Dia | - | -30°C ~ 85°C |
|
|
2S1-MSP3-T2-B5-M1RESWITCH TOGGLE SPDT 0.4VA 20V |
4,119 |
|
Datasheet |
2S | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 5.99mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
2S1-MSP3-T2-B1-M1RESWITCH TOGGLE SPDT 0.4VA 20V |
3,677 |
|
Datasheet |
2S | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 5.99mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 10-48 | Circular - 4.95mm Dia | - | -30°C ~ 85°C |
|
8A1021-ZSWITCH TOGGLE SPDT 6A 125V |
1,029 |
|
Datasheet |
8A | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -30°C ~ 85°C |
|
|
2S1-MDP1-T1-B1-M2QESWITCH TOGGLE DPDT 3A 125V |
1,113 |
|
Datasheet |
2S | Bulk | Active | Panel Mount | DPDT | 3A (AC) | 125 V | 28 V | On-On | Standard Round | 9.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 10-48 | Circular - 4.95mm Dia | - | -30°C ~ 85°C |
|
|
A213SYZQSWITCH TOGGLE SP3T 5A 120V |
1,480 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -20°C ~ 85°C |
|
|
1003P1T2B3M2QESWITCH TOGGLE 3PDT 5A 120V |
3,061 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1003P1T2B2M2QESWITCH TOGGLE 3PDT 5A 120V |
1,866 |
|
Datasheet |
100 | Bulk | Active | Through Hole | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP11B1M2RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,146 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
34ASP12B3M3QTSWITCH TOGGLE SPDT 5A 125V |
1,133 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | Quick Connect - 0.062" (1.5mm) | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
1003P1T1B1M2QESWITCH TOGGLE 3PDT 5A 120V |
3,229 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022S2A1W03SWITCH TOGGLE DPDT 6A 125V |
3,744 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

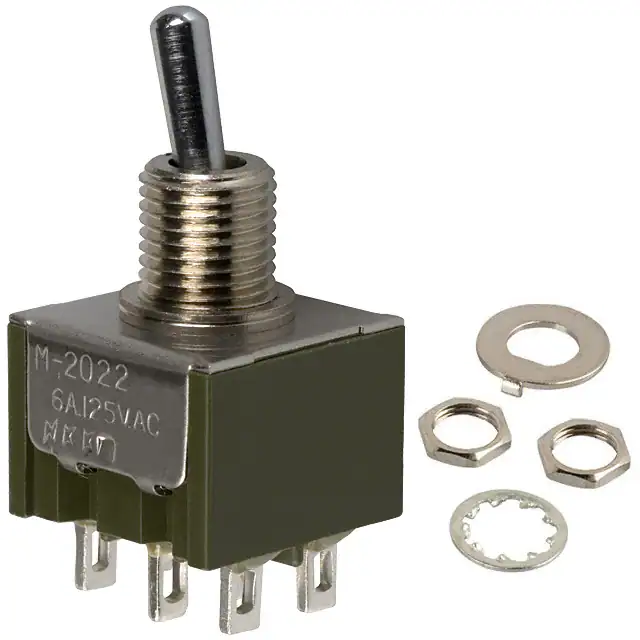

M2022S2A1W01SWITCH TOGGLE DPDT 6A 125V |
4,035 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2S1-MSP2-T2-B2-M7RESWITCH TOGGLE SPDT 0.4VA 20V |
3,944 |
|
Datasheet |
2S | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 5.99mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
200AWMDP2T1A1M6RESWITCH TOGGLE DPDT 0.4VA 20V |
2,615 |
|
Datasheet |
200A | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 10.16mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
