| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2S1-MSP3-T2-B2-M6QESWITCH TOGGLE SPDT 3A 125V |
4,644 |
|
Datasheet |
2S | Bulk | Active | Through Hole | SPDT | 3A (AC) | 125 V | 28 V | On-Off-On | Standard Round | 5.99mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
3-1825139-5SWITCH TOGGLE SP3T 5A 120V |
2,446 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
3-1825139-8SWITCH TOGGLE SP3T 0.4VA 20V |
1,301 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SP3T | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
34ASP11B2M7QTSWITCH TOGGLE SPDT 5A 125V |
2,165 |
|
Datasheet |
34A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
34BWSP12B4M2RTSWITCH TOGGLE SPDT 0.4VA 20V |
1,924 |
|
Datasheet |
34B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 7.60mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34BWSP12B4M7QTSWITCH TOGGLE SPDT 5A 125V |
2,124 |
|
Datasheet |
34B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 7.60mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMSP32B2M7RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,848 |
|
Datasheet |
34C | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B22LH/328SWITCH TOGGLE DPDT 0.4VA 28V |
3,870 |
|
Datasheet |
B | Bulk | Obsolete | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Locking Lever | 12.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Low Temperature Lubricant | -30°C ~ 85°C |
|

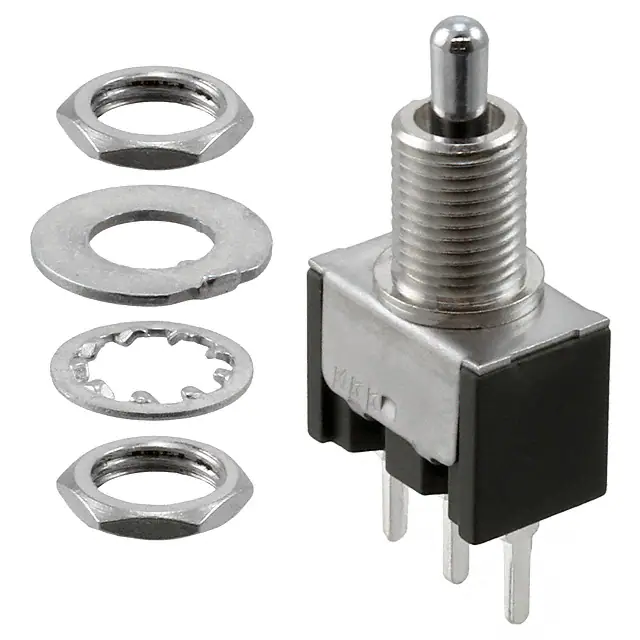

M2018S2S1W03SWITCH TOGGLE SPDT 6A 125V |
2,805 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP44B8M1RTSWITCH TOGGLE SPDT 0.4VA 20V |
1,417 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 16.26mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
1571920-6SWITCH TOGGLE SPDT 6A 125V |
1,669 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-Off-On | Standard Round | 10.49mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
A12HV1SWITCH TOGGLE SPDT 0.4VA 28V |
3,097 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
TL36WS84065SWITCH TOGGLE SPDT 0.4VA 20V |
1,479 |
|
Datasheet |
SMT TL | Bulk | Active | Surface Mount, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.50mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | High Temperature Plastic Cap | -40°C ~ 85°C |
|
|
1825136-1SWITCH TOGGLE SPDT 0.4VA 20V |
1,101 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Locking Lever | 17.27mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5-1825137-3SWITCH TOGGLE SPDT 0.4VA 20V |
4,071 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP12B1M2RTSWITCH TOGGLE SPDT 0.4VA 20V |
4,053 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
34BWSP12B1M1RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,052 |
|
Datasheet |
34B | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34BWSP41B1M1RTSWITCH TOGGLE SPDT 0.4VA 20V |
2,103 |
|
Datasheet |
34B | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 10.60mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MTA106DULSWITCH TOGGLE SPDT 6A 125V |
4,358 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
A201SYZQSWITCH TOGGLE DPDT 5A 120V |
2,481 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -20°C ~ 85°C |
