| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2T19S4A5G40SWITCH TOGGLE SPDT 0.4VA 28V |
2,906 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
MN12SS4G01SWITCH TOGGLE |
2,442 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
M2022BB1W01SWITCH TOGGLE DPDT 6A 125V |
3,021 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022BB1W01/CULSWITCH TOGGLE DPDT 6A 125V |
2,780 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

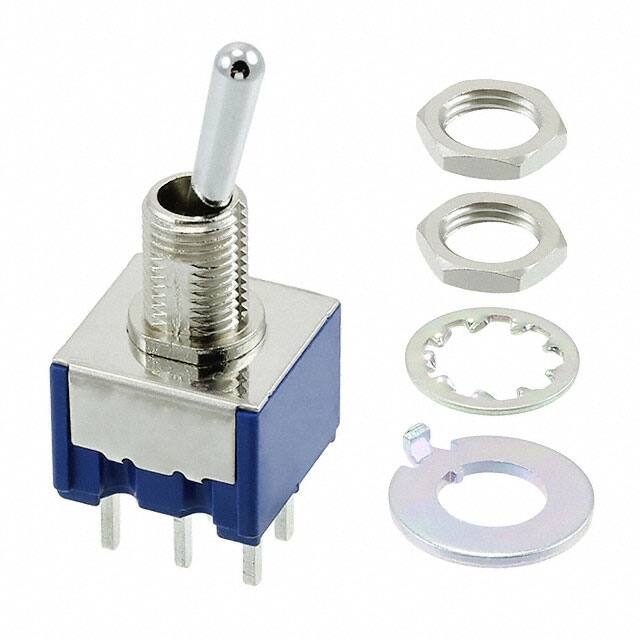

8A2102-ZSWITCH TOGGLE SP3T 6A 125V |
3,836 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 4A (DC) | 125 V | 30 V | On-On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -20°C ~ 85°C |
|
T101MH9CQESWITCH TOGGLE SPDT 3A 120V |
1,840 |
|
Datasheet |
T | Tray | Active | Through Hole | SPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 5.44mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A13HBSWITCH TOGGLE SPDT 0.4VA 28V |
4,693 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Flatted | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
A18EPSWITCH TOGGLE SPDT 0.4VA 28V |
4,945 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Flatted | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
M2033S2S2W30SWITCH TOGGLE 3PDT 6A 125V |
1,648 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | 3PDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1004P6T6B15M3REHSWITCH TOGGLE DP3T 0.4VA 20V |
4,405 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DP3T | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | - | Quick Connect - 0.062" (1.5mm) | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
A25AWSWITCH TOGGLE DPDT 0.4VA 28V |
4,081 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
7101MD9CGESWITCH TOGGLE SPDT 0.4VA 20V |
2,192 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
T3921BASWITCH TOGGLE SPDT 16A 125V |
1,715 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | SPDT | 16A (AC), 14A (DC) | 125 V | 36 V | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | - |
|
|
T101SHABESWITCH TOGGLE SPDT 0.4VA 20V |
1,001 |
|
Datasheet |
T | Tray | Active | Panel Mount, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
8E1011-ZSWITCH TOGGLE SPDT 6A 125V |
2,859 |
|
Datasheet |
8E | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -30°C ~ 85°C |
|
|
1004P6T4B1M2QEHSWITCH TOGGLE 4P3T 5A 120V |
2,294 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 16.26mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP3-TA-B1-M1QESWITCH TOGGLE SPDT 5A 125V |
1,894 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Locking Lever | 15.60mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TT11EGPC3SWITCH TOGGLE SPDT 0.4VA 20V |
1,590 |
|
Datasheet |
TT | Bulk | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 9.68mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2027LL1G01SWITCH TOGGLE SP3T 0.4VA 28V |
1,267 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | On-On-Mom | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
T115A-FSWITCH TOGGLE SPST 15A 250V |
4,565 |
|
Datasheet |
T-15 | Bulk | Active | Panel Mount | SPST | 15A (AC/DC) | 250 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | IP40 | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -25°C ~ 70°C |
