| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2012LL2G40SWITCH TOGGLE SPDT 0.4VA 28V |
2,027 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

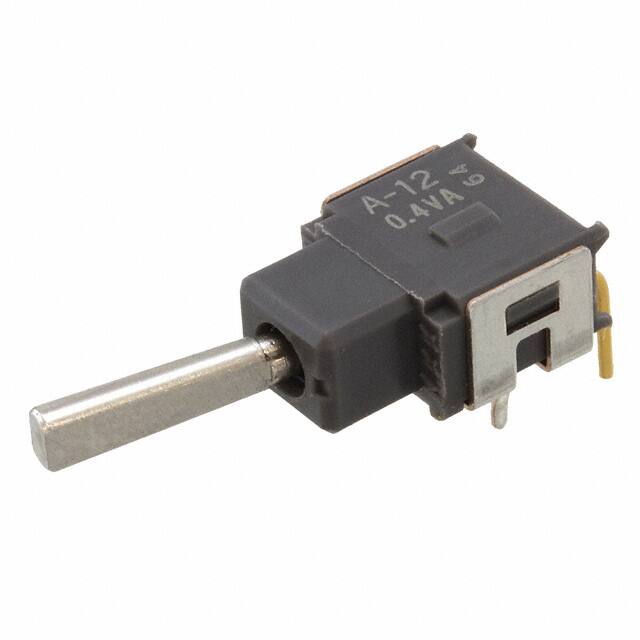

A12EHSWITCH TOGGLE SPDT 0.4VA 28V |
3,438 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
A18ABSWITCH TOGGLE SPDT 0.4VA 28V |
2,112 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
|
TT11EGRA1SWITCH TOGGLE SPDT 0.4VA 20V |
3,243 |
|
Datasheet |
TT | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 5.61mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T102M1HZBESWITCH TOGGLE SPST 0.4VA 20V |
4,882 |
|
Datasheet |
T | Tray | Active | Panel Mount | SPST | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard Round | 7.88mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7108SHZQESWITCH TOGGLE SPDT 5A 120V |
1,682 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7105SCWCGESWITCH TOGGLE SPDT 5A 120V |
4,763 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E101MYZBESWITCH TOGGLE SPDT 0.4VA 20V |
1,772 |
|
Datasheet |
E | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A13JH-JBPROCESS SEALED SUBMINIATURE TOGG |
1,568 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round with Cap | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | - | -30°C ~ 85°C |
|
|
DB220-PB-BSWITCH TOGGLE SPDT 20A 125V |
1,527 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 125 V | - | On-On | Paddle | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | - | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
DB221-PB-B/POLYSWITCH TOGGLE SPDT 20A 125V |
1,932 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 125 V | - | On-On | Paddle | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | - | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
DC221-PB-B/NO HDWSWITCH TOGGLE SPDT 20A 125V |
4,077 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 125 V | - | On-Off-On | Paddle | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | - | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
DC220-PW-WSWITCH TOGGLE SPDT 20A 125V |
1,590 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 125 V | - | On-Off-On | Paddle | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | - | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
DB221-PW-WSWITCH TOGGLE SPDT 20A 125V |
2,720 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 125 V | - | On-On | Paddle | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | - | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
DC220-PB-BSWITCH TOGGLE SPDT 20A 125V |
3,831 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 125 V | - | On-Off-On | Paddle | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | - | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
DC221-PB-BSWITCH TOGGLE SPDT 20A 125V |
1,997 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 125 V | - | On-Off-On | Paddle | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | - | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
DC221-BB-BSWITCH TOGGLE SPDT 20A 125V |
1,491 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 125 V | - | On-Off-On | Standard Round | - | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | - | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
DB221-PB-BSWITCH TOGGLE SPDT 20A 125V |
4,465 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 125 V | - | On-On | Paddle | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | - | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
DB221-PW-BSWITCH TOGGLE SPDT 20A 125V |
4,853 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 125 V | - | On-On | Paddle | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | - | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
8A2061-ZSWITCH TOGGLE DPDT 6A 125V |
1,872 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -30°C ~ 85°C |
