| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2GC61-73SWITCH TOGGLE SPDT 6A 125V |
1,776 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPDT | 6A (AC) | 125 V | - | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2FC63-73SWITCH TOGGLE SPDT 6A 125V |
1,708 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPDT | 6A (AC) | 125 V | - | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
M2018SA2A13/CULSWITCH TOGGLE M2 |
2,924 |
|
Datasheet |
M | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
M2022LL2W30SWITCH TOGGLE DPDT 6A 125V |
2,212 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B23EBSWITCH TOGGLE DPDT 0.4VA 28V |
4,935 |
|
Datasheet |
B | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Flatted | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201LYZQESWITCH TOGGLE DPDT 5A 120V |
1,041 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 21.34mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

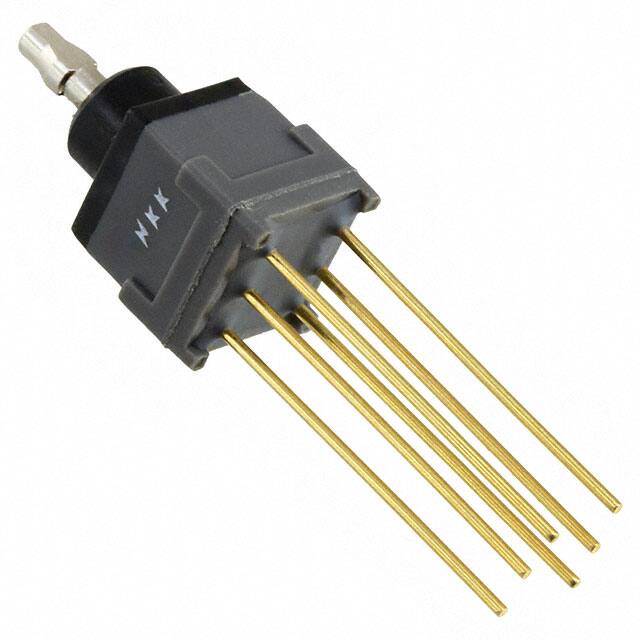

B24KWSWITCH TOGGLE SP3T 0.4VA 28V |
1,399 |
|
Datasheet |
B | Bulk | Active | Through Hole | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | On-On-On | Lever for Cap | 5.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
5238WWCDB16X445SWITCH TOGGLE SPDT 0.4VA 20V |
2,873 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 8.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
ET05MD1SA1BESWITCH TOGGLE SPDT 0.4VA 20V |
1,169 |
|
Datasheet |
ET | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 6.10mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | Gull Wing | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ADP1LM6RTSWITCH TOGGLE DPDT 0.4VA 20V |
4,226 |
|
Datasheet |
34A | Bulk | Active | Panel Mount, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Locking Lever | 16.26mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
1004P7T1B1M1QESWITCH TOGGLE DP3T 5A 120V |
4,625 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DP3T | 5A (AC/DC) | 120 V | 28 V | On-On-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7201K12CBE3SWITCH TOGGLE DPDT 0.4VA 20V |
1,448 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Locking Lever | 18.59mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Red Anodized | -30°C ~ 85°C |
|
|
TL36W004000TOGGLE SWITCH SMT TL PCB MOUNT |
4,365 |
|
Datasheet |
TL | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.49mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
7105SCWWBESWITCH TOGGLE SPDT 0.4VA 20V |
4,482 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Wire Wrap | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A15KB1-AHSWITCH TOGGLE SPDT 0.4VA 28V |
4,314 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Gray Actuator | -30°C ~ 85°C |
|
|
A15KB1-BHSWITCH TOGGLE SPDT 0.4VA 28V |
3,123 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Gray Actuator | -30°C ~ 85°C |
|
|
A15KB-AHSWITCH TOGGLE SPDT 0.4VA 28V |
1,676 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Gray Actuator | -30°C ~ 85°C |
|
|
TL38W009000SWITCH TOGGLE SPDT 0.4VA 20V |
2,011 |
|
Datasheet |
TL | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 7.60mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Black Insulated Lever | -30°C ~ 85°C |
|
|
5638ADX681SWITCH TOGGLE SPDT 6A 125V |
4,027 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
7201MYW3QESWITCH TOGGLE DPDT 5A 28V |
1,104 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
