| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7109SYCQESWITCH TOGGLE SPDT 5A 120V |
1,074 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T215P-AFSWITCH TOGGLE DPDT 15A 250V |
1,395 |
|
Datasheet |
T-15 | Bulk | Active | Panel Mount | DPDT | 15A (AC/DC) | 250 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP40 | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -25°C ~ 70°C |
|
E103MD1ZBESWITCH TOGGLE SPDT 0.4VA 20V |
2,753 |
|
Datasheet |
E | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | Solder Lug | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A22ABSWITCH TOGGLE DPDT 0.4VA 28V |
4,579 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
7103P3D9V4GESSWITCH TOGGLE SPDT 5A 120V |
1,639 |
|
Datasheet |
7000 | Tray | Active | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Satin Chrome Actuator | -30°C ~ 85°C |
|

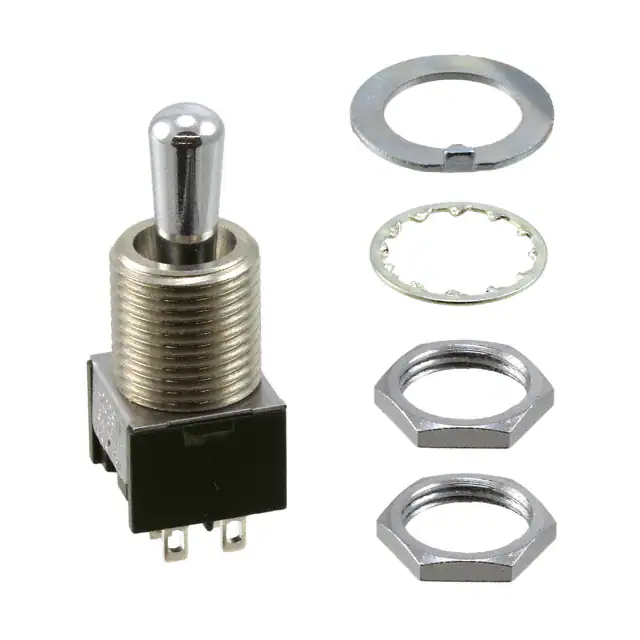

M2029BB1W01SWITCH TOGGLE DPDT 6A 125V |
1,459 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2024EA2W13SWITCH TOGGLE SP3T 6A 125V |
1,377 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SP3T | 6A (AC), 4A (DC) | 125 V | 30 V | On-On-On | Flatted | 13.21mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
6631H/2TOGGLE SWITCH 600H HIGH POWER |
1,509 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2FLA53-73/TABSSWITCH TOGGLE |
2,416 |
|
Datasheet |
F | Bulk | Active | Panel Mount | - | - | - | - | - | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
2FA64-73SWITCH TOGGLE SPST 6A 125V |
2,552 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPST | 6A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
M2018SS1W40SWITCH TOGGLE SPDT 6A 125V |
1,980 |
|
Datasheet |
M | Box | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A28KB-BASWITCH TOGGLE DPDT 0.4VA 28V |
4,514 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Black Actuator | -30°C ~ 85°C |
|
T101SH9CQESWITCH TOGGLE SPDT 3A 120V |
1,912 |
|
Datasheet |
T | Tray | Active | Through Hole | SPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101SY9W6BESWITCH TOGGLE SPDT 0.4VA 20V |
3,021 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
GT13MAVBESWITCH TOGGLE SPDT 0.4VA 20V |
4,366 |
|
Datasheet |
GT | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 3.81mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

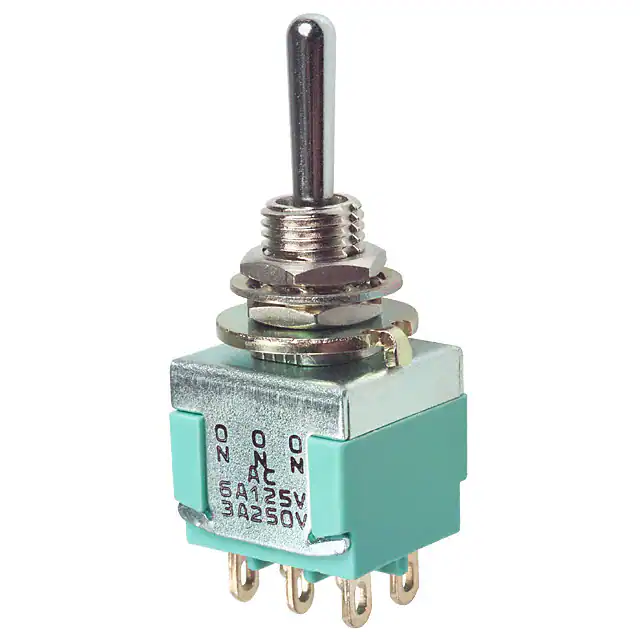

MTA206PASWITCH TOGGLE SP3T 6A 125V |
3,771 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 4A (DC) | 125 V | 28 V | On-On-On | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Jumper needed to achieve triple throw | -20°C ~ 80°C |
|
|
TL46Y000000SWITCH TOGGLE DPDT 0.4VA 20V |
4,756 |
|
Datasheet |
TL | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TL46Y000050SWITCH TOGGLE DPDT 0.4VA 20V |
3,469 |
|
Datasheet |
TL | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
4641A22SWITCH TOGGLE DPST 6A 125V |
2,077 |
|
Datasheet |
4600 | Bulk | Active | Panel Mount | DPST | 6A (AC) | 125 V | - | On-Off | Flatted | 13.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
|
MN11SD3W01-BASWITCH TOGGLE |
2,979 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPST | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
