| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN22SS1W01-BGSWITCH TOGGLE |
3,994 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
7201P1YCBESWITCH TOGGLE DPDT 0.4VA 20V |
4,524 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flat Anti-Rotation | 21.33mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7107SD9V3BESWITCH TOGGLE SPDT 0.4VA 20V |
1,639 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 12.45mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7201L40D9CQESWITCH TOGGLE DPDT 5A 28V |
1,621 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Lever for Cap | - | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
5239WAB16X404SWITCH TOGGLE SPDT 6A 125V |
2,191 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 7.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

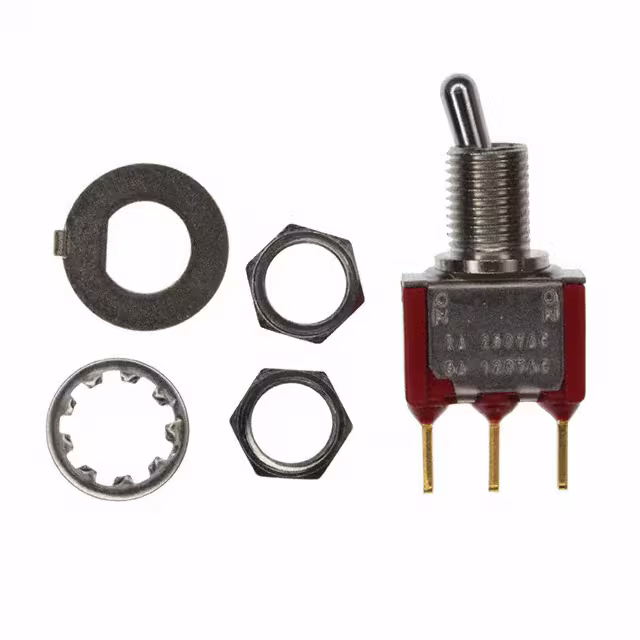

7108MHCGESWITCH TOGGLE SPDT 5A 120V |
1,090 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
A26AWSWITCH TOGGLE SP3T 0.4VA 28V |
1,879 |
|
Datasheet |
A | Bulk | Active | Through Hole | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | Mom-On-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
A26JWSWITCH TOGGLE SP3T 0.4VA 28V |
1,127 |
|
Datasheet |
A | Bulk | Active | Through Hole | SP3T | 0.4VA (AC/DC) | 28 V | 28 V | Mom-On-Mom | Standard Round | 6.30mm | Non-Illuminated | - | - | - | Wire Wrap | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2015SS4G01-BBSWITCH TOGGLE SPDT 0.4VA 28V |
2,996 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round with Cap | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | White Cap | -30°C ~ 85°C |
|
|
2FA04-73SWITCH TOGGLE SPST |
2,599 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPST | - | - | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
2GA724-73SWITCH TOGGLE SPST 20A 125V |
3,007 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPST | 20A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2GA724-D-3B-BSWITCH TOGGLE SPST 20A 125V |
2,240 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPST | 20A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2FA54-78/HDW ASSMSWITCH TOGGLE SPST 15A 125V |
1,178 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
2GA734-73SWITCH TOGGLE SPST |
2,172 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPST | - | - | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2GA74-73SWITCH TOGGLE SPST 17A 125V |
2,326 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPST | 17A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2FA54-78/2 HEXSWITCH TOGGLE SPST 15A 125V |
4,116 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
2FAA04-73SWITCH TOGGLE SPST |
4,602 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPST | - | - | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
2GA04-73SWITCH TOGGLE SPST 20A 250V |
1,663 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPST | 20A (AC) | 250 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2GA724-D-2B-BSWITCH TOGGLE SPST 20A 125V |
1,511 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPST | 20A (AC) | 125 V | - | On-Off | - | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
M2022SS1W30-BASWITCH TOGGLE DPDT 6A 125V |
1,563 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
