| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7201LD9AV2BE2SWITCH TOGGLE DPDT 0.4VA 20V |
4,177 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 23.12mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Black Actuator | -30°C ~ 85°C |
|
|
7101P4CWZBESWITCH TOGGLE SPDT 0.4VA 20V |
2,643 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E201L3YZQE2SWITCH TOGGLE DPDT 7.5A 28V |
1,923 |
|
Datasheet |
E | Bulk | Active | Panel Mount | DPDT | 7.5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 23.88mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
ET03MD1AVBESWITCH TOGGLE SPDT 0.4VA 20V |
4,687 |
|
Datasheet |
ET | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 6.10mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5239WCDB16X404SWITCH TOGGLE SPDT 0.4VA 20V |
4,667 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 7.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
T108MY9AQESWITCH TOGGLE SPDT 2A 120V |
4,274 |
|
Datasheet |
T | Tray | Active | Through Hole, Right Angle | SPDT | 2A (AC/DC) | 120 V | 28 V | On-Mom | Standard Round | 5.44mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
DA225-BB-BSWITCH TOGGLE SPST 20A 125V |
2,368 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPST | 20A (AC) | 125 V | - | On-Off | Standard Round | - | Non-Illuminated | - | - | - | Wire Leads | - | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
110-73/TABSSWITCH TOGGLE SPST 6A 125V |
2,021 |
|
Datasheet |
110 | Bulk | Active | Panel Mount | SPST | 6A (AC/DC) | 125 V | 125 V | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
110-B-73SWITCH TOGGLE SPST 6A 125V |
2,001 |
|
Datasheet |
110 | Bulk | Active | Panel Mount | SPST | 6A (AC/DC) | 125 V | 125 V | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
DA225-PB-BSWITCH TOGGLE SPST 20A 125V |
2,944 |
|
Datasheet |
D | Bulk | Active | Panel Mount | SPST | 20A (AC) | 125 V | - | On-Off | Paddle | 17.45mm | Non-Illuminated | - | - | - | Wire Leads | - | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
110-73/HDW ASSMSWITCH TOGGLE SPST 6A 125V |
3,717 |
|
Datasheet |
110 | Bulk | Active | Panel Mount | SPST | 6A (AC/DC) | 125 V | 125 V | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
ET01SD1AVGESWITCH TOGGLE SPDT 0.4VA 20V |
4,753 |
|
Datasheet |
ET | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.16mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|

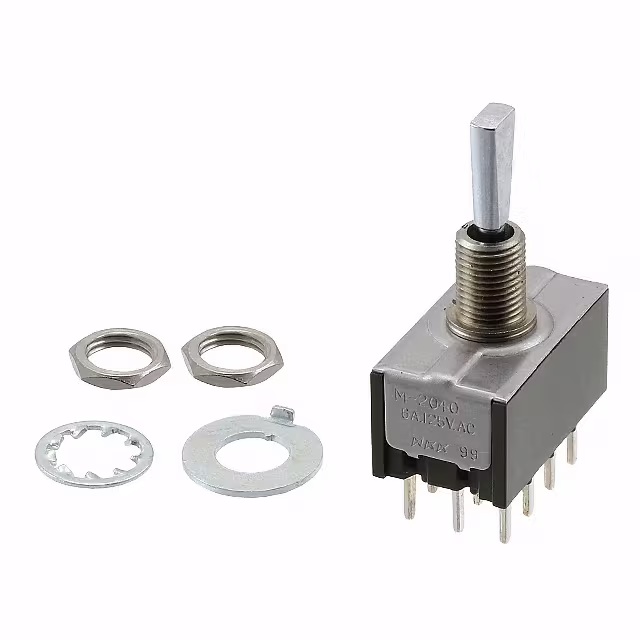

M2044ES1W03SWITCH TOGGLE DP3T 6A 125V |
3,613 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
5236WWCD7TOGGLE SWITCH 5000 MINIATURE |
2,808 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
M2015KS1W01SWITCH TOGGLE SPDT 6A 125V |
4,302 |
|
Datasheet |
M | Box | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Lever for Cap | - | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
8A3011-ZSWITCH TOGGLE 3PDT 6A 125V |
2,200 |
|
Datasheet |
8A | Bulk | Active | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -30°C ~ 85°C |
|
|
7101K2ZQE22SWITCH TOGGLE SPDT 5A 120V |
1,577 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Black Anodized | -30°C ~ 85°C |
|
|
U21SD9V4GESWITCH TOGGLE DPDT 5A 120V |
4,284 |
|
Datasheet |
7000 | Tray | Active | Through Hole | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 12.45mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5644TH1RCDBTOGGLE SWITCH 5000 MINIATURE |
3,692 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DP3T | 0.4VA (AC/DC) | 20 V | 20 V | On-On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
5644THCDBTOGGLE SWITCH 5000 MINIATURE |
4,610 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
