Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WT22SSWITCH TOGGLE DPDT 10A 125V |
271 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | DPDT | 10A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 70°C |
|

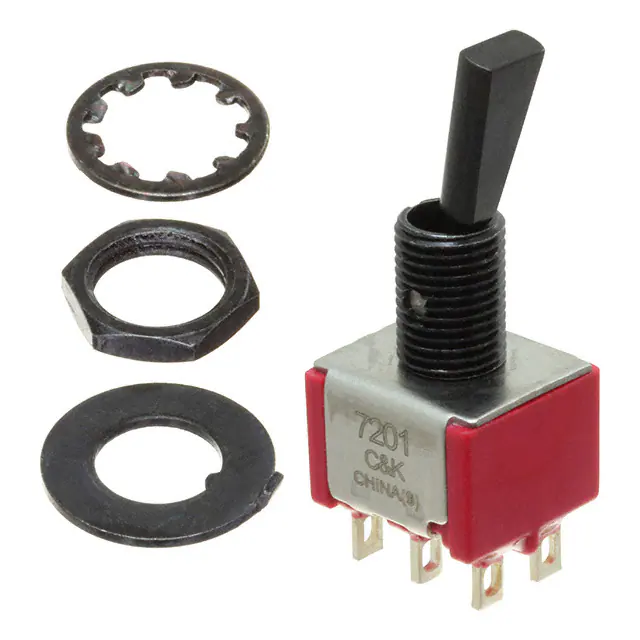

7201P3YZQE22SWITCH TOGGLE DPDT 5A 120V |
232 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Black Actuator | -30°C ~ 85°C |
|
6GM5M-78SWITCH TOGGLE DPDT 15A 125V |
1,468 |
|
Datasheet |
G | Box | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
1825223-3SWITCH TOGGLE SPST 3A 125V |
112 |
|
Datasheet |
TT | Bulk | Active | Panel Mount | SPST | 3A (AC/DC) | 125 V | 28 V | On-Off | Standard Round | 9.68mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.83mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1825219-2SWITCH TOGGLE SPST 0.4VA 20V |
171 |
|
Datasheet |
TT | Bulk | Active | Through Hole | SPST | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard Round | 5.61mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
MTE206NSWITCH TOGGLE DPDT 6A 125V |
190 |
|
Datasheet |
MTE Green | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
647HSWITCH TOGGLE DPDT 10A 250V |
160 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | DPDT | 10A (AC) | 250 V | - | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
6GM5B-78SWITCH TOGGLE DPDT 15A 125V |
113 |
|
Datasheet |
G | Box | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
S43RSWITCH TOGGLE 4PDT 20A 125V |
102 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Flatted | 27.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
.jpg)
|
WT21TSWITCH TOGGLE DPST 10A 125V |
1,772 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | DPST | 10A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
7403SYZQESWITCH TOGGLE 4PDT 5A 120V |
163 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
3631NFSWITCH TOGGLE SPST 6A 125V |
323 |
|
Datasheet |
3600NF | Bulk | Active | Panel Mount | SPST | 6A (AC), 12A (DC) | 125 V | 28 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 0.75 | Circular - 12.20mm Dia | Sealed | -40°C ~ 85°C |
|
7403SYCQESWITCH TOGGLE 4PDT 5A 120V |
133 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
31NT91-7SWITCH TOGGLE SPDT 10A 125V |
237 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|
WT21LSWITCH TOGGLE DPST 10A 125V |
1,770 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | DPST | 10A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Wire Leads | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 70°C |
|

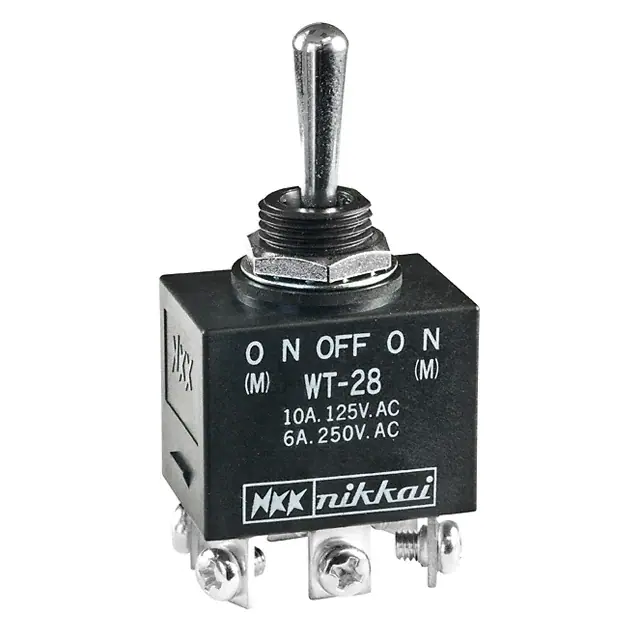

WT28TSWITCH TOGGLE DPDT 10A 125V |
110 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | DPDT | 10A (AC/DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 70°C |
|

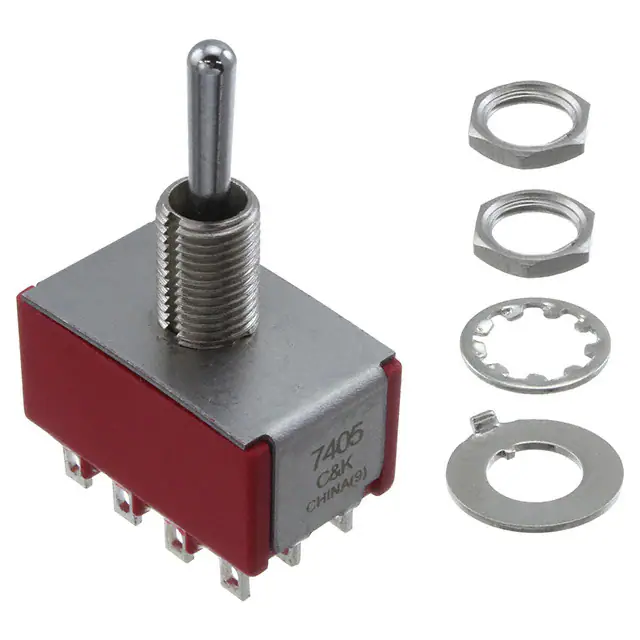

7405SYZQESWITCH TOGGLE 4PDT 5A 120V |
118 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
WT13LSWITCH TOGGLE SPDT 10A 125V |
1,401 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | SPDT | 10A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Wire Leads | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 70°C |
|

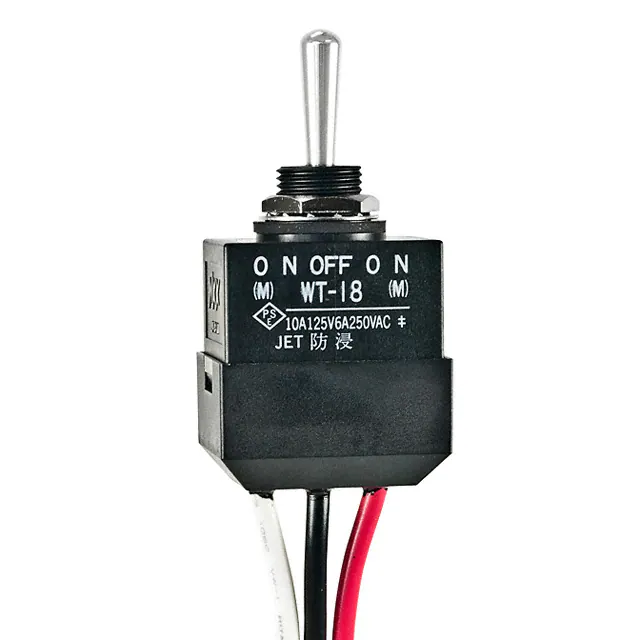

WT18LSWITCH TOGGLE SPDT 10A 125V |
250 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | SPDT | 10A (AC/DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Wire Leads | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
S7AWBSWITCH TOGGLE DPDT 15A 125V |
2,427 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP68 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Waterproof Boot | -30°C ~ 70°C |
