Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7101SD9V3GESWITCH TOGGLE SPDT 5A 120V |
398 |
|
Datasheet |
7000 | Tray | Active | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 12.45mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1004P1T1B9M7QESWITCH TOGGLE 4PDT 5A 120V |
286 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle, Vertical | 4PDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B12JJVFSWITCH TOGGLE SPDT 0.4VA 28V |
151 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.30mm | Illuminated | LED, Green | 3.3 VDC | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
|
636NH/2SWITCH TOGGLE SPDT 15A 250V |
127 |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 250 V | - | On-On | Flatted | 13.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
7105SCWZQESWITCH TOGGLE SPDT 5A 120V |
123 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101P3DCQESWITCH TOGGLE SPDT 5A 120V |
193 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B23A1PSWITCH TOGGLE DPDT 0.4VA 28V |
143 |
|
Datasheet |
B | Tray | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 8.00mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.00mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1004P6T1B4M7RESWITCH TOGGLE DP3T 0.4VA 20V |
123 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | DP3T | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
S301F/CULSWITCH TOGGLE SPST 15A 125V |
4,000 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | SPST | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|

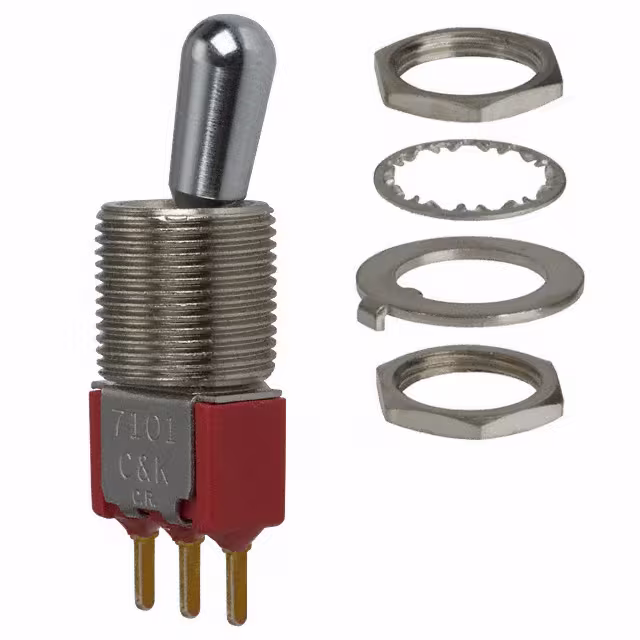

7101T1CWCQESWITCH TOGGLE SPDT 5A 120V |
2,144 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 12.37mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

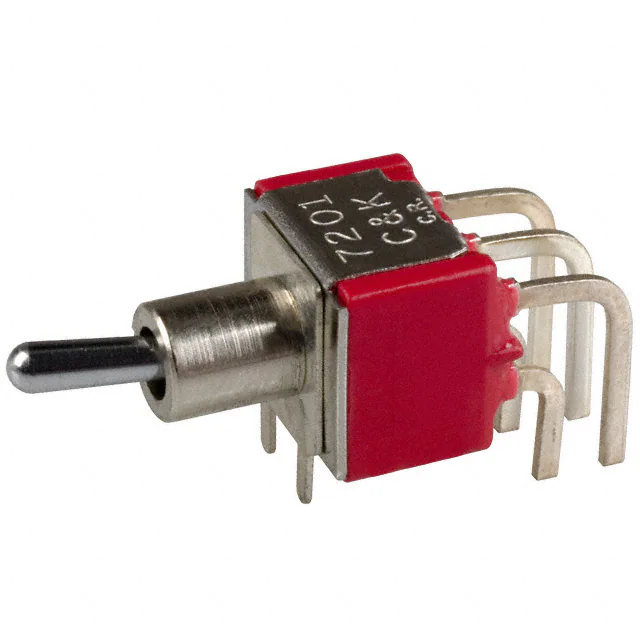

7201MD9AQESWITCH TOGGLE DPDT 5A 120V |
429 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S332/USWITCH TOGGLE DPDT 25A 125V |
3,714 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPDT | 25A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
T103MH9V3BESWITCH TOGGLE SPDT 0.4VA 20V |
186 |
|
Datasheet |
T | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101TCQESWITCH TOGGLE SPDT 5A 120V |
164 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E201SD1CBESWITCH TOGGLE DPDT 0.4VA 20V |
112 |
|
Datasheet |
E | Tray | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T103LTDZQESWITCH TOGGLE SPDT 2A 120V |
203 |
|
Datasheet |
T | Bulk | Active | Panel Mount | SPDT | 2A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 6.10mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

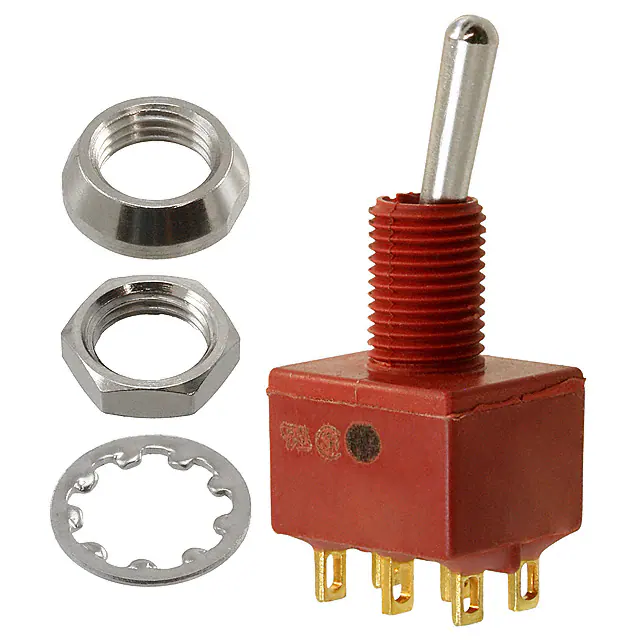

E201SYZQESWITCH TOGGLE DPDT 7.5A 125V |
101 |
|
Datasheet |
E | Tray | Active | Panel Mount | DPDT | 7.5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.16mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7205SYCQESWITCH TOGGLE DPDT 5A 120V |
115 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
C3911BASWITCH TOGGLE SPDT 16A 125V |
967 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | SPDT | 16A (AC), 14A (DC) | 125 V | 36 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | - |
|

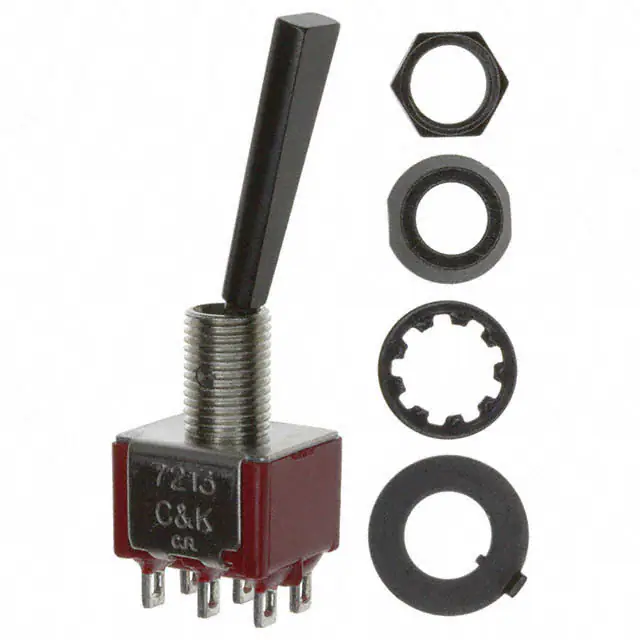

7213P1YZQE2SWITCH TOGGLE SP3T 5A 120V |
482 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-Mom | Flat Anti-Rotation | 21.33mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
