Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100DP1K2B25M1QEHSWITCH TOGGLE DPDT 5A 120V |
349 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 14.73mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
5238ABSWITCH TOGGLE SPDT 6A 125V |
150 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
4-1825139-2SWITCH TOGGLE SP3T 5A 120V |
409 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
ANT33FAR2S25RESWITCH TOGGLE 3PDT 5A 120V |
391 |
|
Datasheet |
ANT | Bulk | Active | Through Hole | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Flatted | 11.43mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
G12JPDSWITCH TOGGLE SPDT 0.4VA 28V |
132 |
|
Datasheet |
G | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 3.80mm | Illuminated | LED, Amber | 2 VDC | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|

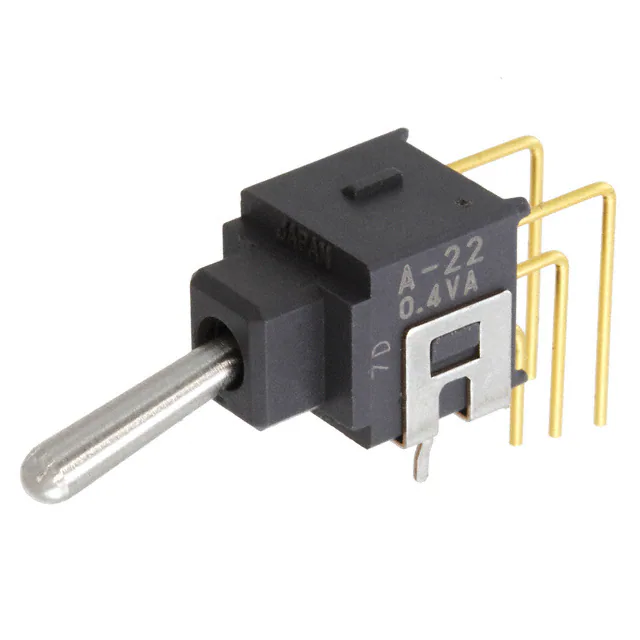

A22AVSWITCH TOGGLE DPDT 0.4VA 28V |
1,460 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

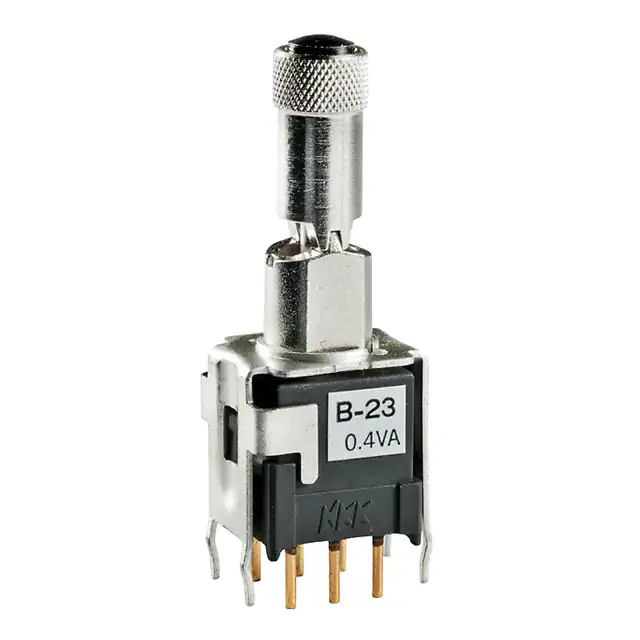

B23LBSWITCH TOGGLE DPDT 0.4VA 28V |
1,803 |
|
Datasheet |
B | Tray | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Locking Lever | 12.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

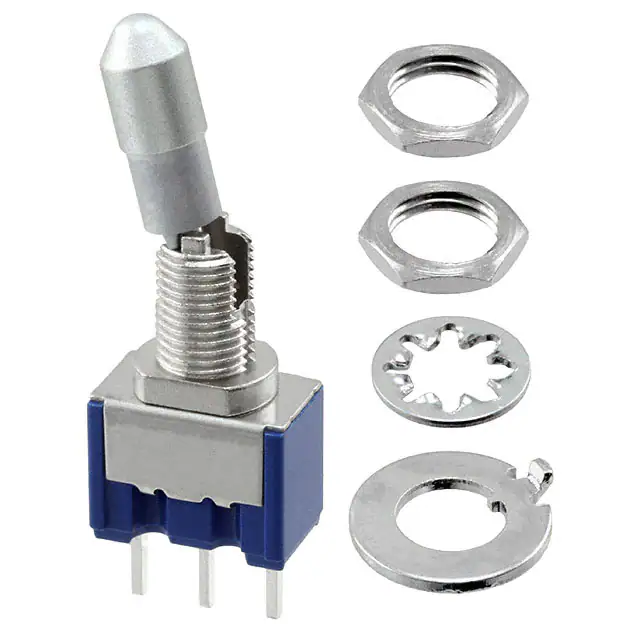

8E1012-ZSWITCH TOGGLE SPDT 6A 125V |
112 |
|
Datasheet |
8E | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -30°C ~ 85°C |
|
5636AB16SWITCH TOGGLE SPDT 6A 125V |
155 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 5.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
, ET01MD1SAKE(T&R), ET03MD1SAKE(T&R).jpg)
|
ET01MD1SAPESWITCH TOGGLE SPDT 0.4VA 20V |
941 |
|
Datasheet |
ET | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 6.10mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | Gull Wing | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1003P4T6B11M1QEHSWITCH TOGGLE 3PDT 5A 120V |
163 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 3PDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7105MD9ABESWITCH TOGGLE SPDT 0.4VA 20V |
272 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

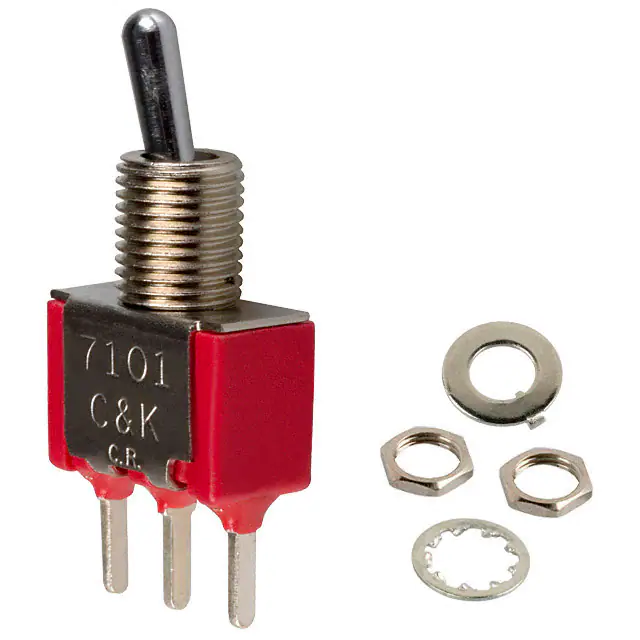

7101MDCQESWITCH TOGGLE SPDT 5A 120V |
133 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
G3T22APSWITCH TOGGLE DPDT 0.4VA 28V |
544 |
|
Datasheet |
G3T | Tray | Active | Surface Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 3.81mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
ET07M3D1SA1BESWITCH TOGGLE SPDT 0.4VA 20V |
401 |
|
Datasheet |
ET | Tape & Reel (TR) | Active | Surface Mount, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 6.10mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | Gull Wing | Unthreaded | - | Black Antistatic Actuator | -30°C ~ 85°C |
|

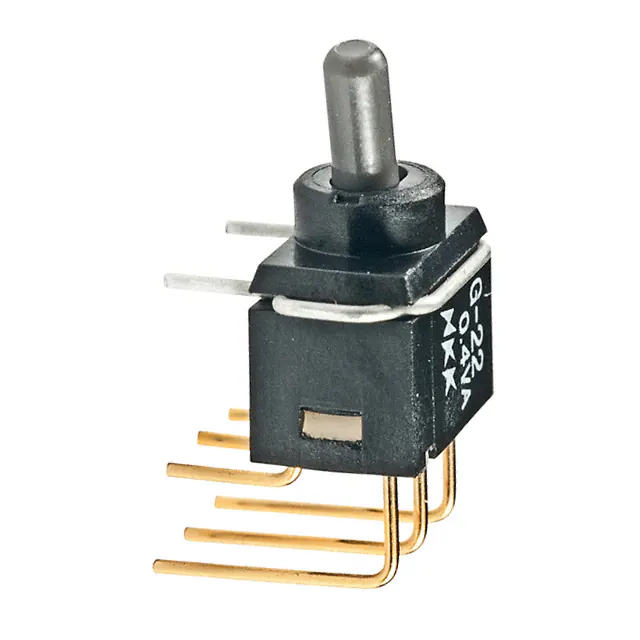

G22AHSWITCH TOGGLE DPDT 0.4VA 28V |
286 |
|
Datasheet |
G | Tray | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
ET115A-ZSWITCH TOGGLE SPST 15A 125V |
130 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.00mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | - |
|
G12JVFSWITCH TOGGLE SPDT 0.4VA 28V |
154 |
|
Datasheet |
G | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 3.80mm | Illuminated | LED, Green | 2.1 VDC | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|

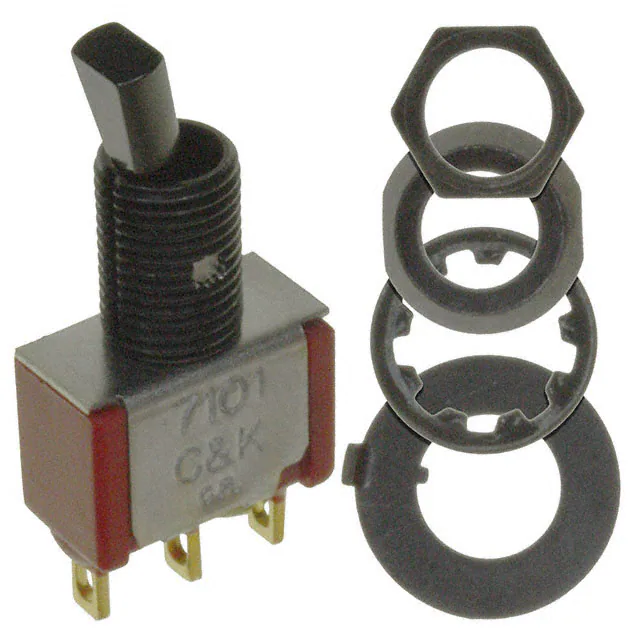

7101P4YZBE22SWITCH TOGGLE SPDT 0.4VA 20V |
334 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Black Actuator | -30°C ~ 85°C |
|

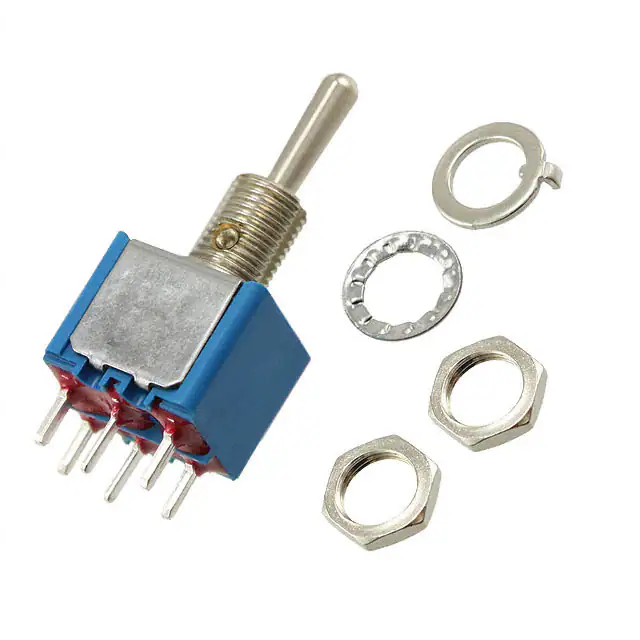

5249ABSWITCH TOGGLE DPDT 6A 125V |
127 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
