Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100SP1T8B13VS2REHSWITCH TOGGLE SPDT 0.4VA 20V |
710 |
|
Datasheet |
100 | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 18.00mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200AWMDP1T2A1M6QESWITCH TOGGLE DPDT 3A 120V |
211 |
|
Datasheet |
200A | Bulk | Active | Through Hole, Right Angle | DPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 6.10mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TMS3T5B2M7RESWITCH TOGGLE SPDT 0.4VA 20V |
610 |
|
Datasheet |
- | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 7.48mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
2M1-SP2-T2-B4-M6RESWITCH TOGGLE SPDT 0.4VA 20V |
181 |
|
Datasheet |
2M | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 5.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B12JHSWITCH TOGGLE SPDT 0.4VA 28V |
379 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
G15APSWITCH TOGGLE SPDT 0.4VA 28V |
736 |
|
Datasheet |
G | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
TMD1T4B5M2RESWITCH TOGGLE DPDT 0.4VA 20V |
317 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Process Sealed | -30°C ~ 85°C |
|

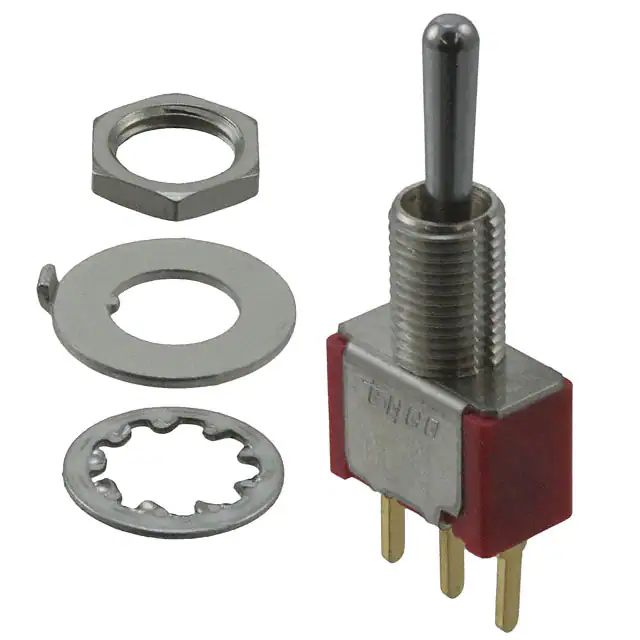

3-1825137-6SWITCH TOGGLE SPDT 0.4VA 20V |
505 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B15ABSWITCH TOGGLE SPDT 0.4VA 28V |
163 |
|
Datasheet |
B | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
8A1011C-ZSWITCH TOGGLE SPDT 25MA 20V |
1,395 |
|
Datasheet |
8A | Bulk | Active | Panel Mount | SPDT | 25mA (DC) | - | 20 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Sealed - Flux Protection | -30°C ~ 85°C |
|
B13AVSWITCH TOGGLE SPDT 0.4VA 28V |
3,220 |
|
Datasheet |
B | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
5-1825137-1SWITCH TOGGLE SPDT 5A 120V |
451 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP3T8B13VS2REHSWITCH TOGGLE SPDT 0.4VA 20V |
253 |
|
Datasheet |
100 | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 18.00mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7105CSWITCH TOGGLE SPST 6A 125V |
719 |
|
Datasheet |
7100 | Bulk | Active | Panel Mount | SPST | 6A (AC) | 125 V | - | On-Off | Standard Round | 14.27mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | - | - | -10°C ~ 65°C |
|

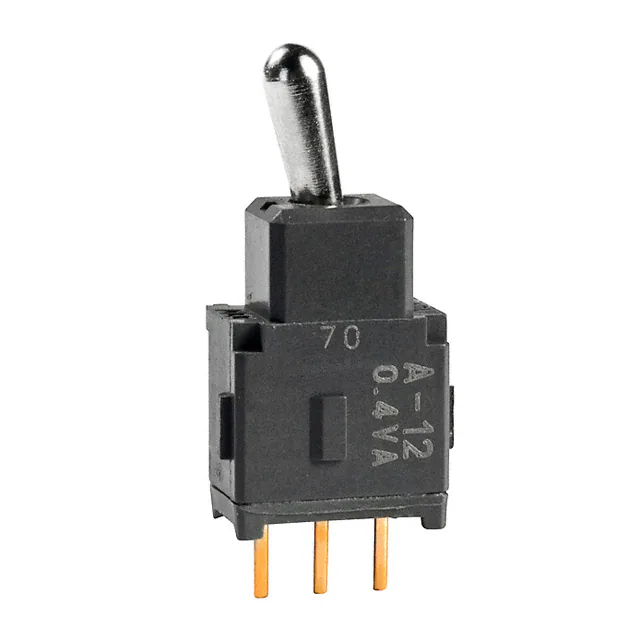

A12JPSWITCH TOGGLE SPDT 0.4VA 28V |
4,451 |
|
Datasheet |
A | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
8G1012-ZSWITCH TOGGLE SPDT 6A 125V |
115 |
|
Datasheet |
8G | Bulk | Active | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -30°C ~ 85°C |
|
B19APSWITCH TOGGLE SPDT 0.4VA 28V |
144 |
|
Datasheet |
B | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
5-1825136-9SWITCH TOGGLE SPDT 5A 120V |
160 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Flatted | 12.29mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7103SYCQE2SWITCH TOGGLE SPDT 5A 120V |
391 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Black Actuator | -30°C ~ 85°C |
|
1-1825139-6SWITCH TOGGLE DPDT 0.4VA 20V |
158 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
