Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2M1-SP3-T1-B1-M2QESWITCH TOGGLE SPDT 5A 125V |
507 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 10.40mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
A13APSWITCH TOGGLE SPDT 0.4VA 28V |
139 |
|
Datasheet |
A | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

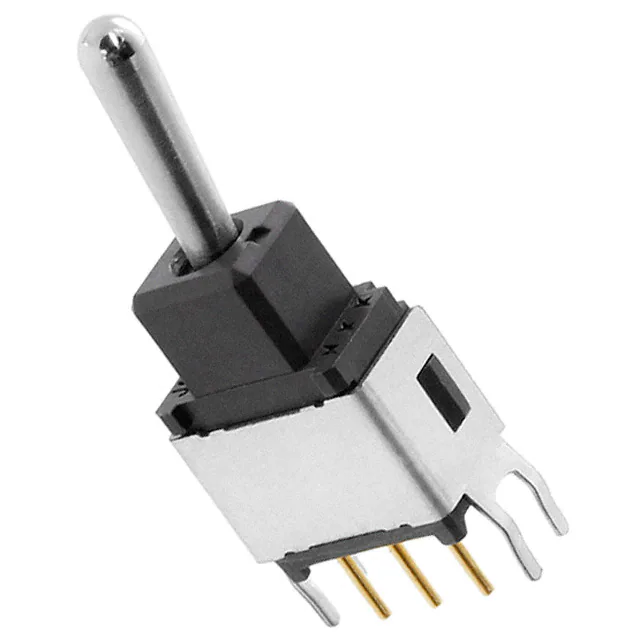

A12ABSWITCH TOGGLE SPDT 0.4VA 28V |
3,442 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
100DP6T1B4M7RESWITCH TOGGLE SP3T 0.4VA 20V |
319 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | SP3T | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
34CMSP31B2M7QTSWITCH TOGGLE SPDT 3A 125V |
217 |
|
Datasheet |
34C | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 3A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
A11JHSWITCH TOGGLE SPST 0.4VA 28V |
3,387 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
100DP1K1B25M1REHSWITCH TOGGLE DPDT 0.4VA 20V |
152 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Locking Lever | 14.40mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ZL36S010100SWITCH TOGGLE SPDT 500MA 48V |
105 |
|
Datasheet |
ZL | Bulk | Active | Panel Mount | SPDT | 500mA (AC/DC) | 48 V | 48 V | On-On | Standard Round | 5.50mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.90mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1-1825139-4SWITCH TOGGLE DPDT 5A 120V |
4,086 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Flatted | 12.29mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

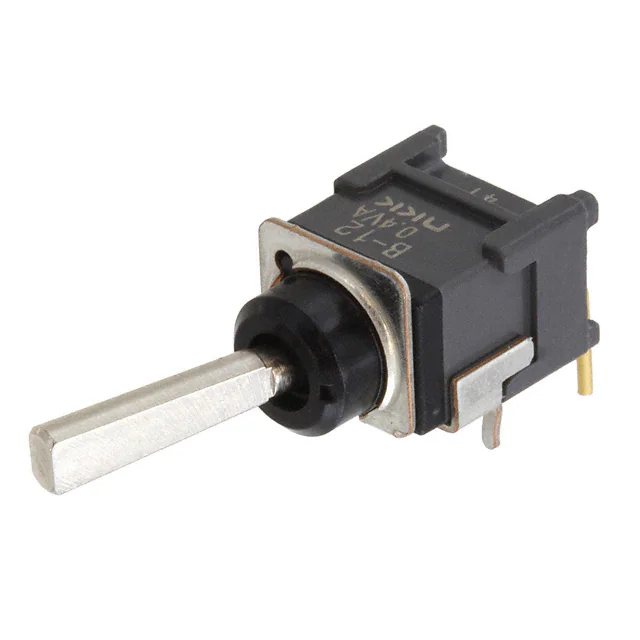

B12EHSWITCH TOGGLE SPDT 0.4VA 28V |
250 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP5T8B13VS2REHSWITCH TOGGLE SPDT 0.4VA 20V |
440 |
|
Datasheet |
100 | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 18.00mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP4T8B13M2REHSWITCH TOGGLE DPDT 0.4VA 20V |
635 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 18.00mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101CSWITCH TOGGLE SPDT 6A 125V |
151 |
|
Datasheet |
7100 | Bulk | Active | Panel Mount | SPDT | 6A (AC) | 125 V | - | On-On | Standard Round | 14.27mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | - | - | -10°C ~ 65°C |
|
ST163D00SWITCH TOGGLE SPDT 20A 125V |
215 |
|
Datasheet |
ST1 | Bulk | Active | Panel Mount | SPDT | 20A (AC) | 125 V | - | On-On | Standard Round | 19.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|
A12JHSWITCH TOGGLE SPDT 0.4VA 28V |
180 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
34DWMSP15B4M6RTSWITCH TOGGLE SPDT 0.4VA 20V |
324 |
|
Datasheet |
34D | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

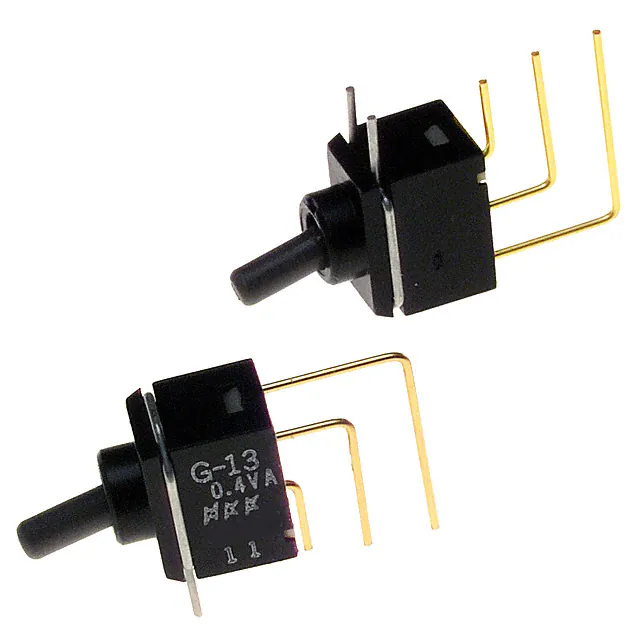

G13AVSWITCH TOGGLE SPDT 0.4VA 28V |
188 |
|
Datasheet |
G | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|

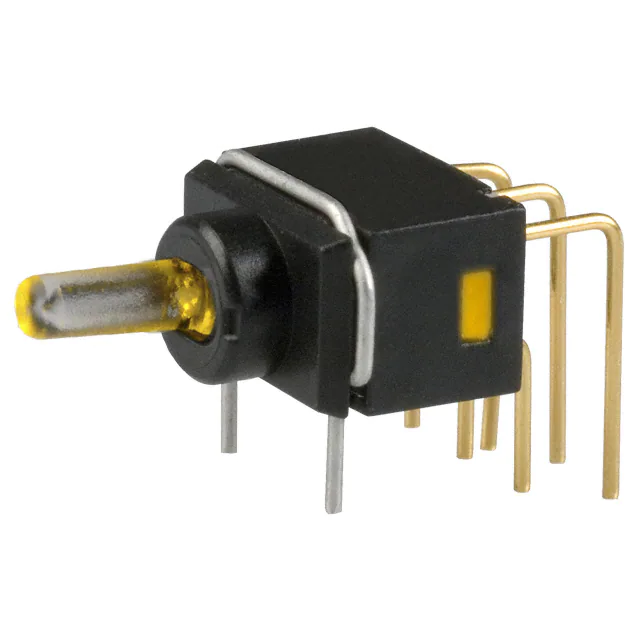

G12JHDSWITCH TOGGLE SPDT 0.4VA 28V |
496 |
|
Datasheet |
G | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 3.80mm | Illuminated | LED, Amber | 2 VDC | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
|
B19AVSWITCH TOGGLE SPDT 0.4VA 28V |
179 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

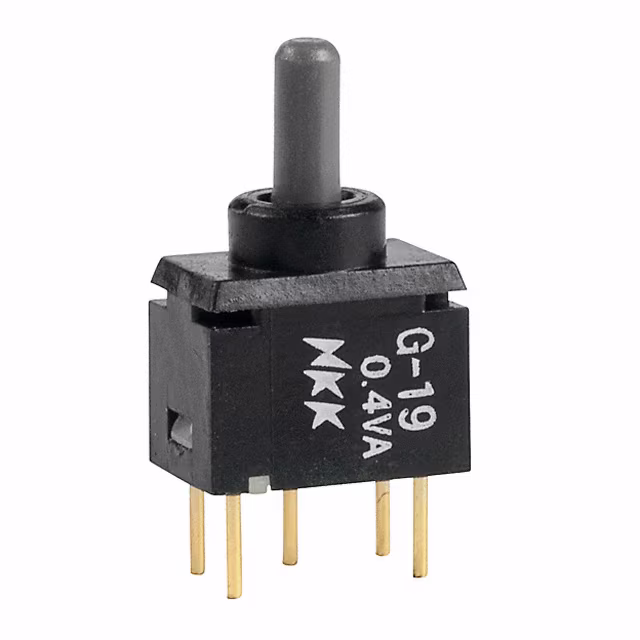

G19APSWITCH TOGGLE SPDT 0.4VA 28V |
130 |
|
Datasheet |
G | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
