Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100DP1T2B4M6RESWITCH TOGGLE DPDT 0.4VA 20V |
193 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TST 1 FSWITCH TOGGLE 1-POLE ON - MOM |
500 |
|
Datasheet |
TST | Bag | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 6.10mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
2-1825138-0SWITCH TOGGLE DPDT 5A 120V |
573 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 12.19mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

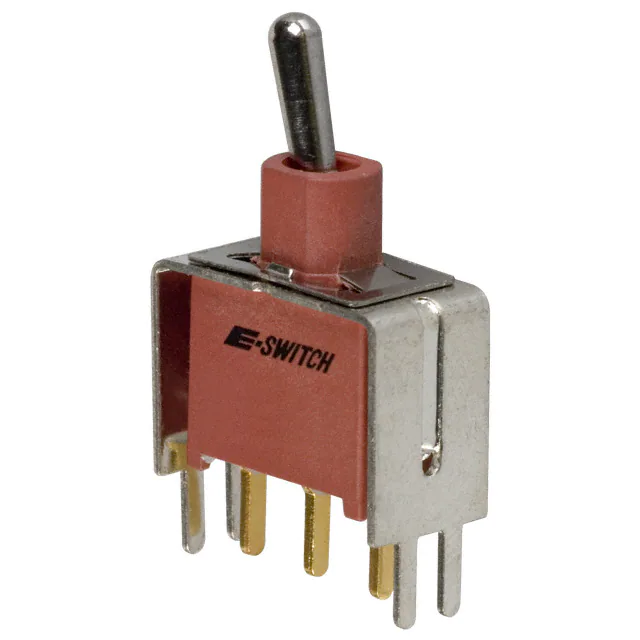

100AWSP1T2B4VS2RESWITCH TOGGLE SPDT 0.4VA 20V |
234 |
|
Datasheet |
100A | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP1T3B1M6REHSWITCH TOGGLE DPDT 0.4VA 20V |
983 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 13.97mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200MSP3T4B7M2QESWITCH TOGGLE SPDT 3A 120V |
129 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | SPDT | 3A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 11.68mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200MDP1T2B2M6RESWITCH TOGGLE DPDT 0.4VA 20V |
517 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1-1825137-9SWITCH TOGGLE SPDT 0.4VA 20V |
111 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100AWSP1T1B4VS3QESWITCH TOGGLE SPDT 5A 120V |
181 |
|
Datasheet |
100A | Bulk | Active | Through Hole | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200MDP1T5B5M1QEHSWITCH TOGGLE DPDT 3A 120V |
300 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | DPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 5.59mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TMD1T4B5M1QESWITCH TOGGLE DPDT 3A 120V |
454 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Process Sealed | -30°C ~ 85°C |
|
TMS1T4B5M2RESWITCH TOGGLE SPDT 0.4VA 20V |
256 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Process Sealed | -30°C ~ 85°C |
|
GT13MSCBESWITCH TOGGLE SPDT 0.4VA 20V |
136 |
|
Datasheet |
GT | Tape & Reel (TR) | Active | Surface Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 3.81mm | Non-Illuminated | - | - | - | Gull Wing | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200AWMDP1T1A1M2RESWITCH TOGGLE DPDT 0.4VA 20V |
351 |
|
Datasheet |
200A | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.16mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP4T6B11M2QEHSWITCH TOGGLE DPDT 5A 120V |
479 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
CFT2-1DC4-AWSWITCH TOGGLE SPDT 0.4VA 28V |
109 |
|
Datasheet |
CFT2 | Tray | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable, Gray Actuator | -40°C ~ 85°C |
|
ATE1D-2F3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
133 |
|
Datasheet |
ATE | Tray | Active | Through Hole | SPDT | 50mA (AC/DC) | 48 V | 48 V | On-On | Flatted | 10.00mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable | -20°C ~ 85°C |
|
100DP3T1B4M7QESWITCH TOGGLE DPDT 5A 120V |
687 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1825139-8SWITCH TOGGLE DPDT 0.4VA 20V |
451 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100AWSP1T2B4M7RESWITCH TOGGLE SPDT 0.4VA 20V |
178 |
|
Datasheet |
100A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
