| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN12SS2W30SWITCH TOGGLE |
4,651 |
|
Datasheet |
M | Bulk | Active | Through Hole, Right Angle | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
MN12ES2W13BRACKET PC MOUNT MINIATURE TOGGL |
3,700 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN12S3S2W30ANGLE PC MOUNT MINIATURE TOGGLE |
3,544 |
|
Datasheet |
M | Bulk | Active | Through Hole, Right Angle | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 6.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | - |
|
|
MN22ES4W01SWITCH TOGGLE |
1,621 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
T102P3T9V3BESWITCH TOGGLE SPST 0.4VA 20V |
4,476 |
|
Datasheet |
T | Tray | Active | Through Hole | SPST | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Flat Anti-Rotation | 12.45mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7108P3HCQESWITCH TOGGLE SPDT 5A 120V |
4,515 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET08MD1AVBESWITCH TOGGLE SPDT 0.4VA 20V |
4,149 |
|
Datasheet |
ET | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 6.10mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101K2AV2QE2SWITCH TOGGLE SPDT 5A 120V |
2,199 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Black Anodized | -30°C ~ 85°C |
|
|
2GA54-D-4B-BSWITCH TOGGLE SPST 15A 125V |
1,551 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Paddle | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2FA54-63SWITCH TOGGLE SPST 15A 125V |
4,158 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 14.28mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
SF32S00000016SWITCH TOGGLE SPDT 0.4VA 20V |
3,138 |
|
Datasheet |
SF | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 11.00mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Red Cap | -20°C ~ 85°C |
|
|
7107P3YCQESWITCH TOGGLE SPDT 5A 28V |
2,216 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
U27L1PDV3QESWITCH TOGGLE DPDT 5A 120V |
4,666 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Anti-Rotation | 18.04mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101P1YCQESWITCH TOGGLE SPDT 5A 120V |
3,683 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 21.33mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

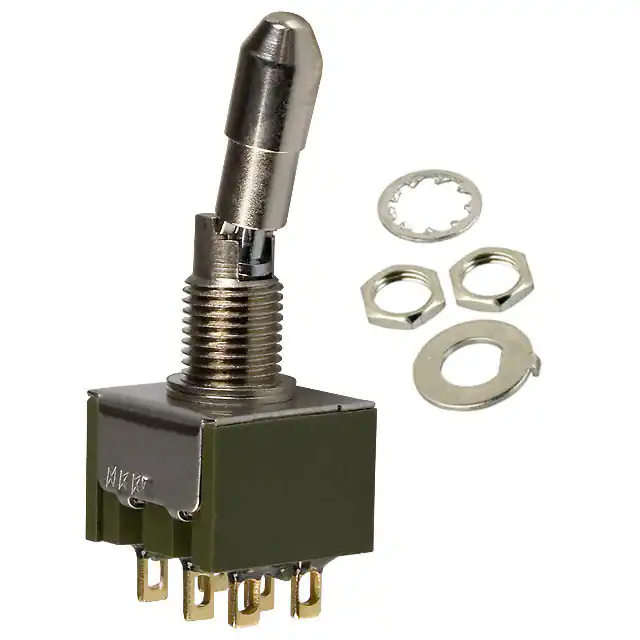

M2022LL1G01SWITCH TOGGLE DPDT 0.4VA 28V |
3,418 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101P4HW5QESWITCH TOGGLE SPDT 5A 120V |
1,042 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7103L2PCWZQESWITCH TOGGLE SPDT 5A 120V |
1,958 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Anti-Rotation | 13.97mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101K12ZQE3SWITCH TOGGLE SPDT 5A 120V |
1,662 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 18.59mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Red Anodized | -30°C ~ 85°C |
|
|
7207SY3ZBESWITCH TOGGLE DPDT 0.4VA 20V |
1,436 |
|
Datasheet |
7000 | Tray | Last Time Buy | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E107SD1V3BESWITCH TOGGLE SPDT 0.4VA 20V |
1,195 |
|
Datasheet |
E | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
