| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7101P1YCBESWITCH TOGGLE SPDT 0.4VA 20V |
2,302 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flat Anti-Rotation | 21.33mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
MN12SD8G01SWITCH TOGGLE |
4,729 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
MN15SD8G01SWITCH TOGGLE |
3,740 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | - | -30°C ~ 85°C |
|
|
7101P3DV61QESWITCH TOGGLE SPDT 5A 120V |
3,514 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TL48Y000050TOGGLE SWITCH SMT TL PCB MOUNT |
1,350 |
|
Datasheet |
TL | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 5.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
7203SH3ZBESWITCH TOGGLE DPDT 0.4VA 20V |
3,210 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 10.16mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2GC56-D-2B-BSWITCH TOGGLE SPDT 15A 125V |
3,000 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | On-Off-On | - | 17.45mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2GC56-73SWITCH TOGGLE SPDT 15A 125V |
4,371 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5632AB9X681TOGGLE SWITCH 5000 MINIATURE |
3,857 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
M2022LL4W01/USWITCH TOGGLE DPDT 6A 125V |
1,169 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

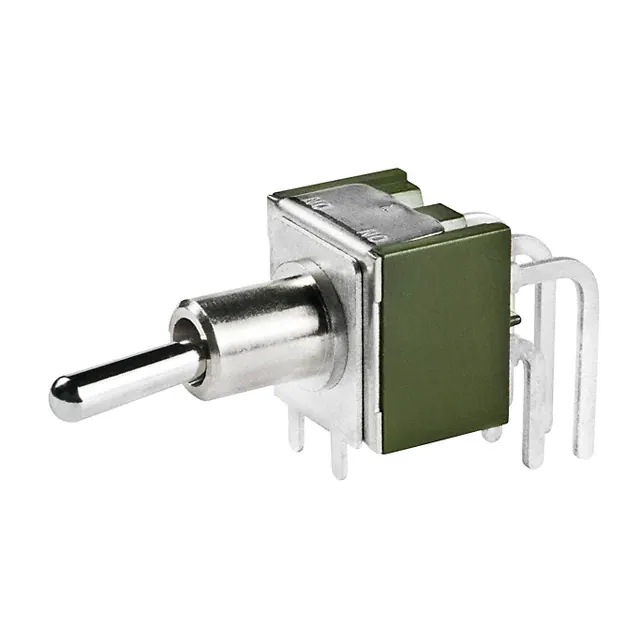

M2022SS2W30SWITCH TOGGLE DPDT 6A 125V |
1,276 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7103T1CWZBESWITCH TOGGLE SPDT 0.4VA 20V |
1,872 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 12.37mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101K12ZGETOGGLE SWITCHES |
4,532 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Locking Lever | 18.59mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
2GC50-NBL3SWITCH TOGGLE SPDT 15A 125V |
4,048 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | On-Off-On | Paddle | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2GB51-NBL3SWITCH TOGGLE SPDT 15A 125V |
1,641 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | On-On | Paddle | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2GA725-D-3B-BSWITCH TOGGLE SPST 20A 125V |
3,064 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPST | 20A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Wire Leads | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2GA725-D-1B-BSWITCH TOGGLE SPST 20A 125V |
1,398 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPST | 20A (AC) | 125 V | - | On-Off | - | 17.45mm | Non-Illuminated | - | - | - | Wire Leads | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
7201MYCBESWITCH TOGGLE DPDT 0.4VA 20V |
4,796 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2FA63-62/TABS/2 HEXSWITCH TOGGLE SPST 6A 125V |
2,789 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPST | 6A (AC) | 125 V | - | On-Off | - | - | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
3-1571920-9SWITCH TOGGLE 4PDT 6A 125V |
2,555 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 10.49mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
