| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

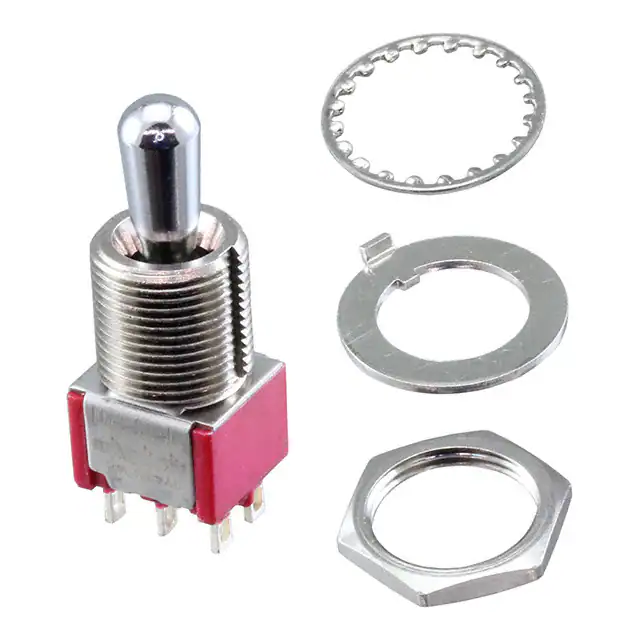

7211T1ZQESWITCH TOGGLE SP3T 5A 120V |
1,356 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 12.37mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
SW236A13SWITCH TOGGLE SPDT 5A 125V |
1,599 |
|
Datasheet |
S | Bulk | Active | Through Hole, Right Angle | SPDT | 5A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 13.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Sealed | -20°C ~ 85°C |
|
|
5248ABSWITCH TOGGLE DPDT 6A 125V |
2,926 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
7109P3YZGISWITCH TOGGLE SPDT 0.4VA 20V |
4,835 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
3-1571920-8SWITCH TOGGLE 4PDT 6A 125V |
2,396 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
M2022LL1G03SWITCH TOGGLE DPDT 0.4VA 28V |
4,474 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A127S1YZBSWITCH TOGGLE SPDT 0.5VA 28V |
2,185 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | 0.5VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A121S1D9AV2BSWITCH TOGGLE SPDT 0.5VA 28V |
4,502 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.5VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
M2024LL3W01SWITCH TOGGLE SP3T 6A 125V |
2,955 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
S301T/CSWITCH TOGGLE SPST 15A 125V |
4,269 |
|
Datasheet |
S300 | Bulk | Obsolete | Panel Mount | SPST | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
MN23SS2W13SWITCH TOGGLE |
3,481 |
|
Datasheet |
M | Bulk | Active | Through Hole | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
7101K19AW4BESWITCH TOGGLE SPDT 0.4VA 20V |
3,599 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Locking Lever | 18.59mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
|
S3901BESWITCH TOGGLE SPST-NO 16A 125V |
2,554 |
|
Datasheet |
3900 | Bulk | Active | Panel Mount | SPST-NO | 16A (AC), 14A (DC) | 125 V | 36 V | Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | - |
|
|
5236MIWRCDBSWITCH TOGGLE SPDT 0.4VA 20V |
4,971 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
T102SH9CQESWITCH TOGGLE SPST 2A 120V |
4,194 |
|
Datasheet |
T | Tray | Active | Through Hole | SPST | 2A (AC/DC) | 120 V | 28 V | On-Off | Standard Round | 9.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7201SPY1ZQESWITCH TOGGLE DPDT 5A 28V |
1,057 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
1004P6T9B1M7RESWITCH TOGGLE DP3T 0.4VA 20V |
3,706 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle, Vertical | DP3T | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Standard Round | 21.34mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
2FC53-78/TABS/HDW ASSMSWITCH TOGGLE SPDT 15A 125V |
2,358 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
2GC51-78SWITCH TOGGLE SPDT 15A 125V |
3,675 |
|
Datasheet |
G | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2FB41-73SWITCH TOGGLE SPDT |
2,298 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPDT | - | - | - | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Wire Leads | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
