| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7211SDZQESWITCH TOGGLE SP3T 5A 120V |
3,830 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 12.45mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
5239WWAB16X386TOGGLE SWITCH 5000 MINIATURE |
4,894 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
7101P3HZGISWITCH TOGGLE SPDT 5A 120V |
3,982 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Potted | -30°C ~ 85°C |
|
|
2GK56-73SWITCH TOGGLE DPST 15A 125V |
4,228 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
7201MDV61QESWITCH TOGGLE DPDT 5A 120V |
4,194 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ET21MD1V3QESWITCH TOGGLE DPDT 3A 28V |
3,288 |
|
Datasheet |
ET | Bulk | Active | Through Hole | DPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 6.10mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
T205SHZQESWITCH TOGGLE DPDT 2A 120V |
2,858 |
|
Datasheet |
T | Tray | Obsolete | Panel Mount | DPDT | 2A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 9.40mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101K2V7BESWITCH TOGGLE SPDT 0.4VA 20V |
3,428 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
S6A/USWITCH TOGGLE DPDT 20A 125V |
3,566 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
TL32WW05000SWITCH TOGGLE SPDT 0.4VA 20V |
2,545 |
|
Datasheet |
TL | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Mom | Standard Round | 5.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2049SS2W40/CULSWITCH TOGGLE 4PDT 6A 125V |
1,027 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | 4PDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7207MCWABESWITCH TOGGLE DPDT 0.4VA 20V |
4,502 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 5.08mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
110-B-67SWITCH TOGGLE SPST 6A 125V |
2,429 |
|
Datasheet |
110 | Bulk | Active | Panel Mount | SPST | 6A (AC/DC) | 125 V | 125 V | On-Off | Standard Round | 12.70mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
110-B-52SWITCH TOGGLE SPST 6A 125V |
1,639 |
|
Datasheet |
110 | Bulk | Active | Panel Mount | SPST | 6A (AC/DC) | 125 V | 125 V | On-Off | Standard Round | 9.53mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
5644THCDTOGGLE SWITCH 5000 MINIATURE |
3,910 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5644CT1RCDTOGGLE SWITCH 5000 MINIATURE |
1,632 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DP3T | 0.4VA (AC/DC) | 20 V | 20 V | On-On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
5644THCD16TOGGLE SWITCH 5000 MINIATURE |
3,433 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7201P3D9ABESWITCH TOGGLE DPDT 0.4VA 20V |
3,267 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7201MPDZQESWITCH TOGGLE DPDT 5A 120V |
1,036 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Anti-Rotation | 6.86mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

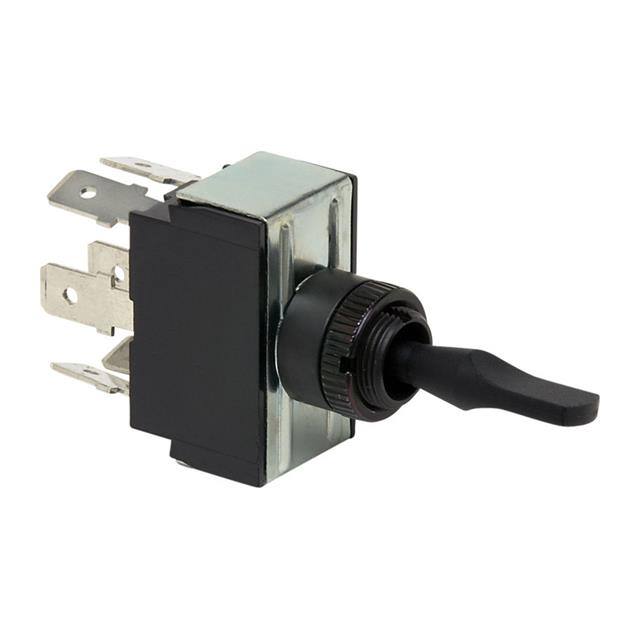

59024-15SWITCH TOGGLE DPDT 25A 12V |
2,382 |
|
Datasheet |
59024 | Bulk | Active | Panel Mount | DPDT | 25A (DC) | - | 12 V | On-Off-On | Paddle | 25.40mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 11.90mm Dia | - | - |
