| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7211LY9ABESWITCH TOGGLE SP3T 0.4VA 20V |
3,800 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle | SP3T | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Standard Round | 21.34mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7203T1CGESWITCH TOGGLE DPDT 5A 120V |
2,857 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 12.37mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TL46W000000SWITCH TOGGLE DPDT 0.4VA 20V |
1,885 |
|
Datasheet |
TL | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.30mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
6FC53-73/TABS/2 HEX/HDW ASSMSWITCH TOGGLE SPDT 15A 125V |
3,854 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
T201SHZGESWITCH TOGGLE DPDT 3A 120V |
4,616 |
|
Datasheet |
T | Tray | Obsolete | Panel Mount | DPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MTB106DSWITCH TOGGLE SPDT 6A 125V |
2,519 |
|
Datasheet |
MTB Green | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 15.20mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
7103K9ABESWITCH TOGGLE SPDT 0.4VA 20V |
1,746 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2GK51-63SWITCH TOGGLE DPST 15A 125V |
4,174 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 14.28mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2GK51-D-4B-BSWITCH TOGGLE DPST 15A 125V |
2,631 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPST | 15A (AC) | 125 V | - | On-Off | Paddle | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2GK50-D-4B-BSWITCH TOGGLE DPST 15A 125V |
3,634 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPST | 15A (AC) | 125 V | - | On-Off | Paddle | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2GK51-73/272-06747SWITCH TOGGLE DPST 15A 125V |
1,280 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2GK50-63SWITCH TOGGLE DPST 15A 125V |
2,495 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 14.28mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
2GK51-63/2 HEXSWITCH TOGGLE DPST 15A 125V |
3,638 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 14.28mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
BP/STESWITCH TOGGLE SPST 15A 12V |
1,705 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST | 15A (DC) | - | 12 V | On-Off | Standard Round | - | Non-Illuminated | - | - | - | - | - | - | - | - |
|

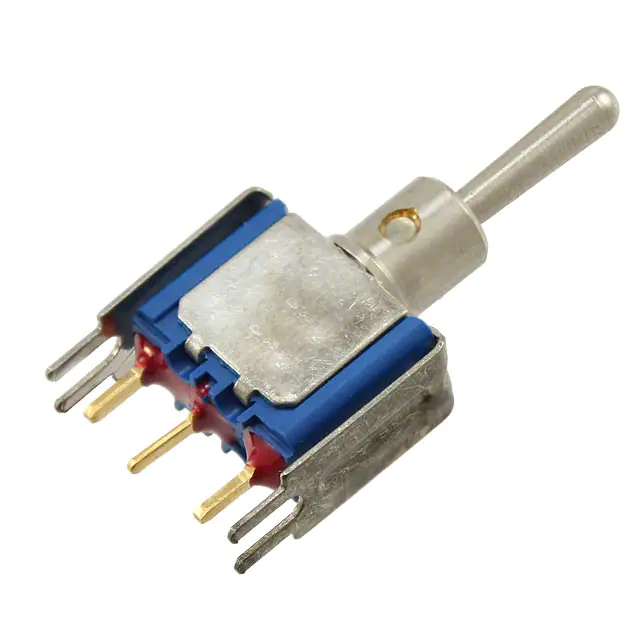

5237YCDBX445SWITCH TOGGLE SPDT 0.4VA 20V |
4,613 |
|
Datasheet |
5000 | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
7201P3Y9CBESWITCH TOGGLE DPDT 0.4VA 20V |
4,947 |
|
Datasheet |
7000 | Tray | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E213SYCBESWITCH TOGGLE SP3T 0.4VA 20V |
1,900 |
|
Datasheet |
E | Bulk | Active | Panel Mount | SP3T | 0.4VA (AC/DC) | 20 V | 20 V | On-On-Mom | Standard Round | 10.16mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
SF39S011100TOGGLE SWITCH S PCB MOUNT |
1,657 |
|
Datasheet |
SF | Bulk | Active | Panel Mount | SPDT | 4A (DC) | - | 30 V | On-Off-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -20°C ~ 85°C |
|
|
E205SD1CQESWITCH TOGGLE DPDT 7.5A 125V |
1,588 |
|
Datasheet |
E | Tray | Active | Through Hole | DPDT | 7.5A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 12.70mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2113TCW01SWITCH TOGGLE SPDT 6A 125V |
1,969 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -10°C ~ 55°C |
