| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A123M1YZBSWITCH TOGGLE SPDT 0.5VA 28V |
2,116 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | 0.5VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A123S1D9AQSWITCH TOGGLE SPDT 6A 125V |
2,918 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPDT | 6A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A123S1DABSWITCH TOGGLE SPDT 0.5VA 28V |
3,245 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle | SPDT | 0.5VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A131M1D9ABSWITCH TOGGLE SPDT 0.5VA 28V |
2,469 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPDT | 0.5VA (AC/DC) | 28 V | 28 V | On-Off-Mom | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A134S1YCQSWITCH TOGGLE SPDT 6A 125V |
1,613 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | 6A (AC/DC) | 125 V | 28 V | On-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
MN26SS2G13BRACKET PC MOUNT MINIATURE TOGGL |
3,660 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7203TPCQESWITCH TOGGLE DPDT 5A 120V |
4,458 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Anti-Rotation | 17.45mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MTF226NSWITCH TOGGLE DPDT 6A 125V |
2,310 |
|
Datasheet |
MTF Green | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Flatted | 12.32mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
7211MD9AGESWITCH TOGGLE SP3T 5A 120V |
1,177 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

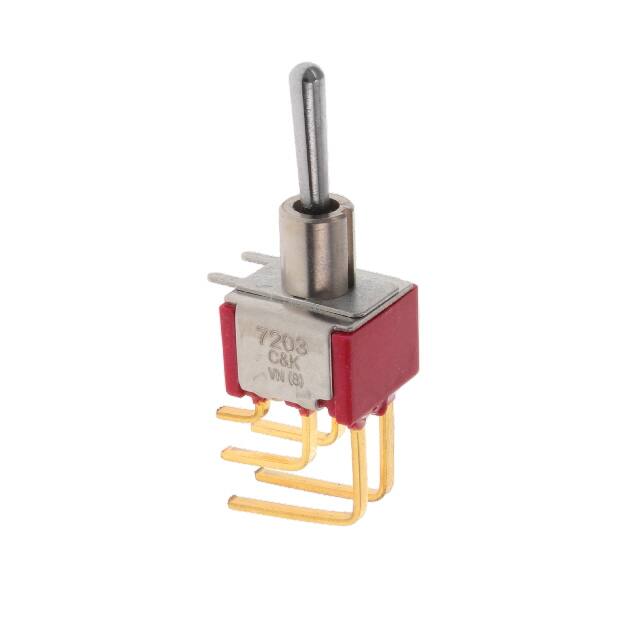

7203SD9AV2BESWITCH TOGGLE DPDT 0.4VA 20V |
1,956 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 12.45mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7203SYAV2BESWITCH TOGGLE DPDT 0.4VA 20V |
1,250 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
U15TCWCQISWITCH TOGGLE SPDT 5A 28V |
3,380 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | 15/32-32 | Circular - 11.91mm Dia | - | -30°C ~ 85°C |
|
|
5246AB25X902ULCSASWITCH TOGGLE DPDT 6A 125V |
4,154 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 16.30mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5648ABULCSASWITCH TOGGLE DPDT 6A 125V |
1,629 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5647ABULCSASWITCH TOGGLE DPDT 6A 125V |
2,682 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
2GG51-68SWITCH TOGGLE DPDT 15A 125V |
3,523 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-On-Off | Standard Round | 14.28mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
MTE106GSWITCH TOGGLE SPDT 6A 125V |
4,571 |
|
Datasheet |
MTE Green | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
5237WWCDB16X386TOGGLE SWITCH 5000 MINIATURE |
3,286 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Mom-Off-Mom | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
MN18BB1G01-AT402SBUSHING MOUNT MINIATURE TOGGLE |
1,716 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MN25S3A2G13SWITCH TOGGLE |
1,726 |
|
Datasheet |
M | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Mom | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
