| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2GK54-D-3B-BSWITCH TOGGLE DPST 15A 125V |
2,241 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
6FC63-63SWITCH TOGGLE SPDT 6A 125V |
4,477 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPDT | 6A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 14.28mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
6FC67-63/TABSSWITCH TOGGLE SPDT 6A 125V |
2,661 |
|
Datasheet |
F | Bulk | Active | Panel Mount | SPDT | 6A (AC) | 125 V | - | On-Off-Mom | Standard Round | 14.28mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
7207SPYWQESWITCH TOGGLE DPDT 5A 120V |
2,874 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7201SH3APESWITCH TOGGLE DPDT 0.4VA 20V |
1,387 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.16mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
631HLUXETOGGLE SWITCH 600H HIGH POWER |
1,314 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

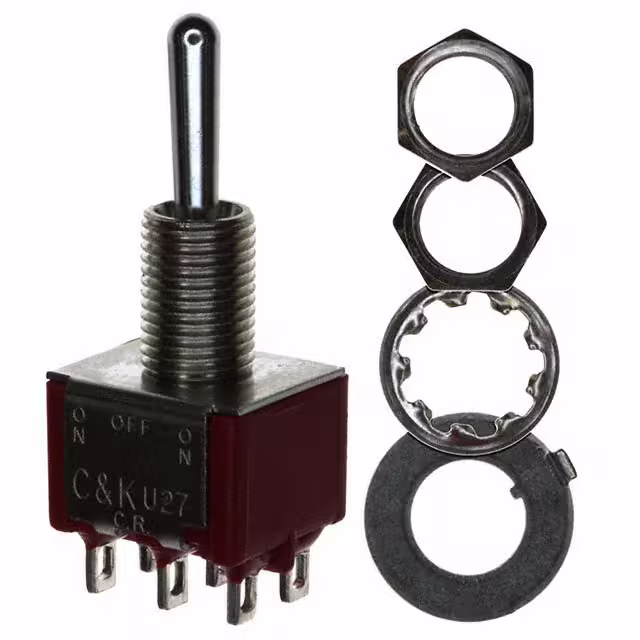

U27SYZQESWITCH TOGGLE DPDT 5A 120V |
1,410 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
631H/2X2268TOGGLE SWITCH 600H HIGH POWER |
2,110 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7205P4YZ3QESWITCH TOGGLE DPDT 5A 120V |
1,321 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Flat Anti-Rotation | 6.35mm | Non-Illuminated | - | - | - | Quick Connect - 0.062" (1.5mm) | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
D22018LBSWITCH TOGGLE SPDT 0.4VA 48V |
3,273 |
|
Datasheet |
D2 | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 48 V | 48 V | Mom-Off-Mom | Locking Lever | 19.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -10°C ~ 70°C |
|
|
D22019LBSWITCH TOGGLE SPDT 0.4VA 48V |
3,405 |
|
Datasheet |
D2 | Bulk | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 48 V | 48 V | On-Off-Mom | Locking Lever | 19.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -10°C ~ 70°C |
|
|
D22023VSWITCH TOGGLE DPDT 0.4VA 48V |
2,205 |
|
Datasheet |
D2 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 48 V | 48 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -10°C ~ 70°C |
|
|
D22025VSWITCH TOGGLE DPDT 0.4VA 48V |
3,813 |
|
Datasheet |
D2 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 48 V | 48 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -10°C ~ 70°C |
|
E207MD1ABESWITCH TOGGLE DPDT 0.4VA 20V |
3,448 |
|
Datasheet |
E | Bulk | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-Mom | Standard Round | 7.62mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7201P3D9AV2QESWITCH TOGGLE DPDT 5A 120V |
4,803 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
A121P41D9AV2BSWITCH TOGGLE SPDT 0.5VA 28V |
4,670 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.5VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 6.35mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A121S1Y9V30QSWITCH TOGGLE SPDT 6A 125V |
3,941 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 6A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A121S1Y9V60QSWITCH TOGGLE SPDT 6A 125V |
4,697 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | 6A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A123M1D9AV2BSWITCH TOGGLE SPDT 0.5VA 28V |
2,662 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.5VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A123M1D9AVBSWITCH TOGGLE SPDT 0.5VA 28V |
2,220 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | SPDT | 0.5VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
