Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
637H/2SWITCH TOGGLE SPDT 10A 250V |
5,602 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SPDT | 10A (AC) | 250 V | - | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|

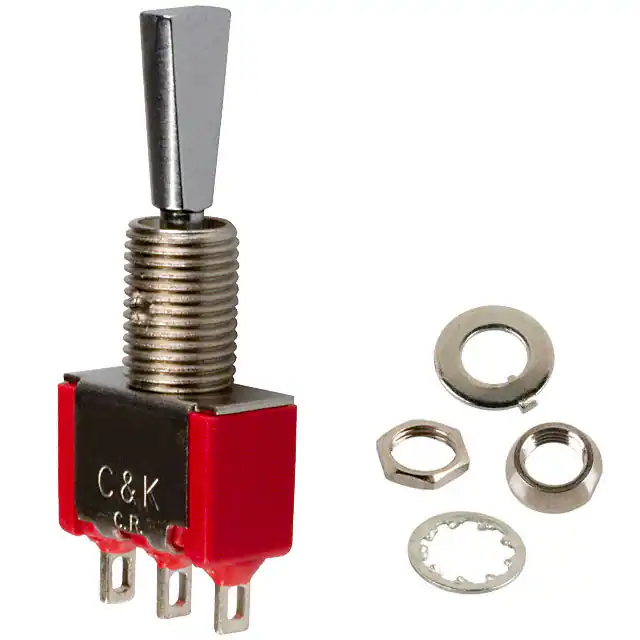

7101P3YZQESWITCH TOGGLE SPDT 5A 120V |
450 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S308SWITCH TOGGLE SPDT 15A 125V |
311 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | SPDT | 15A (AC), 20A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|

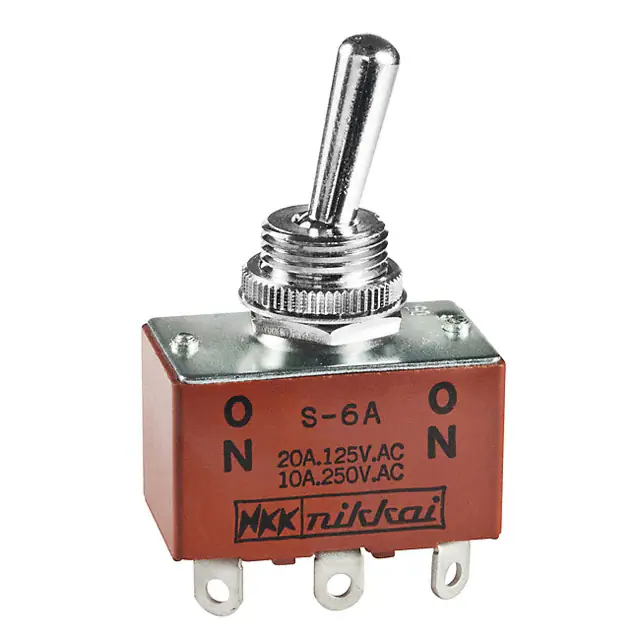

S6ASWITCH TOGGLE DPDT 20A 125V |
177 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
S332SWITCH TOGGLE DPDT 25A 125V |
1,270 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPDT | 25A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
7105TCWZQESWITCH TOGGLE SPDT 5A 120V |
2,231 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7211SYCQESWITCH TOGGLE SP3T 5A 120V |
28,496 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | 5A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

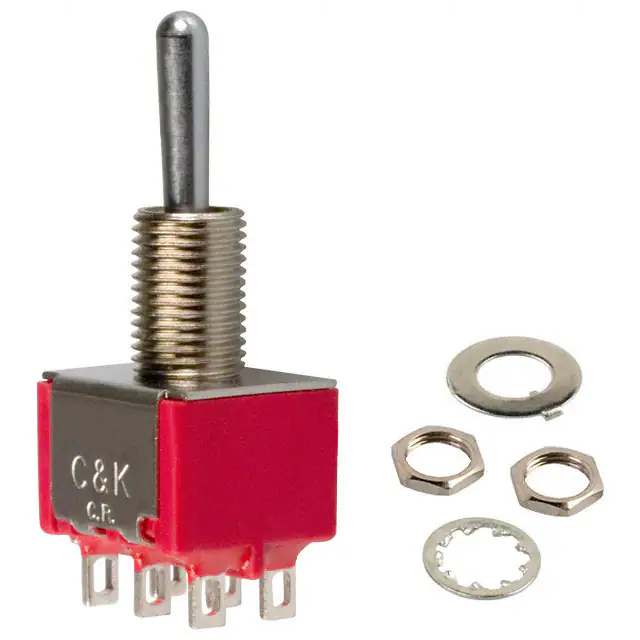

7201SYZQESWITCH TOGGLE DPDT 5A 120V |
616 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

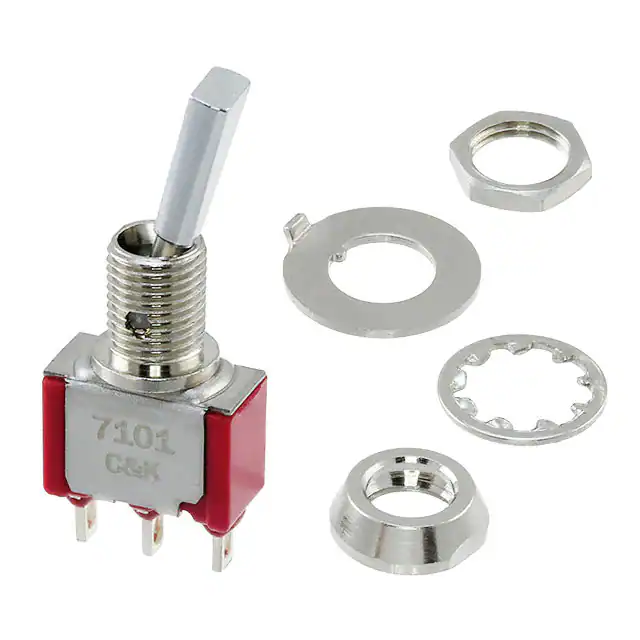

7101P3HZQESWITCH TOGGLE SPDT 5A 120V |
1,610 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7201SYCQESWITCH TOGGLE DPDT 5A 120V |
379 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.67mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101K2ZQESWITCH TOGGLE SPDT 5A 120V |
723 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201TZQESWITCH TOGGLE DPDT 5A 120V |
3,453 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1NT1-2SWITCH TOGGLE SPST 15A 125V |
3,489 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.02mm | Non-Illuminated | - | - | IP67/IP68 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 71°C |
|

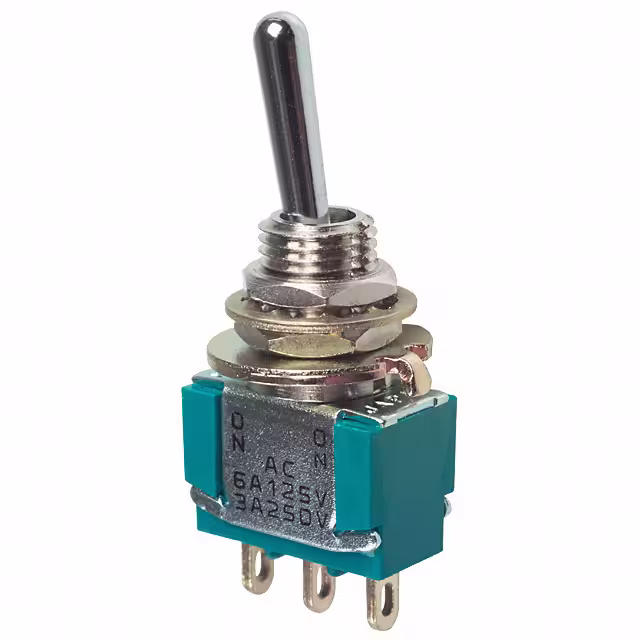

MTA106DSWITCH TOGGLE SPDT 6A 125V |
2,049 |
|
Datasheet |
MTA Green | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 28 V | On-On | Standard Round | 10.49mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.40mm Dia | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
MN22S2A2G40SWITCH TOGGLE |
1,556 |
|
Datasheet |
M | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -30°C ~ 85°C |
|
111-16-73SWITCH TOGGLE SPST 6A 125V |
638 |
|
Datasheet |
110 | Bulk | Active | Panel Mount | SPST | 6A (AC/DC) | 125 V | 125 V | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Wire Leads | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
7105TZQESWITCH TOGGLE SPDT 5A 120V |
950 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201MD9ABESWITCH TOGGLE DPDT 0.4VA 20V |
268 |
|
Datasheet |
7000 | Tray | Active | Through Hole, Right Angle | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

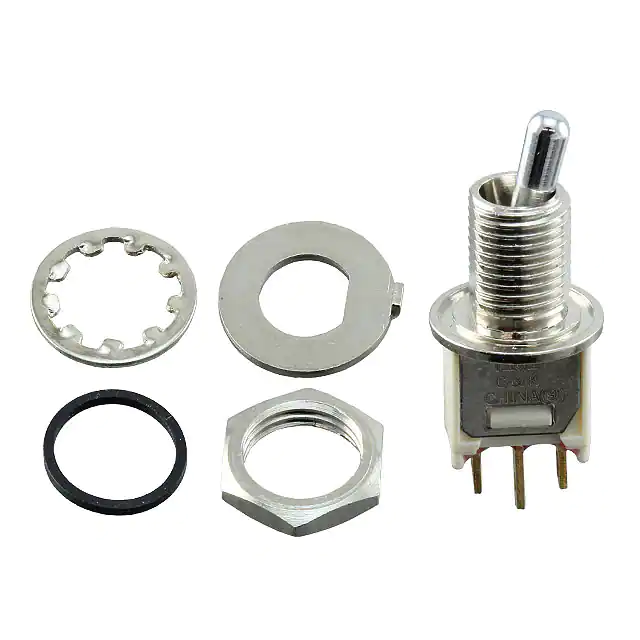

T101LCFZBESWITCH TOGGLE SPDT 0.4VA 20V |
335 |
|
Datasheet |
T | Bag | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 5.08mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S331FSWITCH TOGGLE DPST 20A 125V |
1,200 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | DPST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
