Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5582-10SWITCH TOGGLE SPST 25A 12V |
222 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST | 25A (DC) | - | 12 V | On-Off | Standard Round | 17.46mm | Non-Illuminated | - | - | - | Wire Leads | 15/32-32 | Circular - 11.90mm Dia | - | - |
|
S41FSWITCH TOGGLE 4PST 20A 125V |
218 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|

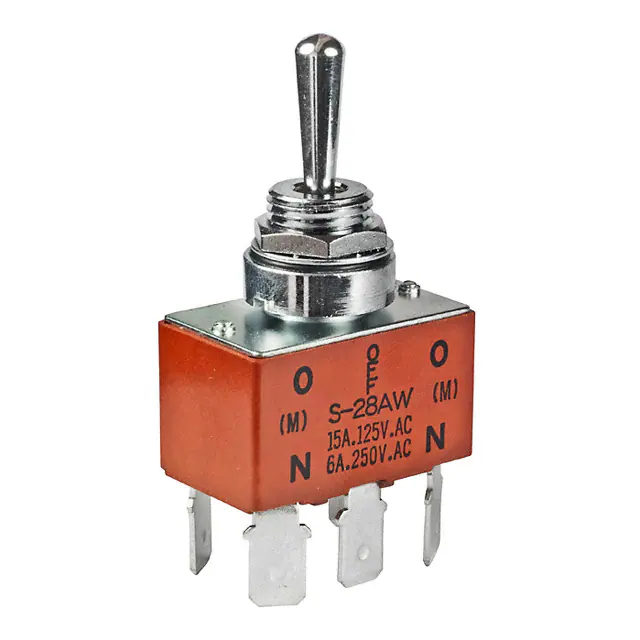

S28AWFSWITCH TOGGLE DPDT 15A 125V |
220 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 15A (AC), 20A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 70°C |
|
S21ALSWITCH TOGGLE DPST 15A 125V |
144 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPST | 15A (AC), 20A (DC) | 125 V | 30 V | On-Off | Locking Lever | 23.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 70°C |
|
S42FSWITCH TOGGLE 4PDT 20A 125V |
356 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
S6ALSWITCH TOGGLE DPDT 20A 125V |
490 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-On | Locking Lever | 23.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 70°C |
|
|
S7ALSWITCH TOGGLE DPDT 20A 125V |
233 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Locking Lever | 23.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 70°C |
|
MN18WBW01SWITCH TOGGLE |
487 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 20.00mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
WT21SSWITCH TOGGLE DPST 10A 125V |
109 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | DPST | 10A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
S822SWITCH TOGGLE DPDT 30A 125V |
954 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 30A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 22.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|

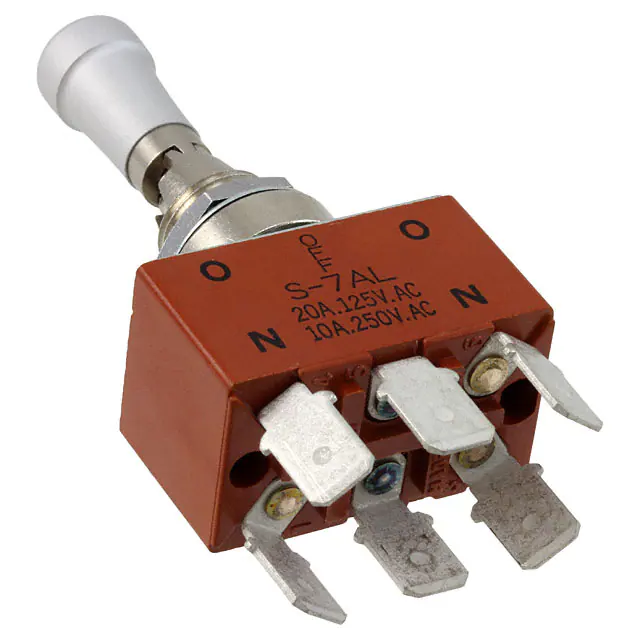

S7ALFSWITCH TOGGLE DPDT 20A 125V |
113 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Locking Lever | 23.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 70°C |
|

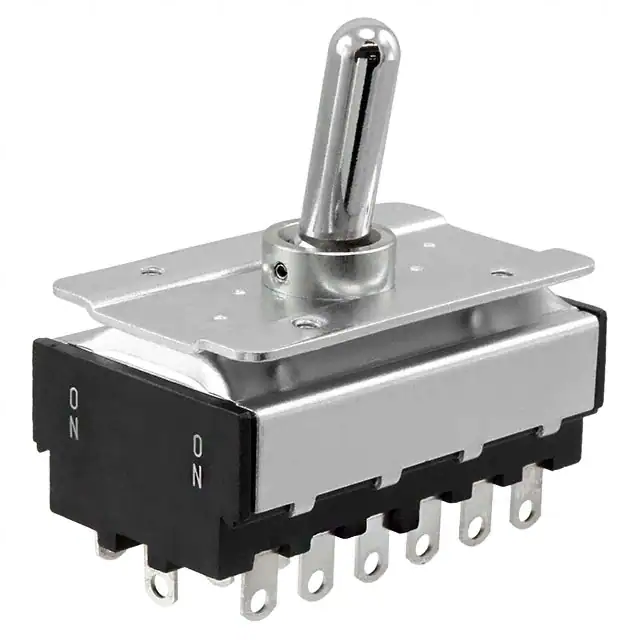

ET610N13-ZSWITCH TOGGLE 6PDT 10A 125V |
122 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | 6PDT | 10A (AC) | 125 V | - | On-On | Standard Round | 27.00mm | Non-Illuminated | - | - | - | Solder Lug | Unthreaded | Circular - 15.50mm Dia | - | - |
|

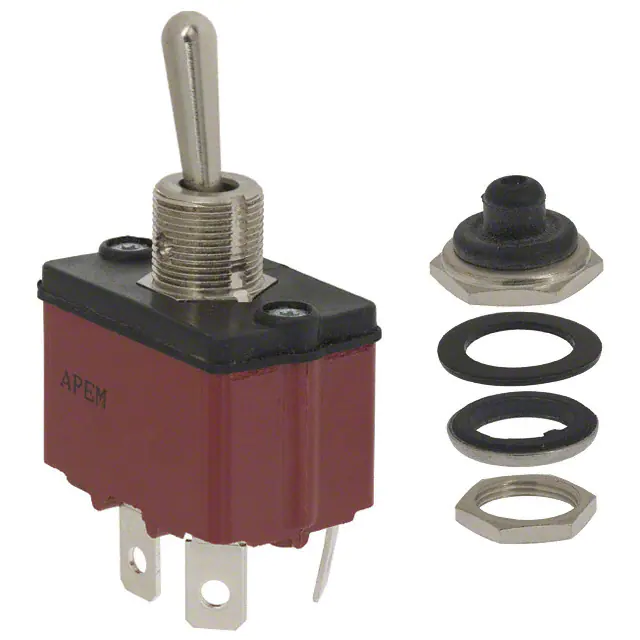

3641NF/2SWITCH TOGGLE DPST 6A 125V |
169 |
|
Datasheet |
3600NF | Bulk | Active | Panel Mount | DPST | 6A (AC), 12A (DC) | 125 V | 28 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | Sealed | -40°C ~ 85°C |
|
1TL1-2SWITCH TOGGLE SPST 15A 125V |
1,368 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|

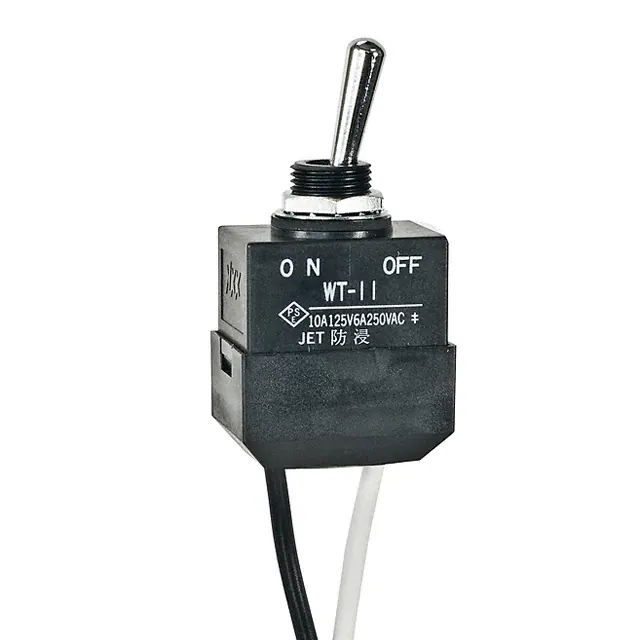

WT11LSWITCH TOGGLE SPST 10A 125V |
1,263 |
|
Datasheet |
WT | Bulk | Active | Panel Mount | SPST | 10A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Wire Leads | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 70°C |
|

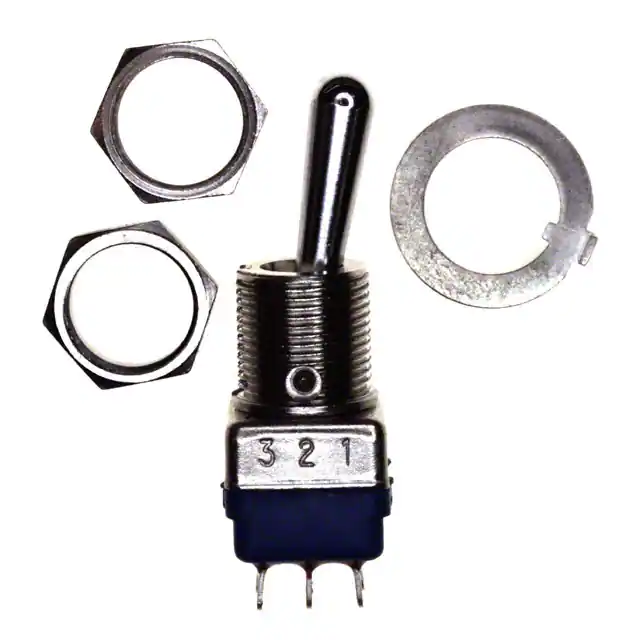

12148ASWITCH TOGGLE DPDT 4A 125V |
218 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | 4A (AC/DC) | 125 V | 30 V | On-Off-Mom | Standard Round | 17.30mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
S821SWITCH TOGGLE DPST 30A 125V |
594 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPST | 30A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 22.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
1TL1-6SWITCH TOGGLE SPST-NO 10A 125V |
219 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPST-NO | 10A (AC) | 125 V | - | Off-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
5266ABSWITCH TOGGLE 4PDT 6A 125V |
225 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
631H/22VSWITCH TOGGLE SPST 15A 250V |
391 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SPST | 15A (AC) | 250 V | - | On-Off | Locking Lever | 19.40mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
