| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A232P32YZQSWITCH TOGGLE SP3T 6A 125V |
2,031 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SP3T | 6A (AC/DC) | 125 V | 28 V | On-On-On | Flatted | 11.38mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
WT223S3D9V30BSWITCH TOGGLE DPDT 0.5VA 28V |
3,027 |
|
Datasheet |
WT | Bulk | Active | Through Hole | DPDT | 0.5VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 12.90mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Black Actuator | -30°C ~ 85°C |
|
|
A226L11YZQSWITCH TOGGLE DPDT 6A 125V |
4,041 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 28 V | On-Mom | Standard Round | 16.26mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
LT-2511-610-250SWITCH TOGGLE DPST 15A 125V |
2,125 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | DPST | 15A (AC/DC) | 125 V | 28 V | On-Off | Standard Round | 18.16mm | Illuminated | Neon, Red | 250 VAC | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|

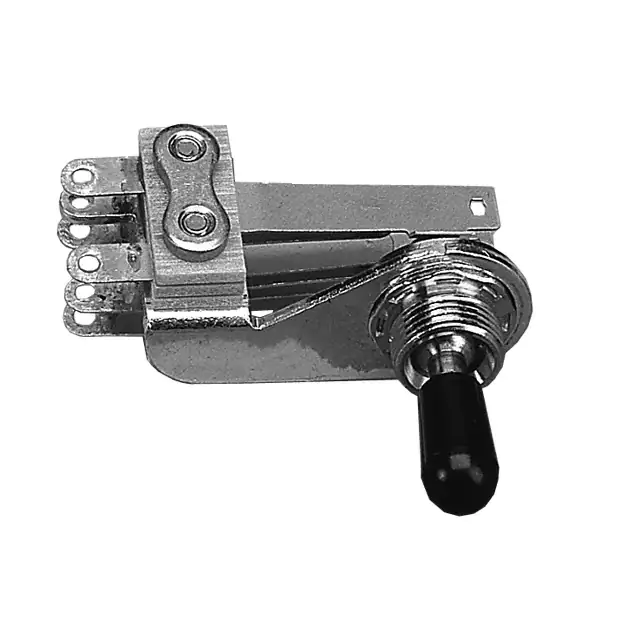

12012XSWITCH TOGGLE 3POS R/A 1C/1B |
1,504 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount, Right Angle | - | - | - | - | - | Standard Round | 22.22mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | - | - | - |
|
|
A221S2HCGSWITCH TOGGLE DPDT 6A 28V |
4,146 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | - | - | - |
|
|
5664MTHABSWITCH TOGGLE DP3T 6A 125V |
3,219 |
|
Datasheet |
5000M | Bulk | Active | Panel Mount | DP3T | 6A (AC), 4A (DC) | 125 V | 30 V | On-On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.50mm Dia | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
|
2BK65-22SWITCH TOGGLE DPST 6A 125V |
2,657 |
|
Datasheet |
110 | Bulk | Active | Panel Mount | DPST | 6A (AC/DC) | 125 V | 125 V | On-Off | Standard Round | 9.53mm | Non-Illuminated | - | - | - | Wire Leads | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
6GM5U-78SWITCH TOGGLE DPDT 15A 125V |
2,630 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5236WWADB2VX916TOGGLE SWITCH 5000 MINIATURE |
4,177 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
SWW249A7SWITCH TOGGLE DPDT 5A 125V |
3,998 |
|
Datasheet |
S | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 5A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 7.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Sealed | -20°C ~ 85°C |
|
|
SWW246A7SWITCH TOGGLE DPDT 5A 125V |
2,457 |
|
Datasheet |
S | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 5A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 7.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Sealed | -20°C ~ 85°C |
|
CT36001N000SWITCH TOGGLE SPDT 10A 125V |
3,293 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | SPDT | 10A (AC), 15A (DC) | 125 V | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | Sealed - Fully | -40°C ~ 85°C |
|
|
5646ADB2VTOGGLE SWITCH 5000 MINIATURE |
4,094 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
TL22DFAW015F-AT401PFULLY ILLUMINATED TOGGLE |
3,576 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 12 V | On-On | Flatted | 17.50mm | Illuminated | LED, Green | 2.3 VDC | IP65 - Dust Tight, Water Resistant | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 55°C |
|
|
CT39001N000SWITCH TOGGLE SPDT 10A 125V |
1,590 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | SPDT | 10A (AC), 15A (DC) | 125 V | 28 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | Sealed - Fully | -40°C ~ 85°C |
|
|
5236Y4AKBX386TOGGLE SWITCH 5000 MINIATURE |
2,671 |
|
Datasheet |
5000 | Bulk | Active | Through Hole | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 13.10mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
LT-2514-703-024SWITCH TOGGLE DPST 15A 125V |
3,586 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | DPST | 15A (AC/DC) | 125 V | 28 V | On-Off | Standard Round | 18.16mm | Illuminated | Incandescent, Green | 24 VAC/DC | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
LT-2514-730-012SWITCH TOGGLE DPST 15A 125V |
4,917 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | DPST | 15A (AC/DC) | 125 V | 28 V | On-Off | Standard Round | 18.16mm | Illuminated | Incandescent, Green | 12 VAC/DC | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5246WCDBTOGGLE SWITCH 5000 MINIATURE |
4,828 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
