| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5249YCDB17TOGGLE SWITCH 5000 MINIATURE |
4,351 |
|
Datasheet |
5000 | Bulk | Active | Through Hole | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard Round | 13.10mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
A223P41Y9AV2QSWITCH TOGGLE DPDT 6A 125V |
1,038 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 6A (AC/DC) | 125 V | 28 V | On-On | Flatted | 6.35mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A127S2CXZQSWITCH TOGGLE SPDT 6A 125V |
3,137 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | 6A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | Splash Proof | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A127T11TWGSWITCH TOGGLE SPDT 6A 125V |
3,573 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | 6A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 11.89mm | Non-Illuminated | - | - | Splash Proof | Wire Wrap | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A221P31D9AV2BSWITCH TOGGLE DPDT 0.5VA 28V |
3,456 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 0.5VA (AC/DC) | 28 V | 28 V | On-Off-On | Flatted | 11.38mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A221S1YAQSWITCH TOGGLE DPDT 6A 125V |
1,558 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle | DPDT | 6A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223P31HZBSWITCH TOGGLE DPDT 0.5VA 28V |
4,424 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | 0.5VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 11.38mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223S1D9AV2QSWITCH TOGGLE DPDT 6A 125V |
4,445 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 6A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223T11TCQSWITCH TOGGLE DPDT 6A 125V |
3,954 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 11.89mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A226P41DCQSWITCH TOGGLE DPDT 6A 125V |
1,436 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 28 V | On-Mom | Flatted | 6.35mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A226S1CXZQSWITCH TOGGLE DPDT 6A 125V |
2,318 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 28 V | On-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | Splash Proof | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A231T1TZQSWITCH TOGGLE DPDT 6A 125V |
2,283 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 28 V | On-Off-Mom | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A232L21YZ3GPSWITCH TOGGLE SP3T 6A 125V |
3,463 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SP3T | 6A (AC/DC) | 125 V | 28 V | On-On-On | Anti-Rotation | 13.97mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
A233M1D9AV2QSWITCH TOGGLE SP3T 6A 125V |
1,465 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle, Vertical | SP3T | 6A (AC/DC) | 125 V | 28 V | On-On-Mom | Standard Round | 5.08mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
A323S1YZQSWITCH TOGGLE 3PDT 6A 125V |
3,938 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 3PDT | 6A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A221S1YAV2QSWITCH TOGGLE DPDT 6A 125V |
2,294 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | 6A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A221T1TCQSWITCH TOGGLE DPDT 6A 125V |
2,657 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
5249WWATOGGLE SWITCH 5000 MINIATURE |
1,402 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|

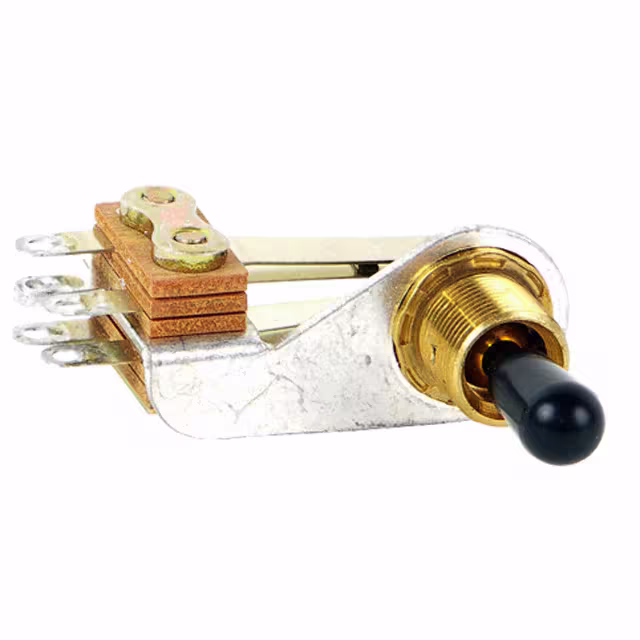

12016XSWITCH TOGGLE 3POS R/A 1B/1B |
2,042 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount, Right Angle | - | - | - | - | - | Standard Round | 22.22mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | - | - | - |
|
|
1TL91-4SWITCH TOGGLE SPST-NC 10A 125V |
1,005 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | SPST-NC | 10A (AC) | 125 V | - | On-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
