| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HKA274-78SWITCH TOGGLE 3PST 17A 125V |
1,319 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PST | 17A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|

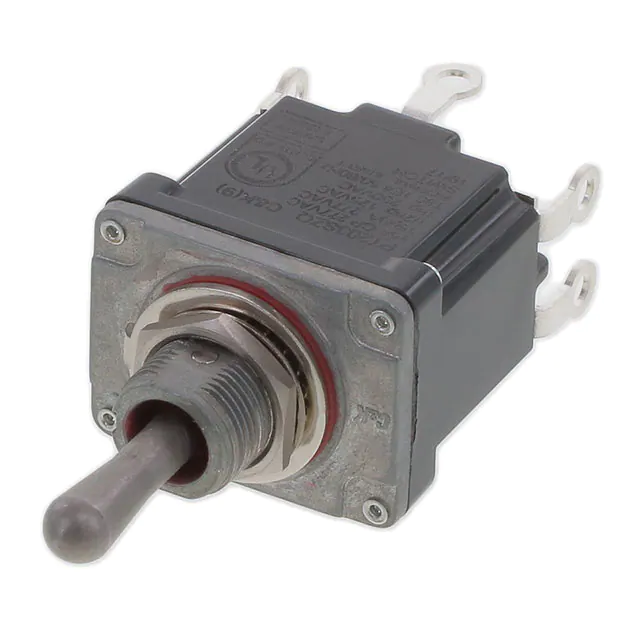

PT203SZQSWITCH TOGGLE DPDT 15A 277V |
4,145 |
|
Datasheet |
PT | Tray | Active | Panel Mount | DPDT | 15A (AC/DC) | 277 V | 28 V | On-Off-On | Standard Round | 17.20mm | Non-Illuminated | - | - | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Solder Lug | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 85°C |
|
PT208SQQSWITCH TOGGLE DPDT 10A 277V |
3,769 |
|
Datasheet |
PT | Tray | Active | Panel Mount | DPDT | 10A (AC/DC) | 277 V | 28 V | On-Mom | Standard Round | 17.20mm | Non-Illuminated | - | - | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 85°C |
|
|
M2035B2B1W01-AT401HBUSHING MOUNT MINIATURE TOGGLE |
1,409 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
HLA271-78SWITCH TOGGLE 3PDT 17A 125V |
2,741 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PDT | 17A (AC) | 125 V | - | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
HM271-73SWITCH TOGGLE 3PDT 17A 125V |
4,478 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PDT | 17A (AC) | 125 V | - | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
HMA271-73SWITCH TOGGLE 3PDT 17A 125V |
1,169 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PDT | 17A (AC) | 125 V | - | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
EK204-78SWITCH TOGGLE DPST 20A 125V |
3,409 |
|
Datasheet |
EK | Bulk | Active | Panel Mount | DPST | 20A (AC) | 125 V | - | On-Off | - | - | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | -17.8°C ~ 65.6°C |
|
|
3637NF/2ULSWITCH TOGGLE SPDT 6A 125V |
4,540 |
|
Datasheet |
3600NF | Bulk | Active | Panel Mount | SPDT | 6A (AC), 12A (DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | Sealed | -40°C ~ 85°C |
|
|
LT-2564-601-024SWITCH TOGGLE DPDT 15A 125V |
3,473 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | DPDT | 15A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 24 VAC/DC | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
IK250-73/POLYSWITCH TOGGLE 4PST 15A 125V |
2,744 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PST | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
7303P3HZQE22SWITCH TOGGLE 3PDT 5A 120V |
2,301 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Black Actuator | -30°C ~ 85°C |
|
|
6GM5M-A8SWITCH TOGGLE DPDT 15A 125V |
2,276 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 25.40mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5239WWADB3VX916TOGGLE SWITCH 5000 MINIATURE |
3,478 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1TL1-7-NHSWITCH TOGGLE SPDT 10A 125V |
1,563 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | SPDT | 10A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
A221T1TXCQSWITCH TOGGLE DPDT 6A 125V |
4,381 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | Splash Proof | PC Pin | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223P32DAV2BSWITCH TOGGLE DPDT 0.5VA 28V |
4,215 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | 0.5VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 11.38mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 90°C |
|
|
A223P42YZQSWITCH TOGGLE DPDT 6A 125V |
2,933 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 28 V | On-On | Flatted | 6.35mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 90°C |
|
|
A223S1YCGSWITCH TOGGLE DPDT 6A 125V |
1,022 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A121K12KABSWITCH TOGGLE SPDT 0.5VA 28V |
3,312 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Right Angle | SPDT | 0.5VA (AC/DC) | 28 V | 28 V | On-Off-On | Locking Lever | 15.47mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
