| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6GM5S-B8SWITCH TOGGLE DPDT 15A 125V |
2,485 |
|
Datasheet |
G | Bulk | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | Mom-Off-Mom | Standard Round | 31.75mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
LT-2586-644-012SWITCH TOGGLE DPDT 15A 125V |
2,727 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | DPDT | 15A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 18.16mm | Illuminated | Incandescent, Blue | 12 VAC/DC | - | PC Pin | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
7413P3Y9CBESWITCH TOGGLE DP3T 0.4VA 20V |
1,184 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | DP3T | 0.4VA (AC/DC) | 20 V | 20 V | On-On-Mom | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
5449WWADBX386SWITCH TOGGLE DPDT 6A 125V |
4,736 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5237ADGBX408TOGGLE SWITCH 5000 MINIATURE |
3,130 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
5239MADKX001TOGGLE SWITCH 5000 MINIATURE |
4,443 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
HL254-78SWITCH TOGGLE 3PDT 15A 125V |
3,826 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
LT-2565-543-012SWITCH TOGGLE DPDT 15A 125V |
4,801 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | DPDT | 15A (AC/DC) | 125 V | 28 V | On-Off-On | Standard Round | 18.16mm | Illuminated | Incandescent, Blue/Green | 12 VAC/DC | - | Wire Leads | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5649CDB3VX408SWITCH TOGGLE DPDT 0.4VA 20V |
3,529 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Locking Lever | 15.10mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

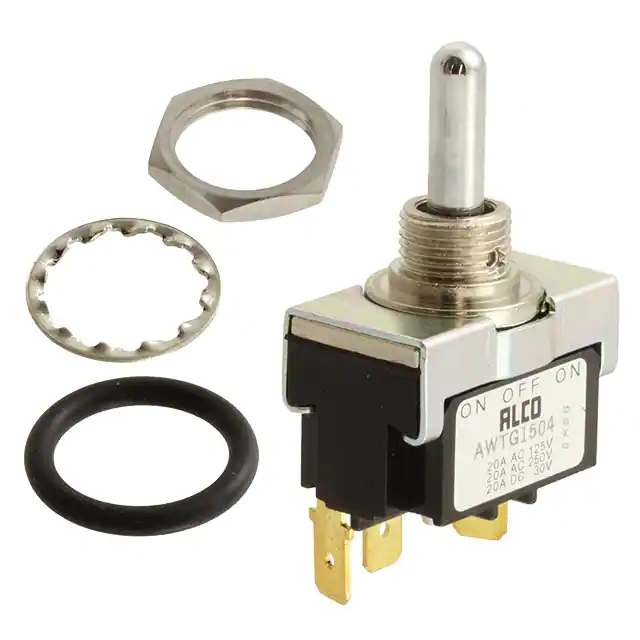

7-6437630-5SWITCH TOGGLE SPDT 20A 125V |
2,241 |
|
Datasheet |
AW | Bulk | Active | Panel Mount | SPDT | 20A (AC/DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -20°C ~ 70°C |
|
|
5249MIWRABTOGGLE SWITCH 5000 MINIATURE |
3,618 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
5249WAB16X404ULTOGGLE SWITCH 5000 MINIATURE |
2,368 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
636H/22VSWITCH TOGGLE SPDT 15A 250V |
3,988 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 250 V | - | On-On | Locking Lever | 19.40mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
|
636H/21VSWITCH TOGGLE SPDT 15A 250V |
3,837 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 250 V | - | On-On | Locking Lever | 19.40mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
|
IM250-73/POLYSWITCH TOGGLE 4PDT 15A 125V |
2,220 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-Off-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5236ADGB17X408TOGGLE SWITCH 5000 MINIATURE |
2,591 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
7415P1YZQESWITCH TOGGLE DP3T 5A 120V |
1,294 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DP3T | 5A (AC/DC) | 120 V | 28 V | Mom-On-Mom | Flat Anti-Rotation | 21.33mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

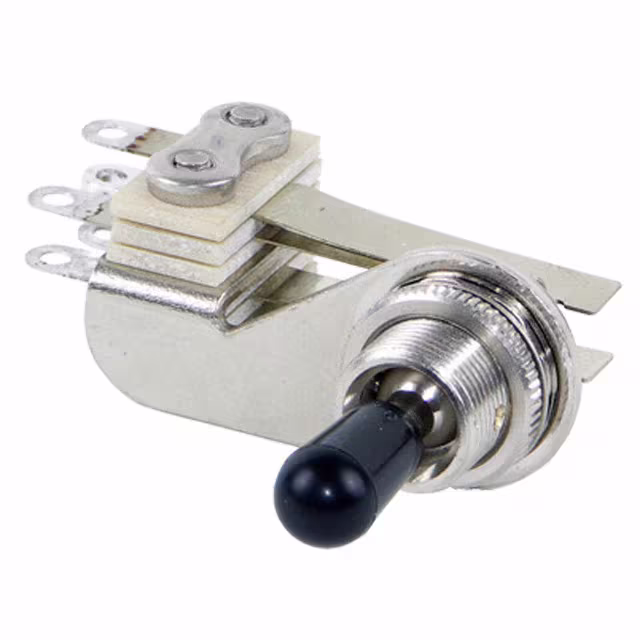

12017XSWITCH TOGGLE 3POS R/A 1B/1B |
1,698 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount, Right Angle | - | - | - | - | - | Standard Round | 22.22mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | - | - | - |
|
|
658H/2SWITCH TOGGLE 3PDT 10A 250V |
3,609 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | 3PDT | 10A (AC) | 250 V | - | On-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 0.75 | Circular - 12.20mm Dia | - | -20°C ~ 55°C |
|
00900900SWITCH TOGGLE SPDT 250A 24V |
3,951 |
|
Datasheet |
- | Bag | Active | Panel Mount | SPDT | 250A (DC) | - | 24 V | On-Mom | Standard Round | - | Non-Illuminated | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Quick Connect - 0.250" (6.3mm) | - | - | - | -40°C ~ 85°C |
