| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT-2584-501-012SWITCH TOGGLE DPDT 15A 125V |
3,430 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | DPDT | 15A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 12 VAC/DC | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
LT-2574-623-018SWITCH TOGGLE DPDT 15A 125V |
2,826 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | DPDT | 15A (AC/DC) | 125 V | 28 V | On-Off-Mom | Standard Round | 18.16mm | Illuminated | Incandescent, Amber/Green | 18 VAC/DC | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
LT-2584-511-012SWITCH TOGGLE DPDT 15A 125V |
2,840 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | DPDT | 15A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 12 VAC/DC | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
LT-2584-622-012/SCREWS BULKSWITCH TOGGLE DPDT 15A 125V |
4,721 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | DPDT | 15A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 18.16mm | Illuminated | Incandescent, Amber | 12 VAC/DC | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
LT-2584-544-012SWITCH TOGGLE DPDT 15A 125V |
2,084 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | DPDT | 15A (AC/DC) | 125 V | 28 V | Mom-Off-Mom | Standard Round | 18.16mm | Illuminated | Incandescent, Blue | 12 VAC/DC | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
LT-2574-513-012SWITCH TOGGLE DPDT 15A 125V |
3,260 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | DPDT | 15A (AC/DC) | 125 V | 28 V | On-Off-Mom | Standard Round | 18.16mm | Illuminated | Incandescent, Green/Red | 12 VAC/DC | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|

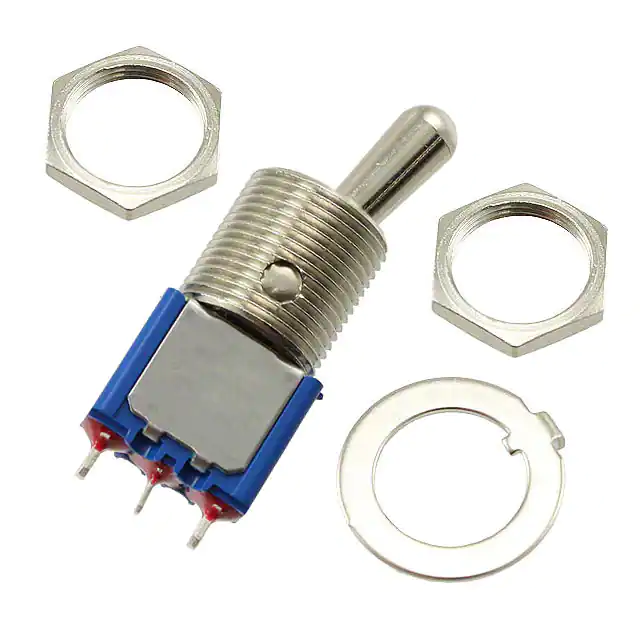

5636MAB27SWITCH TOGGLE SPDT 6A 125V |
1,048 |
|
Datasheet |
5000M | Tray | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 11.70mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
IL250-73/728-15946SWITCH TOGGLE 4PDT 15A 125V |
2,462 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5632ADGBX408TOGGLE SWITCH 5000 MINIATURE |
4,164 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
5637AGB2X408TOGGLE SWITCH 5000 MINIATURE |
4,437 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
7105K2ZQESWITCH TOGGLE SPDT 5A 120V |
4,694 |
|
Datasheet |
7000 | Bulk | Obsolete | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
639H/23VSWITCH TOGGLE |
1,160 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5652AB9SWITCH TOGGLE 3PDT 6A 125V |
2,717 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | - | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5657AB22SWITCH TOGGLE 3PDT 6A 125V |
1,106 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-Off-Mom | Standard Round | 21.30mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5244WTHADTOGGLE SWITCH 5000 MINIATURE |
4,379 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5244WTH2RADTOGGLE SWITCH 5000 MINIATURE |
1,578 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DP3T | 6A (AC), 4A (DC) | 125 V | 30 V | Mom-On-Mom | Standard Round | 13.50mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | - | -40°C ~ 85°C |
|
|
9221P3H3Z4QDSWITCH TOGGLE DPDT 10A 125V |
1,753 |
|
Datasheet |
9000 | Tray | Active | Panel Mount | DPDT | 10A (AC/DC) | 125 V | 28 V | On-On | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | - | Quick Connect - 0.187" (4.7mm) | 1/4-40 | Circular - 6.35mm Dia | - | -30°C ~ 85°C |
|
|
IK254-73SWITCH TOGGLE 4PDT 15A 125V |
3,033 |
|
Datasheet |
I | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-Off | Standard Round | 17.45mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
|
5646AGKBSWITCH TOGGLE DPDT 6A 125V |
4,906 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Matte Black Finish | -40°C ~ 85°C |
|
|
5669ABSWITCH TOGGLE 4PDT 6A 125V |
2,431 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
