Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5636ADGK0382VTOGGLE SWITCH 5000 MINIATURE |
4,059 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | - | -40°C ~ 85°C |
|
|
12146AG038TOGGLE SWITCH 12000 HIGH SPEC |
4,921 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DP3T | 4A (DC) | - | 30 V | On-On | Standard Round | 17.30mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
664103LMK2V/2TOGGLE SWITCH 6000 MIL GRADE |
3,429 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4TL1-10MSWITCH TOGGLE 4PDT 15A 125V |
1,385 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
4TL11-76SWITCH TOGGLE 4PDT 10A 125V |
3,636 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 10A (AC) | 125 V | - | Mom-On-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
4TL11-10SWITCH TOGGLE 4PDT 15A 125V |
1,024 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On-On | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
4TL1-10PSWITCH TOGGLE 4PDT 15A 125V |
1,215 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|

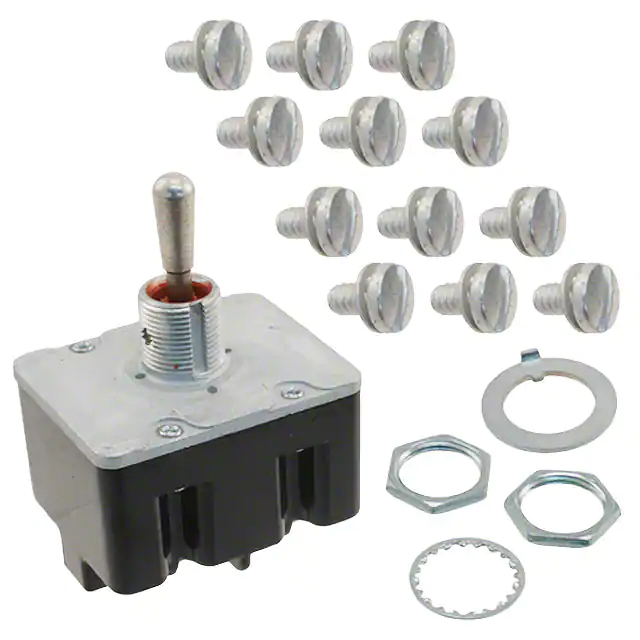

4TL1-72ESWITCH TOGGLE 4PDT 10A 125V |
2,005 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 10A (AC) | 125 V | - | Mom-On-Mom | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
2TL133-10SWITCH TOGGLE SP3T 15A 125V |
1,377 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SP3T | 15A (AC) | 125 V | - | On-On-On | Bar | 17.78mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Jumper needed to achieve triple throw | -65°C ~ 71°C |
|
|
4TL1-72SWITCH TOGGLE 4PDT 10A 125V |
3,872 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 10A (AC) | 125 V | - | Mom-On-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
12144AD2G3VTOGGLE SWITCH 12000 HIGH SPEC |
2,230 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12144AD23VX545TOGGLE SWITCH 12000 HIGH SPEC |
2,535 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3546021G002TOGGLE SWITCH 3500 IP67 SEALED |
4,983 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | 15A (DC) | - | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Solder, Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
|
12147AD2GK1VTOGGLE SWITCH 12000 HIGH SPEC |
4,311 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | 4A (DC) | - | 30 V | Mom-Off-Mom | Locking Lever | 19.38mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
11166ASWITCH TOGGLE 4PDT 4A 125V |
1,608 |
|
Datasheet |
11000 | Bulk | Active | Panel Mount | 4PDT | 4A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 11.30mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
12246AD2GK2VTOGGLE SWITCH 12000 HIGH SPEC |
2,108 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12246AD2K1VX545TOGGLE SWITCH 12000 HIGH SPEC |
4,714 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DP3T | 4A (DC) | - | 30 V | On-On | Locking Lever | 19.38mm | Non-Illuminated | - | - | - | PC Pin | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
12169ATOGGLE SWITCH 12000 HIGH SPEC |
4,247 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | 4PDT | 4A (DC) | - | 30 V | On-Off-On | Standard Round | 17.30mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
12TW1-1ESWITCH TOGGLE DPDT 5A 125V |
2,092 |
|
Datasheet |
TW | Bulk | Obsolete | Panel Mount | DPDT | 5A (AC) | 125 V | - | On-Off-On | Locking Lever | 29.46mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
3531006BD02TOGGLE SWITCH 3500 IP67 SEALED |
4,723 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | 15A (DC) | - | 28 V | On-Off | Standard Round | 25.40mm | Non-Illuminated | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
