Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
11TW1-1DSWITCH TOGGLE SPDT 5A 125V |
2,818 |
|
Datasheet |
TW | Bulk | Obsolete | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-Off-On | Locking Lever | 29.46mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
3547003B002TOGGLE SWITCH 3500 IP67 SEALED |
4,395 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | 15A (DC) | - | 28 V | Mom-Off-Mom | Flatted | 24.00mm | Non-Illuminated | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
|
12166AD212X408TOGGLE SWITCH 12000 HIGH SPEC |
4,519 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | 4P3T | 4A (DC) | - | 30 V | On-On | Standard Round | 11.80mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
|
|
3531001FG00TOGGLE SWITCH 3500 IP67 SEALED |
4,412 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | 15A (DC) | - | 28 V | On-Off | Standard Round | 20.00mm | Non-Illuminated | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
|
AML23GBE2CA04SWITCH TOGGLE SP3T 3A 125V |
3,504 |
|
Datasheet |
AML23 | Bulk | Active | Panel Mount, Snap-In | SP3T | 3A (AC), 2A (DC) | 125 V | 24 V | On-On-On | Paddle | - | Illuminated | Incandescent | 24 VAC | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Rectangular - 28.98mm x 19.05mm | Jumper needed to achieve triple throw | - |
|
102TL2218-3SWITCH TOGGLE DPDT 7.5A 115V |
3,283 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | 7.5A (AC/DC) | 115 V | 30 V | On-On | Standard Round | 17.27mm | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
31NT891-1TOGGLE SWITCH |
4,903 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4TL1-12BSWITCH TOGGLE 4PDT 15A 125V |
1,666 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
4TL1-12DSWITCH TOGGLE 4PDT 15A 125V |
4,621 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
4TL11-12KSWITCH TOGGLE 4PDT 15A 125V |
1,108 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
4TL11-12HSWITCH TOGGLE 4PDT 15A 125V |
2,678 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
4TL11-82GSWITCH TOGGLE 4PDT 10A 125V |
1,066 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 10A (AC) | 125 V | - | On-Mom | Locking Lever | 26.67mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | - |
|
|
12146-12X778SWITCH TOGGLE DPDT 4A 125V |
4,297 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DPDT | - | - | - | On-On | Standard Round | 17.30mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.50mm Dia | Epoxy Sealed Terminals, Front Panel Sealing | -40°C ~ 85°C |
|
|
2TL28-1SWITCH TOGGLE DPDT 15A 125V |
1,285 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-Off-On | Flatted | 25.40mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
3546001GD02TOGGLE SWITCH 3500 IP67 SEALED |
4,538 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | 15A (DC) | - | 28 V | On-On | Standard Round | 20.00mm | Non-Illuminated | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.20mm Dia | - | -40°C ~ 85°C |
|
|
SMFF01SWITCH TOGGLE |
1,835 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
11TW48-21SWITCH TOGGLE SPST 5A 125V |
2,562 |
|
Datasheet |
TW | Bulk | Obsolete | Panel Mount | SPST | 5A (AC) | 125 V | - | On-Off | Standard Round | 22.22mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
4TL11-3DSWITCH TOGGLE 4PDT 15A 125V |
2,304 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|

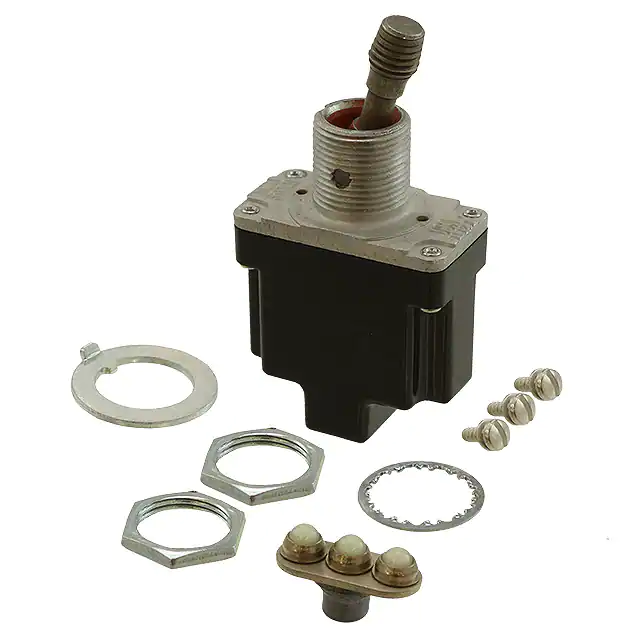

1TL133-3SWITCH TOGGLE SPDT 15A 125V |
2,833 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | On-On | Bar | 20.32mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | -65°C ~ 71°C |
|
|
12146AD2G038X408TOGGLE SWITCH 12000 HIGH SPEC |
2,255 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | DP3T | 4A (DC) | - | 30 V | On-On | Standard Round | 17.30mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.00mm Dia | - | -40°C ~ 85°C |
