Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
28AT18-T-FSWITCH TOGGLE 8PDT 10A 30V |
3,431 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 8PDT | 10A (DC) | - | 30 V | On-On | Locking Lever | 29.97mm | Non-Illuminated | - | - | - | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | - |
|
|
66AT11-5SWITCH TOGGLE 6PDT 7A 115V |
1,960 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 6PDT | 7A (AC/DC) | 115 V | 28 V | On-Off-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | - | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -55°C ~ 85°C |
|
|
66AT300-3FSWITCH TOGGLE 6PDT 7A 115V |
2,504 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 6PDT | 7A (AC/DC) | 115 V | 28 V | On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | - | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -55°C ~ 85°C |
|
|
22AT72-S-ESWITCH TOGGLE 8PDT 5A 250V |
1,644 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 8PDT | 5A (AC/DC) | 250 V | 30 V | On-On | Locking Lever | 29.97mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | - |
|
|
66AT22-5NSWITCH TOGGLE 6PDT 7A 115V |
3,705 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 6PDT | 7A (AC/DC) | 115 V | 28 V | On-Off-Mom | Locking Lever | 30.00mm | Non-Illuminated | - | - | - | Quick Connect - 0.058" (Round) | 15/32-32 | Circular - 12.40mm Dia | - | -55°C ~ 85°C |
|
|
27ET49-T-KSWITCH TOGGLE DPDT 7A 28V |
4,596 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPDT | 7A (DC) | - | 28 V | Mom-On-Mom | Locking Lever | 26.92mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | Magnetic Hold | -65°C ~ 71°C |
|
|
25ET63-6-FSWITCH TOGGLE SPDT 4A 28V |
2,865 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | SPDT | 4A (DC) | - | 28 V | On-Mom | Locking Lever | 25.90mm | Non-Illuminated | - | - | Environment Sealed | Wire Leads | 15/32-32 | Circular - 12.40mm Dia | Magnetic Hold | -65°C ~ 71°C |
|
|
68AT22-5SWITCH TOGGLE 8PDT 7A 115V |
3,539 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 8PDT | 7A (AC/DC) | 115 V | 28 V | On-Off-Mom | Standard Round | 17.27mm | Non-Illuminated | - | - | - | Quick Connect - 0.058" (Round) | 15/32-32 | Circular - 12.40mm Dia | - | -55°C ~ 85°C |
|
|
68AT300-7LSWITCH TOGGLE 8PDT 7A 115V |
4,097 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 8PDT | 7A (AC/DC) | 115 V | 28 V | Mom-Off-Mom | Locking Lever | 26.67mm | Non-Illuminated | - | - | - | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -55°C ~ 85°C |
|
|
31TW3-7SWITCH TOGGLE SPDT 0.1A 30V |
4,872 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | SPDT | 100mA (DC) | - | 30 V | Mom-Off-Mom | - | - | Non-Illuminated | - | - | Environment Sealed | IWTS | - | - | - | -65°C ~ 71°C |
|
|
31TW3-5SWITCH TOGGLE SPDT 0.1A 30V |
3,068 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | SPDT | 100mA (DC) | - | 30 V | On-Off-Mom | - | - | Non-Illuminated | - | - | Environment Sealed | IWTS | - | - | - | -65°C ~ 71°C |
|
|
31TW4-205SWITCH TOGGLE SPDT 0.1A 30V |
3,726 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | SPDT | 100mA (DC) | - | 30 V | On-Off-Mom | - | - | Non-Illuminated | - | - | Environment Sealed | IWTS | - | - | - | -65°C ~ 71°C |
|
|
31TW4-207SWITCH TOGGLE SPDT 0.1A 30V |
4,426 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | SPDT | 100mA (DC) | - | 30 V | Mom-Off-Mom | - | - | Non-Illuminated | - | - | Environment Sealed | IWTS | - | - | - | -65°C ~ 71°C |
|
25ET61-SSWITCH TOGGLE SPDT 4A 28V |
1,954 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | SPDT | 4A (DC) | - | 28 V | On-Mom | Standard Round | 17.53mm | Non-Illuminated | - | - | Environment Sealed | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Magnetic Hold | -65°C ~ 71°C |
|

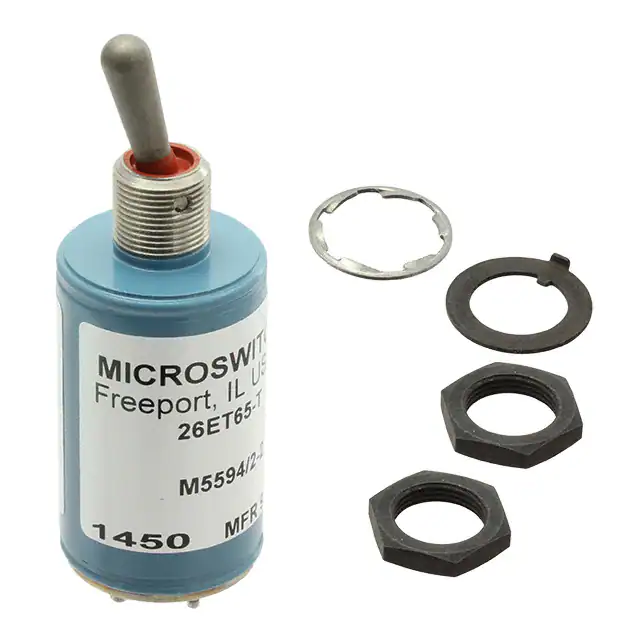

26ET65-TSWITCH TOGGLE DPDT 4A 28V |
3,491 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | 4A (DC) | - | 28 V | On-Mom | Standard Round | 17.53mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | Magnetic Hold | -65°C ~ 71°C |
|
|
27ET1-6-ESWITCH TOGGLE DPDT 7A 28V |
2,593 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPDT | 7A (DC) | - | 28 V | Mom-On-Mom | Locking Lever | 26.92mm | Non-Illuminated | - | - | Environment Sealed | Wire Leads | 15/32-32 | Circular - 12.40mm Dia | Magnetic Hold | -65°C ~ 71°C |
|
|
27ET71-T-NSWITCH TOGGLE DPDT 1A 28V |
1,491 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPDT | 1A (DC) | - | 28 V | Mom-On-Mom | Locking Lever | 26.92mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | Magnetic Hold | -65°C ~ 71°C |
|
|
5AT2SWITCH TOGGLE DPDT 1A 115V |
2,678 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | 1A (AC), 25A (DC) | 115 V | 28 V | On-On | Standard Round | - | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | - | - |
|
|
68AT300-3SWITCH TOGGLE 8PDT 7A 115V |
3,917 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 8PDT | 7A (AC/DC) | 115 V | 28 V | On-On | Standard Round | 17.27mm | Non-Illuminated | - | - | - | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -55°C ~ 85°C |
|
|
68AT300-3DSWITCH TOGGLE 8PDT 7A 115V |
2,554 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 8PDT | 7A (AC/DC) | 115 V | 28 V | On-On | Locking Lever | 26.67mm | Non-Illuminated | - | - | - | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -55°C ~ 85°C |
