Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25ET61-6SWITCH TOGGLE SPDT 4A 28V |
4,017 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | SPDT | 4A (DC) | - | 28 V | On-Mom | Standard Round | 17.53mm | Non-Illuminated | - | - | Environment Sealed | Wire Leads | 15/32-32 | Circular - 12.40mm Dia | Magnetic Hold | -65°C ~ 71°C |
|
|
66AT65-5KSWITCH TOGGLE 6PDT 7A 115V |
3,423 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 6PDT | 7A (AC/DC) | 115 V | 28 V | On-Off-Mom | Locking Lever | 29.67mm | Non-Illuminated | - | - | - | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -55°C ~ 85°C |
|
|
232AT90SWITCH TOGGLE SPDT 0.5A 28V |
4,065 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | SPDT | 500mA (DC) | - | 28 V | On-On | Standard Round | 17.53mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 12.40mm Dia | - | - |
|
|
15AT14SWITCH TOGGLE 4PDT 10A 125V |
1,059 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 4PDT | 10A (AC) | 125 V | - | On-Mom | Standard Round | 22.35mm | Non-Illuminated | - | - | - | Screw Terminal | - | - | - | - |
|
3TL32-3DSWITCH TOGGLE 3PDT 15A 125V |
4,097 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 3PDT | 15A (AC) | 125 V | - | On-On | Locking Lever | 38.86mm | Illuminated | Incandescent, Red | 28 VAC | Environment Sealed | Wire Leads | 3/4-20 | - | - | -65°C ~ 71°C |
|
27ET61-TSWITCH TOGGLE DPDT 7A 28V |
4,310 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | 7A (DC) | - | 28 V | Mom-On-Mom | Standard Round | 17.53mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | Magnetic Hold | -65°C ~ 71°C |
|
|
29ET29-6SWITCH TOGGLE |
4,258 |
|
Datasheet |
ET | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
66AT300-7ESWITCH TOGGLE 6PDT 7A 115V |
3,361 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 6PDT | 7A (AC/DC) | 115 V | 28 V | Mom-Off-Mom | Locking Lever | 26.67mm | Non-Illuminated | - | - | - | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -55°C ~ 85°C |
|
|
25ET35-TSWITCH TOGGLE SPDT 4A 28V |
3,030 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | SPDT | 4A (DC) | - | 28 V | On-Mom | Standard Round | 17.53mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | Magnetic Hold | -65°C ~ 71°C |
|
|
17AT7SWITCH TOGGLE 8PDT 15A 125V |
4,068 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 8PDT | 15A (AC) | 125 V | - | On-On | Standard Round | 22.35mm | Non-Illuminated | - | - | - | Screw Terminal | - | - | - | - |
|
|
4TL838-3DSWITCH TOGGLE 4PDT |
2,253 |
|
Datasheet |
TL | Bulk | Obsolete | - | 4PDT | - | - | - | On-On | Locking Lever | 49.53mm | Non-Illuminated | - | - | Environment Sealed | - | 3/4-20 | - | - | -15°C ~ 55°C |
|

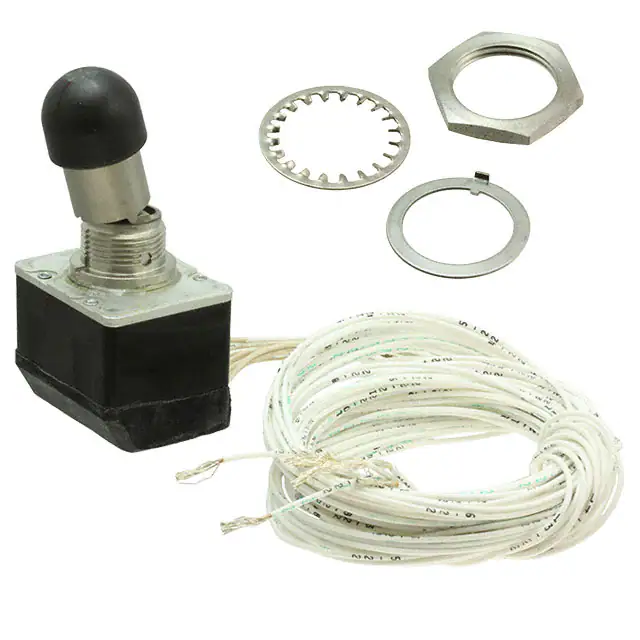

4TL32-3DSWITCH TOGGLE 4PDT 15A 125V |
2,061 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | 15A (AC) | 125 V | - | On-On | Locking Lever | 38.86mm | Illuminated | Incandescent, Red | 28 VAC | Environment Sealed | Wire Leads | 3/4-20 | - | - | -65°C ~ 71°C |
|
|
66AT315-1SWITCH TOGGLE 6PDT 1A 125V |
2,545 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 6PDT | 1A (AC) | 125 V | - | On-Off-On | Standard Round | 17.27mm | Non-Illuminated | - | - | - | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | - | -55°C ~ 85°C |
|
|
68AT34-1ASWITCH TOGGLE 8PDT 1A 30V |
1,542 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 8PDT | 1A (DC) | - | 30 V | On-Off-On | Locking Lever | 29.97mm | Non-Illuminated | - | - | - | Quick Connect - 0.058" (Round) | 15/32-32 | Circular - 12.40mm Dia | - | - |
|
|
27ET2-6-PSWITCH TOGGLE DPDT 7A 28V |
3,075 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPDT | 7A (DC) | - | 28 V | Mom-On-Mom | Locking Lever | 26.92mm | Non-Illuminated | - | - | Environment Sealed | Wire Leads | 15/32-32 | Circular - 12.40mm Dia | Magnetic Hold | -65°C ~ 71°C |
|
|
27ET61-T-MSWITCH TOGGLE DPDT 7A 28V |
1,749 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | 7A (DC) | - | 28 V | Mom-On-Mom | Locking Lever | 26.92mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | Magnetic Hold | -65°C ~ 71°C |
|
|
25ET1-6SWITCH TOGGLE SPDT 4A 28V |
2,519 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | SPDT | 4A (DC) | - | 28 V | On-Mom | Standard Round | 17.53mm | Non-Illuminated | - | - | Environment Sealed | Wire Leads | 15/32-32 | Circular - 12.40mm Dia | Magnetic Hold | -65°C ~ 71°C |
|
|
27ET70-TSWITCH TOGGLE DPDT 7A 28V |
2,352 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | 7A (DC) | - | 28 V | Mom-On-Mom | - | 23.62mm | Non-Illuminated | - | - | Environment Sealed | Solder Turret | 15/32-32 | Circular - 12.40mm Dia | Magnetic Hold | -65°C ~ 71°C |
|
|
112TW39-3DX18SWITCH TOGGLE DPDT 5A 115V |
3,202 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 115 V | 28 V | On-On | Standard Round | - | Non-Illuminated | - | - | Environment Sealed | IWTS | 15/32-32 | Circular - 12.40mm Dia | - | - |
|
|
62AT811-31ESWITCH TOGGLE DPDT |
3,955 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | - | - | - | On-On | Locking Lever | - | Non-Illuminated | - | - | - | - | - | - | - | - |
