Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2T12S4A5G40SWITCH TOGGLE SPDT 0.4VA 28V |
3,918 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T13S4A5G40SWITCH TOGGLE SPDT 0.4VA 28V |
1,805 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 7.62mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T12SA5G03SWITCH TOGGLE SPDT 0.4VA 28V |
4,271 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
M2T13SA5G03SWITCH TOGGLE SPDT 0.4VA 28V |
2,938 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
M2T12SA5G30SWITCH TOGGLE SPDT 0.4VA 28V |
4,879 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 12.70mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
S732SWITCH TOGGLE DPDT 50A 125V |
2,584 |
|
Datasheet |
S | Bulk | Obsolete | Panel Mount | DPDT | 50A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 22.00mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
T211STKCQESWITCH TOGGLE SP3T 2A 120V |
1,280 |
|
Datasheet |
T | Bulk | Obsolete | Panel Mount | SP3T | 2A (AC/DC) | 120 V | 28 V | On-On-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
ET24MD1AVBESWITCH TOGGLE SP3T 0.4VA 20V |
1,648 |
|
Datasheet |
ET | Tray | Obsolete | Through Hole, Right Angle, Vertical | SP3T | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Standard Round | 6.10mm | Non-Illuminated | - | - | IP57 - Dust Protected, Waterproof | PC Pin | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
7107K2ZQESWITCH TOGGLE SPDT 5A 120V |
3,404 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-Mom | Locking Lever | 17.88mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
GT12MAKESWITCH TOGGLE SPST 0.4VA 20V |
3,074 |
|
Datasheet |
GT | Bulk | Obsolete | Through Hole, Right Angle | SPST | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard Round | 3.81mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
GT12MCKESWITCH TOGGLE SPST 0.4VA 20V |
4,158 |
|
Datasheet |
GT | Bulk | Obsolete | Through Hole | SPST | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard Round | 3.81mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2022LL3W01SWITCH TOGGLE DPDT 6A 125V |
2,569 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
LT-1564-623-024SWITCH TOGGLE SPDT 15A 125V |
3,370 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPDT | 15A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 18.16mm | Illuminated | Incandescent, Amber/Green | 24 VAC | - | Solder Lug | 15/32-32 | Circular - 12.70mm Dia | - | 0°C ~ 85°C |
|
TL22DNAW016FSWITCH TOGGLE DPDT 6A 125V |
4,146 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC/DC) | 125 V | 12 V | On-On | Flatted | 17.50mm | Illuminated | LED, Green | 3.5 VDC | IP65 - Dust Tight, Water Resistant | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
P2011BP/USWITCH TOGGLE SPST 10A 125V |
1,622 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | SPST | 10A (AC) | 125 V | - | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 85°C |
|

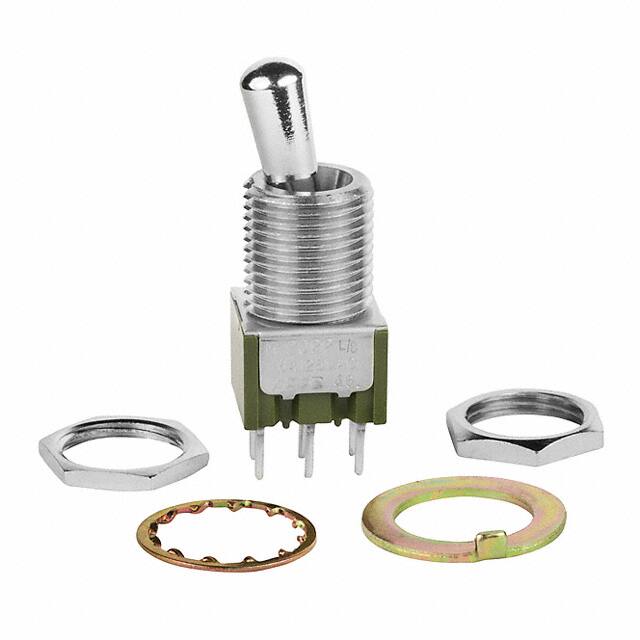

M2022BB1W03SWITCH TOGGLE DPDT 6A 125V |
2,670 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
CLS-TC11A12253RSWITCH TOGGLE SPST 20A 12V |
3,483 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount | SPST | 20A (DC) | - | 12 V | On-Off | Flatted | 23.20mm | Illuminated | LED, Red | 12 VDC | - | Quick Connect - 0.250" (6.3mm) | - | Circular - 12.00mm Dia | - | - |
|
CLS-TC11A12252YSWITCH TOGGLE SPST 20A 12V |
4,408 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount | SPST | 20A (DC) | - | 12 V | On-Off | Flatted | 26.27mm | Illuminated | LED, Yellow | 12 VDC | - | Quick Connect - 0.250" (6.3mm) | - | Circular - 12.00mm Dia | - | - |
|
CLS-TC11A12252RSWITCH TOGGLE SPST 20A 12V |
2,589 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount | SPST | 20A (DC) | - | 12 V | On-Off | Flatted | 26.27mm | Illuminated | LED, Red | 12 VDC | - | Quick Connect - 0.250" (6.3mm) | - | Circular - 12.00mm Dia | - | - |
|
CLS-TC11A12252GSWITCH TOGGLE SPST 20A 12V |
2,722 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount | SPST | 20A (DC) | - | 12 V | On-Off | Flatted | 26.27mm | Illuminated | LED, Green | 12 VDC | - | Quick Connect - 0.250" (6.3mm) | - | Circular - 12.00mm Dia | - | - |
