Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TT41NGRA7T1/4SWITCH TOGGLE 4PDT 3A 125V |
1,829 |
|
Datasheet |
TT | Bulk | Obsolete | Panel Mount, Right Angle | 4PDT | 3A (AC/DC) | 125 V | 28 V | On-On | Flatted | 11.61mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.40mm Dia | - | -30°C ~ 85°C |
|
|
E2011SWITCH TOGGLE SPST 0.4VA 28V |
3,511 |
|
Datasheet |
E | Bulk | Obsolete | Panel Mount | SPST | 0.4VA (AC/DC) | 28 V | 28 V | On-Off | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.50mm Dia | - | -10°C ~ 70°C |
|

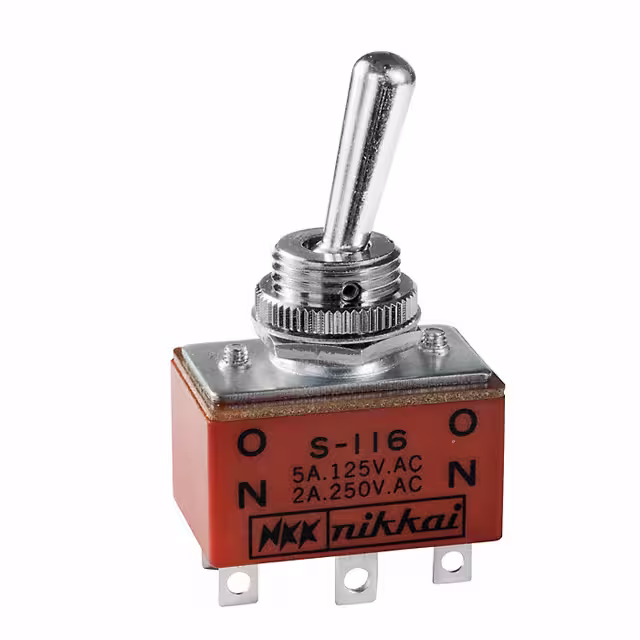

S116SWITCH TOGGLE DPDT 5A 125V |
3,069 |
|
Datasheet |
S | Bulk | Obsolete | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 18.00mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
M2018B2B3G01SWITCH TOGGLE SPDT 0.4VA 28V |
3,813 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | Mom-Off-Mom | Standard Round | 17.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2027E2A1W01SWITCH TOGGLE SP3T 6A 125V |
4,858 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | 6A (AC), 3A (DC) | 125 V | 30 V | On-On-Mom | Flatted | 6.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
P2022SWITCH TOGGLE DPDT 10A 125V |
3,852 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | DPDT | 10A (AC) | 125 V | - | On-On | Standard Round with Cap | 13.00mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.35mm Dia | White Cap | -10°C ~ 85°C |
|
|
M2022LL1W01-ASWITCH TOGGLE DPDT 6A 125V |
3,687 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Black Cap | -30°C ~ 85°C |
|
M2023SS1W08SWITCH TOGGLE DPDT 6A 125V |
1,880 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 10.50mm | Non-Illuminated | - | - | - | Wire Wrap | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
P2021BSWITCH TOGGLE DPST 10A 125V |
1,339 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | DPST | 10A (AC) | 125 V | - | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 85°C |
|
M2032E2S1W02SWITCH TOGGLE 3PDT 6A 125V |
4,057 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Flatted | 6.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.062" (1.5mm) | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

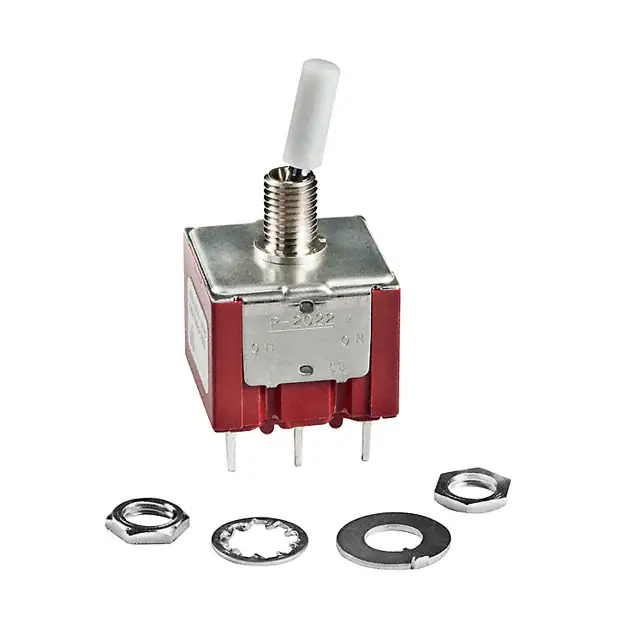

P2022PSWITCH TOGGLE DPDT 10A 125V |
3,266 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | DPDT | 10A (AC) | 125 V | - | On-On | Standard Round with Cap | 13.00mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.35mm Dia | White Cap | -10°C ~ 85°C |
|

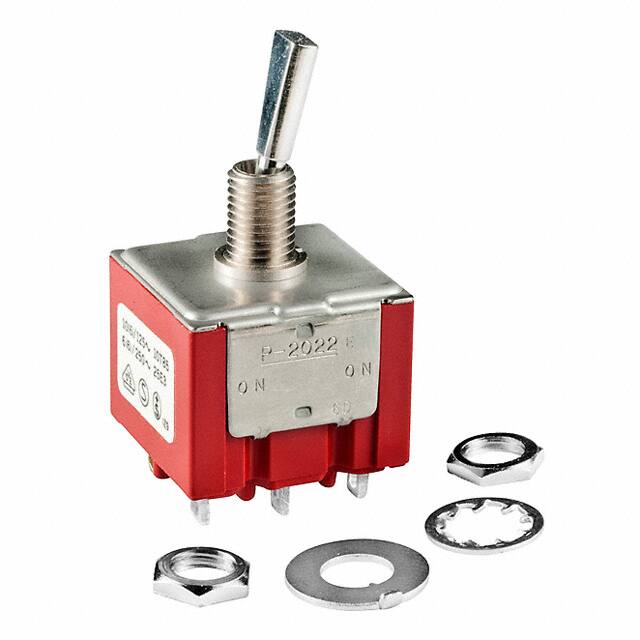

P2022ESWITCH TOGGLE DPDT 10A 125V |
3,159 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | DPDT | 10A (AC) | 125 V | - | On-On | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.35mm Dia | - | -10°C ~ 85°C |
|

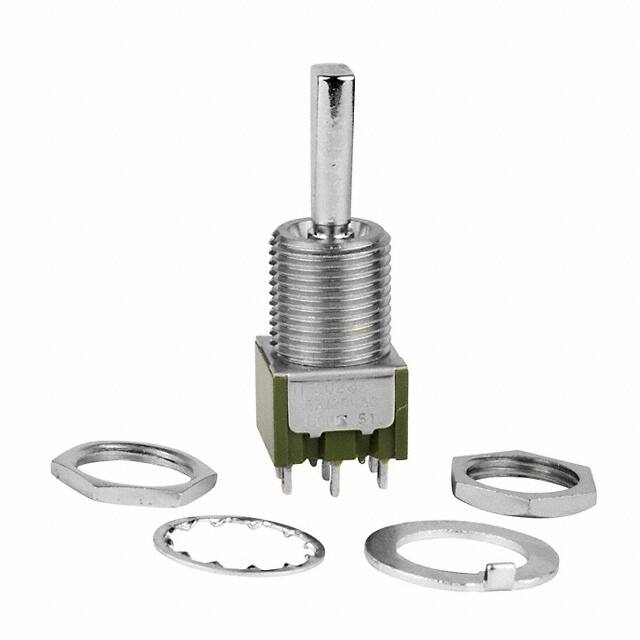

M2028RB1W01SWITCH TOGGLE DPDT 6A 125V |
4,997 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Flatted | 15.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
P2022BSWITCH TOGGLE DPDT 10A 125V |
2,512 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | DPDT | 10A (AC) | 125 V | - | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 85°C |
|
M2023BB1G02SWITCH TOGGLE DPDT 0.4VA 28V |
4,566 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard Round | 11.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.062" (1.5mm) | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
P2011BSWITCH TOGGLE SPST 10A 125V |
2,296 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | SPST | 10A (AC) | 125 V | - | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 85°C |
|
M2012E4S1G40SWITCH TOGGLE SPDT 0.4VA 28V |
4,781 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Flatted | 21.30mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E2023P-BBSWITCH TOGGLE DPDT 3A 125V |
4,017 |
|
Datasheet |
E | Bulk | Obsolete | Panel Mount | DPDT | 3A (AC) | 125 V | - | On-Off-On | Standard Round with Cap | 12.00mm | Non-Illuminated | - | - | - | PC Pin | M6 x 0.75 | Circular - 6.50mm Dia | White Cap | -10°C ~ 70°C |
|
P2011BPSWITCH TOGGLE SPST 10A 125V |
4,743 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | SPST | 10A (AC) | 125 V | - | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 85°C |
|
P2011ESWITCH TOGGLE SPST 10A 125V |
2,663 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | SPST | 10A (AC) | 125 V | - | On-Off | Flatted | 11.40mm | Non-Illuminated | - | - | - | Solder Lug | M6 x 0.75 | Circular - 6.35mm Dia | - | -10°C ~ 85°C |
